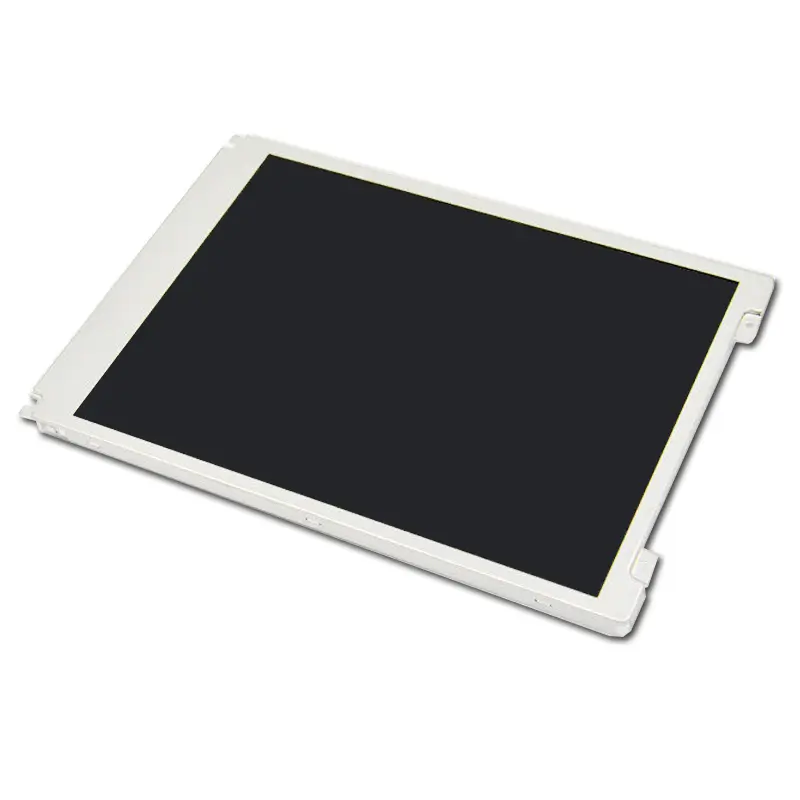

AUO G084SN05 V9 AUO Wide Temperature LCD 8.4 inch, 800×600, Industrial Grade

Artikelnummer: DS50137
Größe:

Modellnummer

G084SN05 V9

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~80℃

Helligkeit (cd/m²):

450

Touchscreen-Unterstützung:

Anzeige Typ:

G084SN05 V9, AUO Original A-grade display, -30~85 ℃ wide operation temperature, 50K long life span, rugged lcd display for industrial, medical, military

Preisanfrage für Volumen







    Beschreibung

    G084SN05 V9General Desription

    The AUO G084SN05 V9 is an 8.4-inch a-Si TFT-LCD module with 800×600 SVGA resolution and 119 PPI. It features a 450 cd/m² brightness, 600:1 contrast ratio, and TN display mode. With antiglare 3H hard coating, 2-string WLED backlight (50K hours), and LVDS 20-pin interface, it supports 60Hz operation and up to 240Hz via MEMC. Weighing 250g, it’s designed for industrial use, operating and storing at -30~85 °C, and comes without a touch screen.



    Key Advantages for Displaysell

    Reliable AUO Original Panel: Industrial-grade with -30~85℃ wide temperature range for stable operation in all scenarios.
    13-Year AUO Distributorship: Competitive pricing + in-house R&D team offering professional TFT full solutions.
    Stock Availability: Immediate shipment to solve urgent delivery needs.

    G084SN05 V9 Product Specifications

    Diagonale Größe 8.4"(Diagonal)
    Pixel Zahl 800×600 Pixels
    Luminance 450
    Module Size 203(W)×142.5(H) ×8(D)
    Aktiver Bereich 170.4(W)×127.8(H)
    Viewing Direction 6 O'CLOCK
    View Angle(U/D/R/L) 80/80/80/80
    Schnittstelle LVDS
    Kontrastverhältnis 600
    Betriebstemperatur -30~85℃
    Lagertemperatur -30~85℃
    LED-Lebensdauer 50K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3v
    Anzeige Typ Color TFT

    AUO LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G084SN05 V9 8.4-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G084SN05 V9?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G084SN05 V9?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G084SN05 V9 compare with the IVO M084GNS1 R1?

    Both catalog listings show 8.4 inches, 800 × 600 and LVDS. The catalog lists 450 cd/m² for the AUO panel and 350 cd/m² for the IVO panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare IVO M084GNS1 R1

    Is the AUO G084SN05 V9 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G084SN05 V9

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~80℃

    Helligkeit (cd/m²):

    450

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
