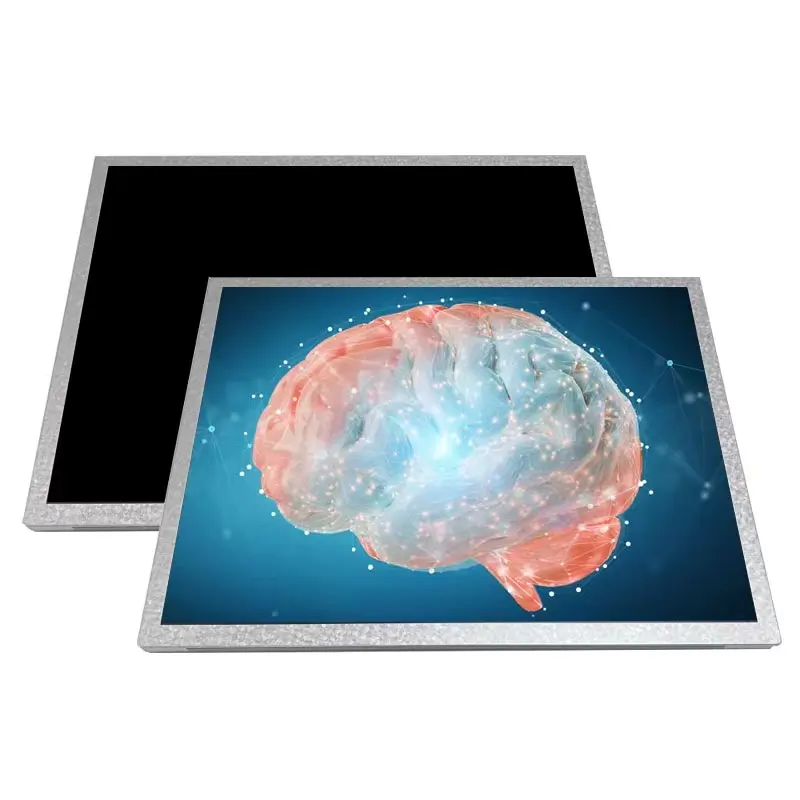

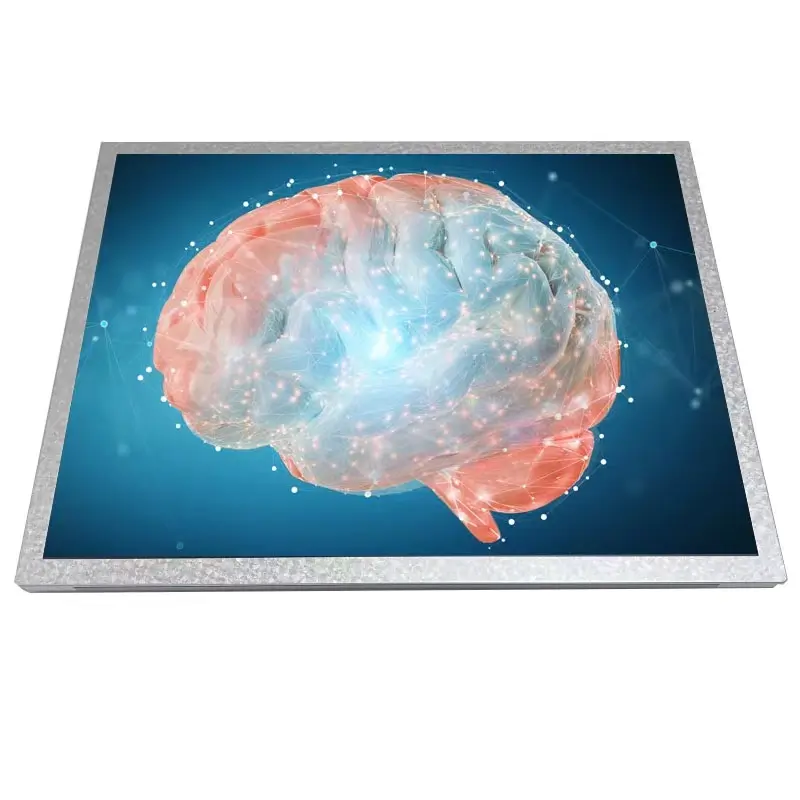

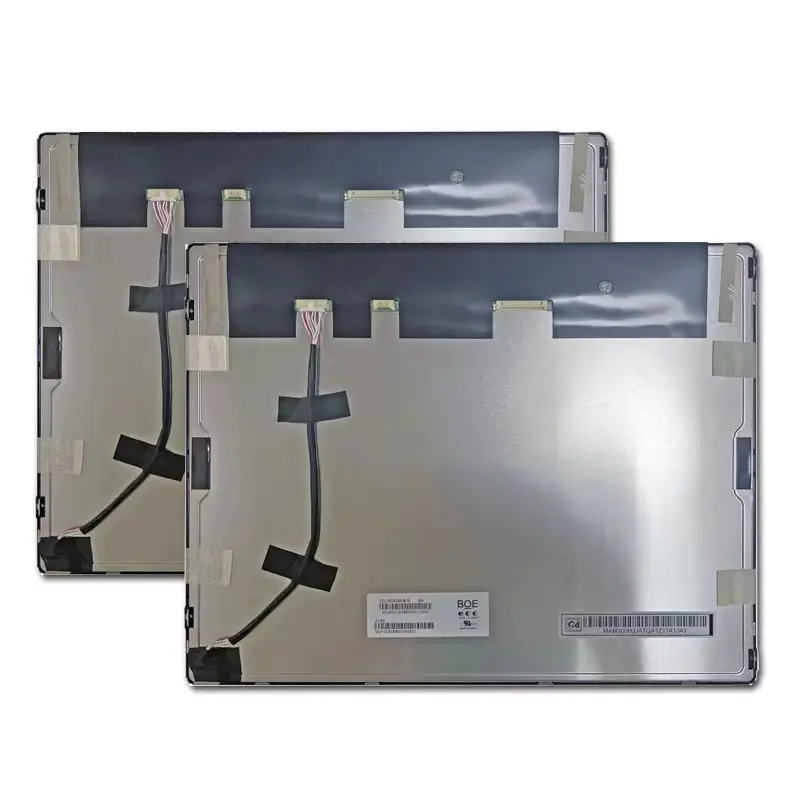

BOE DV150X0M-N16 15 inch High-Brightness IPS LCD 600cd/m² -30°C~80°C Durability LVDS Interface

Artikelnummer: DS50272
Größe:

Modellnummer

V150X0M-N16

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

BOE dv150x0m-n16 600cd/m² High-Brightness -30°C to 80°C Sun-Readable Display for Harsh Industrial & Outdoor Use.

Preisanfrage für Volumen







    Beschreibung

    DV150X0M-N16 General Desription

    The BOE DV150X0M-N16 is a robust 15-inch color LCD display engineered for extreme environments. Boasting an exceptional 600cd/m² brightness, it ensures crisp visibility even under direct sunlight. The IPS panel delivers 89° ultra-wide viewing angles, ideal for multi-user industrial and public applications. Built to endure harsh conditions, it operates reliably from -20°C to 70°C and withstands storage temperatures from -30°C to 80°C. With a 50,000-hour LED lifespan and LVDS interface, it ensures stable performance in high-interference settings. The slim 10.4mm profile (326.5×253.5mm) and 1000:1 contrast ratio make it perfect for space-constrained installations requiring rugged reliability without touchscreen complexity.



    Application & Performanc

    Designed for outdoor digital signage, industrial automation, and transportation systems, the DV150X0M-N16 excels in challenging environments. Its 600cd/m² brightness combats glare in solar-powered kiosks or desert installations, while the expanded -30°C~80°C storage range ensures resilience in Arctic logistics or tropical sites. The LVDS interface guarantees noise-resistant signal transmission for CNC machines, EV charging stations, and railway dashboards. With no touchscreen, it minimizes failure risks in dusty factories or wet marine equipment. The IPS panel maintains color accuracy in multi-angle medical imaging or collaborative control rooms, making it a versatile solution for mission-critical operations.

    15.0" Product Specifications

    Diagonal Size11.8 15.0 inch
    Pixel Zahl 1024×768
    Luminance 600
    Module Size 326.5×253.5×10.4
    Aktiver Bereich 304.128×228.096
    Viewing Direction IPS
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle LVDS
    Kontrastverhältnis 1000:1
    Betriebstemperatur -20 ~ 70 °C
    Lagertemperatur -30 ~ 80 °C
    LED-Lebensdauer 50000
    Stromversorgung 3.3V
    Touchscreen-Unterstützung Ohne
    Anzeige Typ Color TFT



    BOE LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE DV150X0M-N16 15-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE DV150X0M-N16?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV150X0M-N16?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the BOE DV150X0M-N16?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the BOE DV150X0M-N16 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    V150X0M-N16

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
