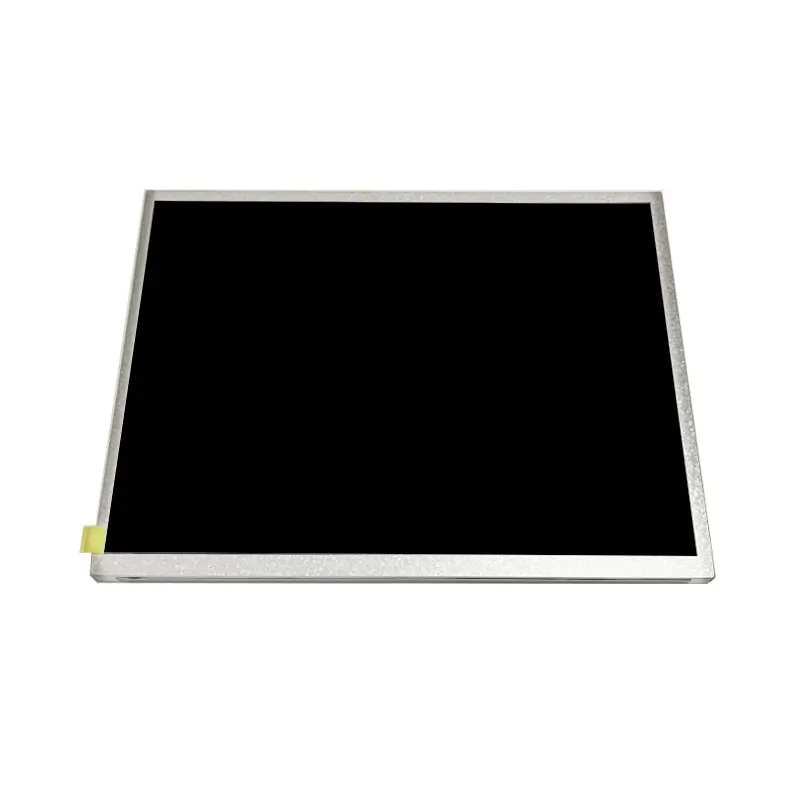

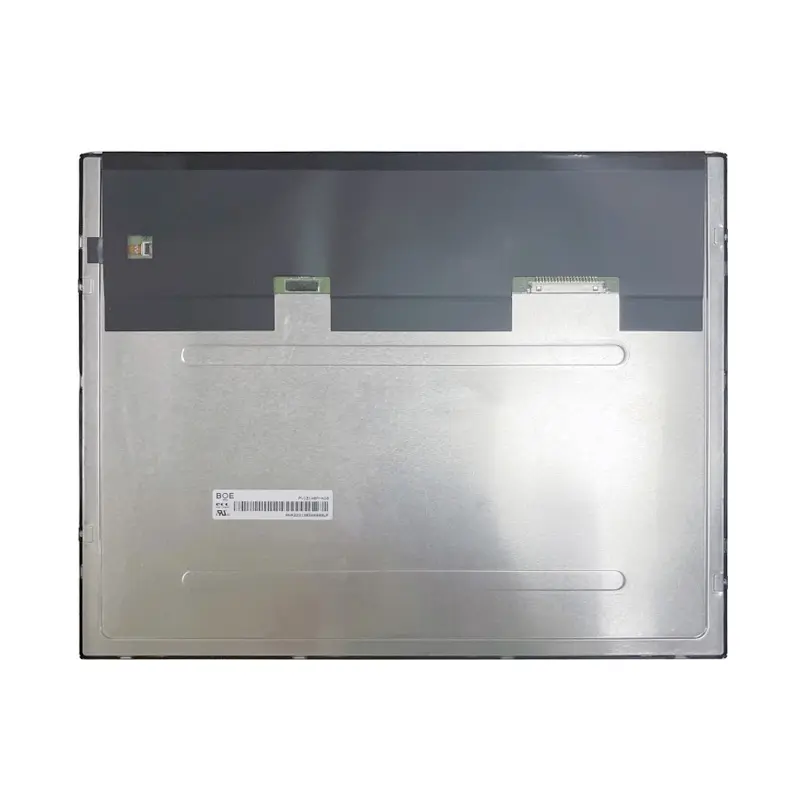

BOE PV121X0M-N10 12.1 inch High-Brightness IPS Display 500cd/m², -20°C~70°C, Ultra-Durable LVDS Screen

Artikelnummer: DS50269
Größe:

Modellnummer

V121X0M-N10

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

BOE pv121x0m-n10 12.1 inch IPS display with 500cd/m² brightness, 1280×800 resolution, and -20°C~70°C operation. LVDS interface, 30,000-hour lifespan. Ideal for industrial & outdoor systems.

Preisanfrage für Volumen







    Beschreibung

    HR215WU1 120 General Desription

    The BOE PV121X0M-N10 is a 12.1-inch color LCD display engineered for extreme environments. Featuring a 1280×800 resolution and IPS technology with 86/86/86/86 wide viewing angles, it delivers sharp, distortion-free visuals from any perspective. Boasting 500 cd/m² brightness and a 1200:1 contrast ratio, it ensures clarity even in direct sunlight or harsh lighting. Built to operate in temperatures from -20°C to 70°C (storage: -30°C~80°C), its rugged LVDS interface guarantees stable performance in demanding conditions. With a slim 9.2mm profile (260.5×204mm) and 3.3V low-power design, it optimizes space and energy efficiency. The 30,000-hour LED lifespan ensures long-term reliability for mission-critical applications.



    Application & Performanc

    Ideal for industrial automation, outdoor kiosks, and transportation systems, the PV121X0M-N10 excels in extreme environments. Its high brightness and IPS clarity make it perfect for factory HMI panels, EV charging stations, and solar farm monitoring. The wide temperature range supports freezing logistics hubs or desert-mounted equipment, while the rugged build resists vibrations and dust in mining or construction machinery. The compact size suits portable medical devices, marine navigation dashboards, and embedded IoT systems. With LVDS signal stability and low power consumption, it integrates seamlessly into robotics, aviation consoles, and energy grid controls, ensuring uninterrupted operation in 24/7 industrial or outdoor settings.

    12.1" Product Specifications

    Diagonal Size11.8 12.1 inch
    Pixel Zahl 1280×800
    Luminance 500
    Module Size 260.5×204×9.2
    Aktiver Bereich 245.76×184.32
    Viewing Direction IPS
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle LVDS
    Kontrastverhältnis 1200 : 1
    Betriebstemperatur -0 ~ 50 °C
    Lagertemperatur -20 ~ 60 °C
    LED-Lebensdauer 30000
    Stromversorgung 3.3V
    Touchscreen-Unterstützung Ohne
    Anzeige Typ Color TFT



    BOE LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE PV121X0M-N10 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE PV121X0M-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE PV121X0M-N10?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the BOE PV121X0M-N10?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the BOE PV121X0M-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    V121X0M-N10

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    500

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
