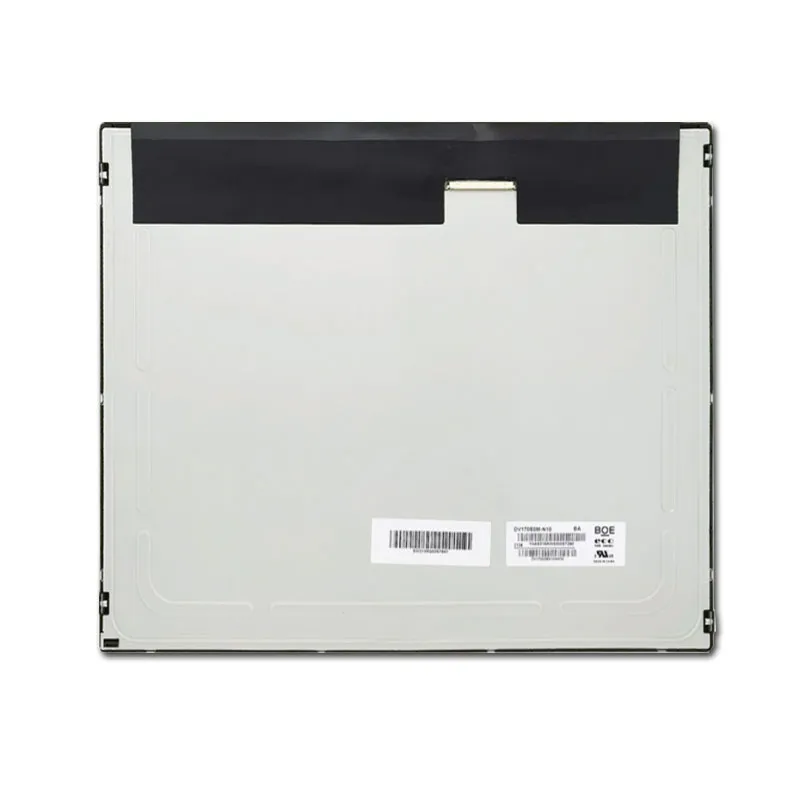

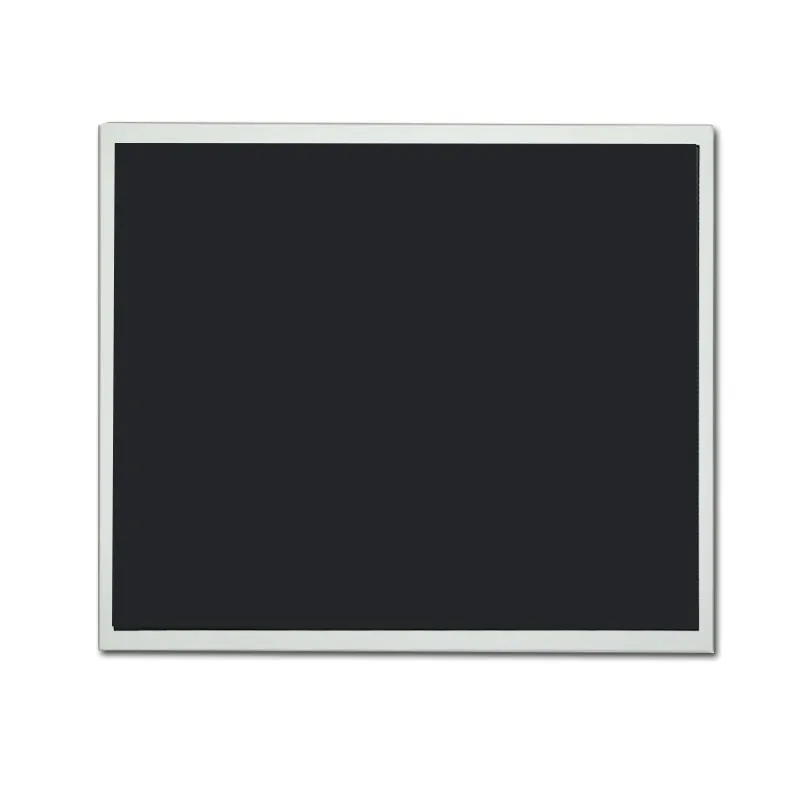

BOE DV170E0M-N10 17" IPS Industrial Display 1280x1024 LVDS 0-50°C 30K Hrs

Artikelnummer: DS50204
Größe:

Modellnummer

V170E0M-N10

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

250

Touchscreen-Unterstützung:

Anzeige Typ:

BOE DV170E0M-N10: 17" IPS panel, 1280x1024 resolution, LVDS interface, 250nits brightness, 0-50°C operating temperature, 30K-hour lifespan

Preisanfrage für Volumen







    Beschreibung

    DV170E0M-N10 General Desription

    The BOE DV170E0M-N10 is a 17-inch industrial-grade IPS display engineered for reliability in demanding environments. Featuring a sharp 1280x1024 resolution and 250nits brightness, it delivers consistent visual clarity under varying lighting conditions. The LVDS interface ensures stable signal transmission, compatible with industrial control systems and embedded applications.
    Built to withstand extended operation, this display operates seamlessly across a wide temperature range of 0°C to 50°C, making it ideal for automation, medical devices, and outdoor kiosks. Its robust design supports a 30,000-hour lifespan, minimizing downtime and replacement costs.



    DV170E0M-N10 Features

    Key specifications include a 5:4 aspect ratio for legacy system compatibility, anti-glare coating for reduced reflection, and low power consumption for energy-efficient deployments. The panel meets industrial EMI/EMC standards, ensuring interference-free performance in multi-device setups.
    Certified for long-term reliability and environmental compliance, the DV170E0M-N10 is suited for OEM integration or retrofitting existing equipment. Custom mounting solutions and bulk pricing are available for volume procurement.

    DV170E0M-N10 Product Specifications

    Diagonale Größe 17"(Diagonal)
    Pixel Zahl 1280×1024 Pixels
    Luminance 250
    Module Size 358.5(H)×296.5(V) ×10.8(D)
    Aktiver Bereich 337.92(W)×270.336(H)
    Viewing Direction ALLE
    View Angle(U/D/R/L) 89/89/89/89
    Schnittstelle LVDS 30
    Kontrastverhältnis 1000
    Betriebstemperatur -0~50℃
    Lagertemperatur -20~60℃
    LED-Lebensdauer 30K
    Touchscreen-Unterstützung Ohne
    Stromversorgung 5.0v
    Anzeige Typ Color TFT

     BOE LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    BOE DV170E0M-N10 17-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE DV170E0M-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 17-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV170E0M-N10?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE DV170E0M-N10 compare with the AUO G170EG01 V.1?

    Both catalog listings show 17 inches, 1280 × 1024 and LVDS. The catalog lists 0 °C to +50 °C for the BOE panel and −30 °C to +85 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G170EG01 V.1

    Is the BOE DV170E0M-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
