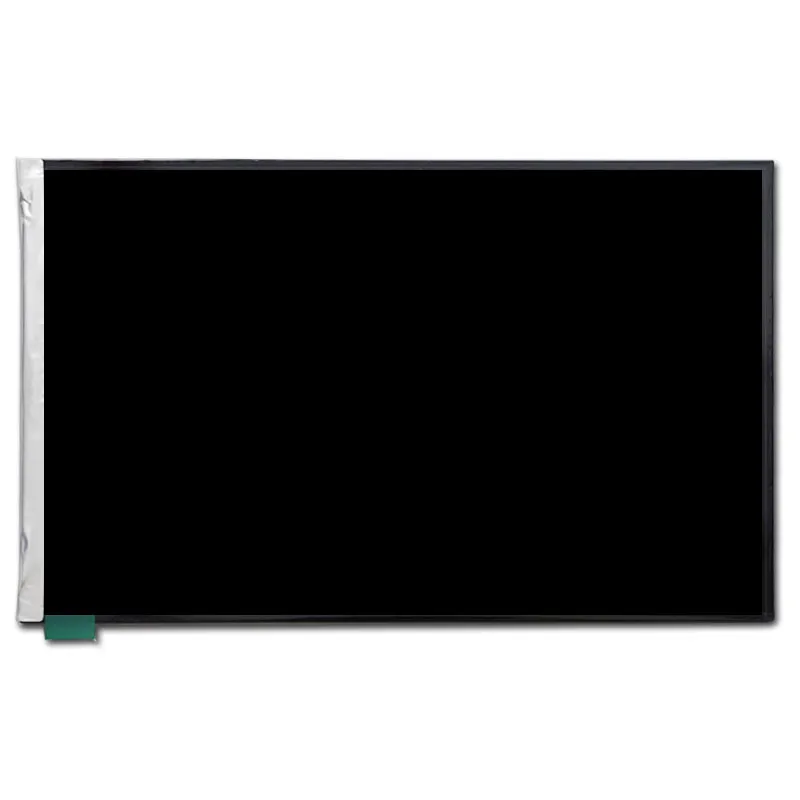

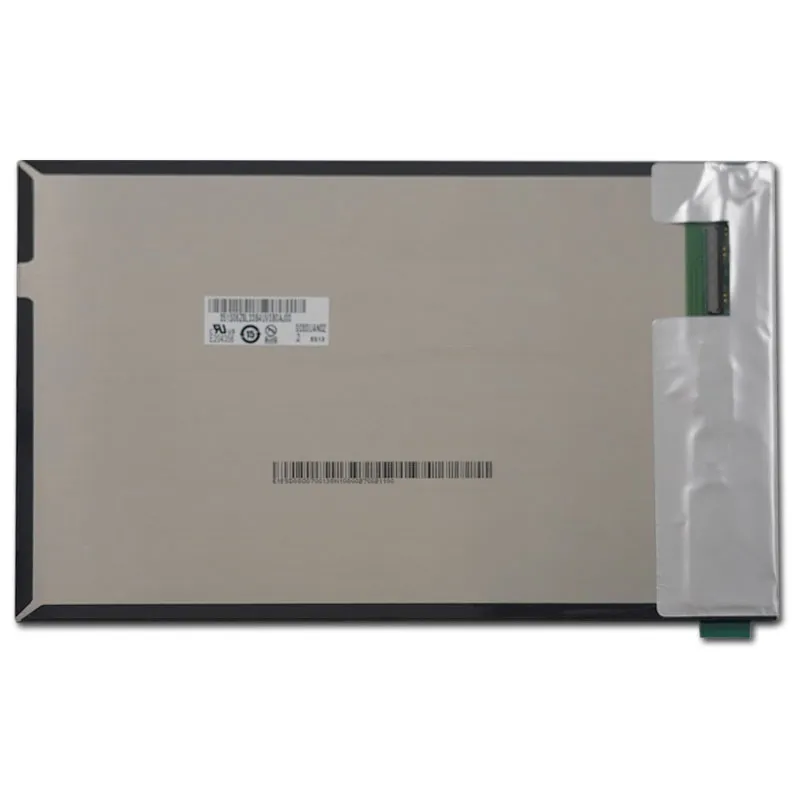

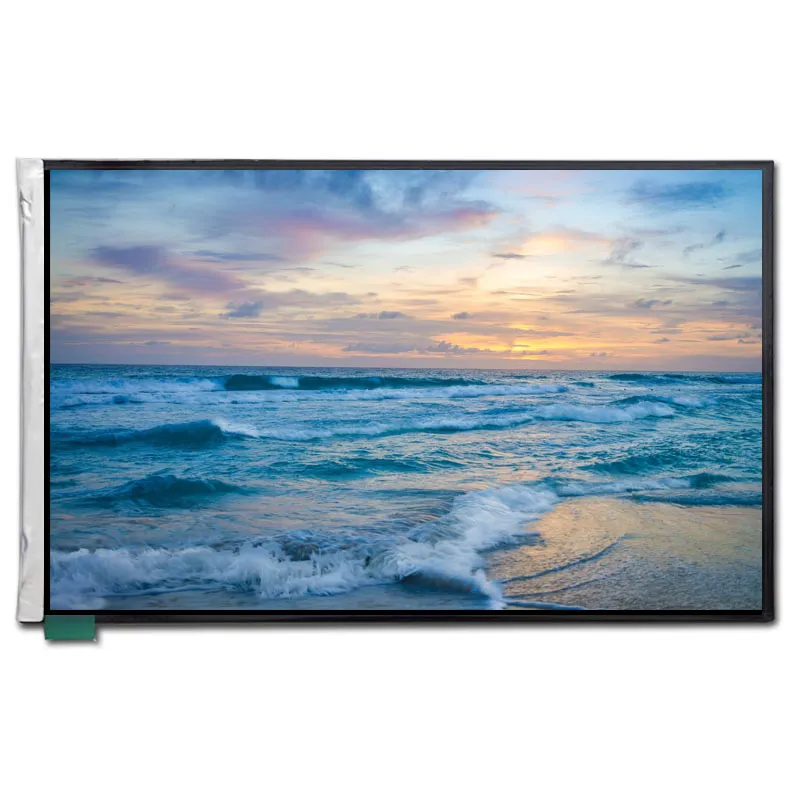

G080UAN02.2 AUO 8 inch TFT LCD 1200*1920 pixels

Artikelnummer: DS50005
Größe:

Modellnummer

G080UAN02.2

Auflösung:

Schnittstelle:

Helligkeit (cd/m²):

460

Betriebstemperatur:

-10℃~60℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

G080UAN02.2 from Brand AUO, Resolution 1200*1920, Operating Temperature from -0~50℃, 4 line MIPI, Stable supply, Original A grade quality

Preisanfrage für Volumen







    Beschreibung

    G080UAN02.2 General Description

    G080UAN02.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 , 1200(H) x1920(V) screen and 16.7M colors (RGB 8-bits data driver) without LED backlight driving circuit. All input signals are MIPI interface compatible. G080UAN02.0 is designed for a display unit of notebook style personal computer and industrial machine.



    G080UAN02.2 AUO Display Characteristics

    The G080UAN02.2 8 inch TFT LCD features an active area of 107.64 mm (H) x 172.224 mm (V), and a resolution of 1200 x 1920 pixels, arranged in a RGB vertical stripe format with a pixel pitch of 0.0897 mm. Operating in a normally black display mode, it achieves a white luminance of 390 cd/m², with a minimum luminance uniformity of 80% and a typical contrast ratio of 900:1. The module has a response time of 25 ms and operates at a nominal input voltage of +3.3V, with an LCD power consumption of 495 mW. Its physical dimensions include a length of approximately 114.6 mm, a width of 184.125 mm, and a thickness of 3.95 mm. The display utilizes a 4-lane MIPI electrical interface, features a glass thickness of 0.2 mm, and has a glare surface treatment. It supports RGB 8-bit color and operates effectively within a temperature range of 0°C to +50°C, with storage capabilities from -10°C to +60°C. The module is also RoHS compliant, ensuring adherence to environmental standards.

    8.0" TFT-LCD Product Specifications

    Modellnummer G080UAN02.2
    Größe 8.0
    Auflösung 1200*1920
    Umriss Dimension 114.6*184.125*3.95
    Aktiver Bereich 107.64*172.224
    Helligkeit(cd/m²) 460
    Schnittstelle MIPI
    Ansicht Richtung ALLE
    Betriebstemperatur -10~60
    Lagertemperatur -20~70
    LED-Lebensdauer 15000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 900:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    8.0" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G080UAN02.2 8-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G080UAN02.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing MIPI cable and controller with the AUO G080UAN02.2?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G080UAN02.2?

    Use 1200 × 1920 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G080UAN02.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G080UAN02.2

    Auflösung:

    Schnittstelle:

    Helligkeit (cd/m²):

    460

    Betriebstemperatur:

    -10℃~60℃

    Touchscreen-Unterstützung:

    Anzeige Typ:

    Individuelle Display-Lösungen

    Arbeiten Sie mit unseren technischen Experten zusammen, um das perfekte Display für Ihre Anwendung zu entwickeln.
