G101ICE-L01 10.1 inch IPS LCD Panel – 1280×800 HD, 500cd/m² Brightness, 50k-Hour Lifespan

Artikelnummer: DS50228
Größe:

Modellnummer

G101ICE-L01

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

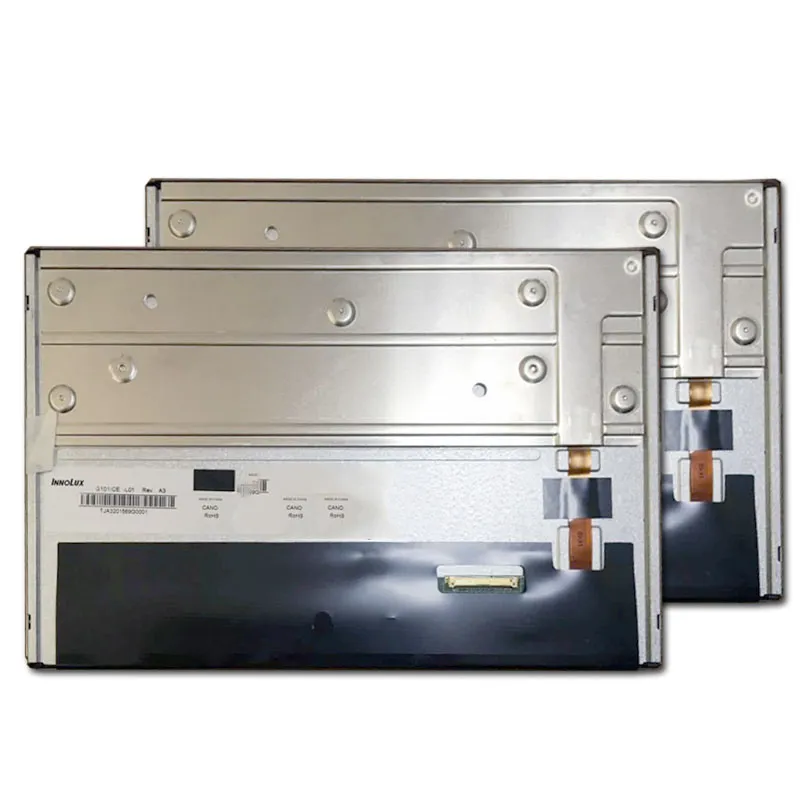

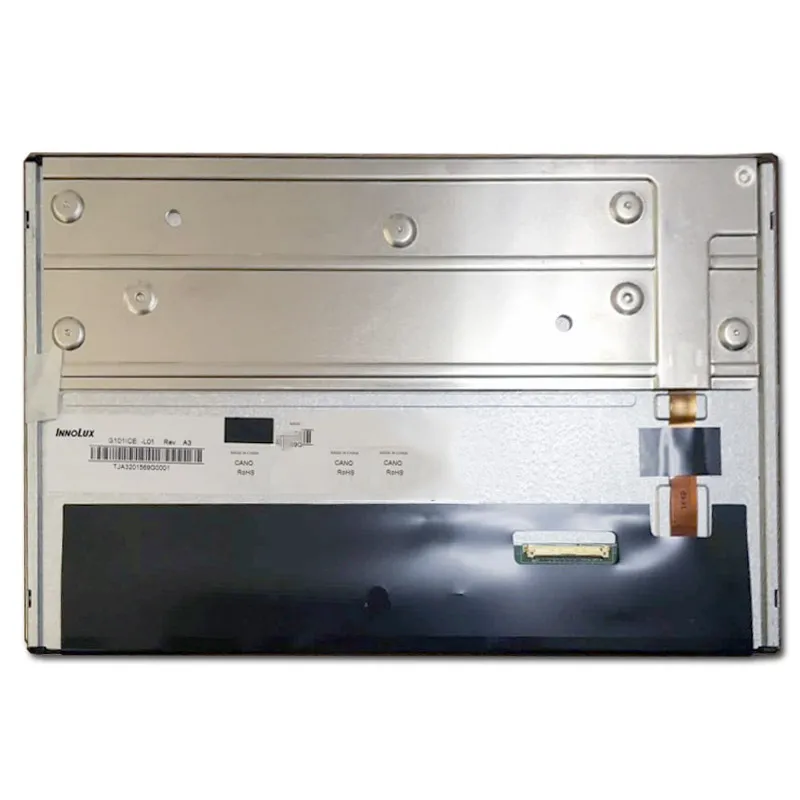

Innolux G101ICE-L01 10.1 inch IPS Industrial Display, High-Brightness LVDS Screen, Wide-Temperature LCD Panel.

Preisanfrage für Volumen







    Beschreibung

    G101ICE-L01 General Desription

    The Innolux G101ICE-L01 is a 10.1-inch IPS LCD panel built for high-performance applications. With 1280×800 HD resolution and 500cd/m² brightness, it ensures vivid visuals even in bright environments. The IPS technology delivers ultra-wide 85/85/85/85 viewing angles, ideal for collaborative workspaces. Engineered for durability, it operates in -20°C to 70°C extremes and offers a 50,000-hour LED lifespan for reduced maintenance. The LVDS interface guarantees stable data transmission in EMI-heavy industrial settings, while the 3.3V low-power design supports energy-efficient integration. Featuring 800:1 contrast ratio and a slim 7mm profile, it excels in space-constrained installations without touchscreen complexity.



    Application & Performanc

    Perfect for industrial HMIs, outdoor digital signage, and medical imaging equipment, this panel thrives under challenging conditions. Its 500cd/m² brightness ensures sunlight readability for solar farm monitors and construction site dashboards. The wide temperature range suits cold storage logistics displays and desert-deployed IoT devices. IPS clarity benefits multi-user scenarios like control rooms and interactive kiosks. LVDS compatibility integrates seamlessly with factory robots, EV charging stations, and aviation maintenance tools. The 50k-hour lifespan minimizes downtime in 24/7 operations, from manufacturing lines to public transportation info panels. Slim 7mm thickness adapts to portable diagnostic devices and embedded vehicle systems.

    10.1" Product Specifications

    Diagonale Größe 10,1 Zoll
    Pixel Zahl 1280×800
    Luminance 500
    Module Size 230.7×152.55×7
    Aktiver Bereich 216.96×135.6
    Viewing Direction IPS
    View Angle(U/D/R/L) 85/85/85/85
    Schnittstelle LVDS
    Kontrastverhältnis 650:1
    Betriebstemperatur -20~70℃
    Lagertemperatur -25~70℃
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Stromversorgung 3.3V
    Anzeige Typ Color TFT

    Innolux LCD Display Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux G101ICE-L01 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G101ICE-L01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G101ICE-L01?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G101ICE-L01 compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the Innolux panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the Innolux G101ICE-L01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G101ICE-L01

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Touchscreen-Unterstützung:

    Anzeige Typ:
