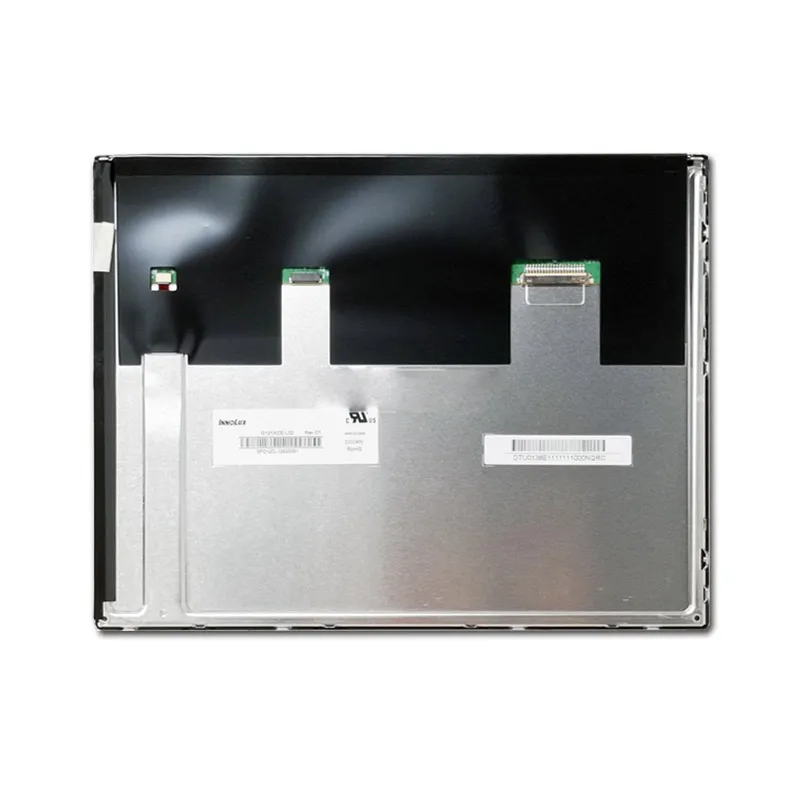

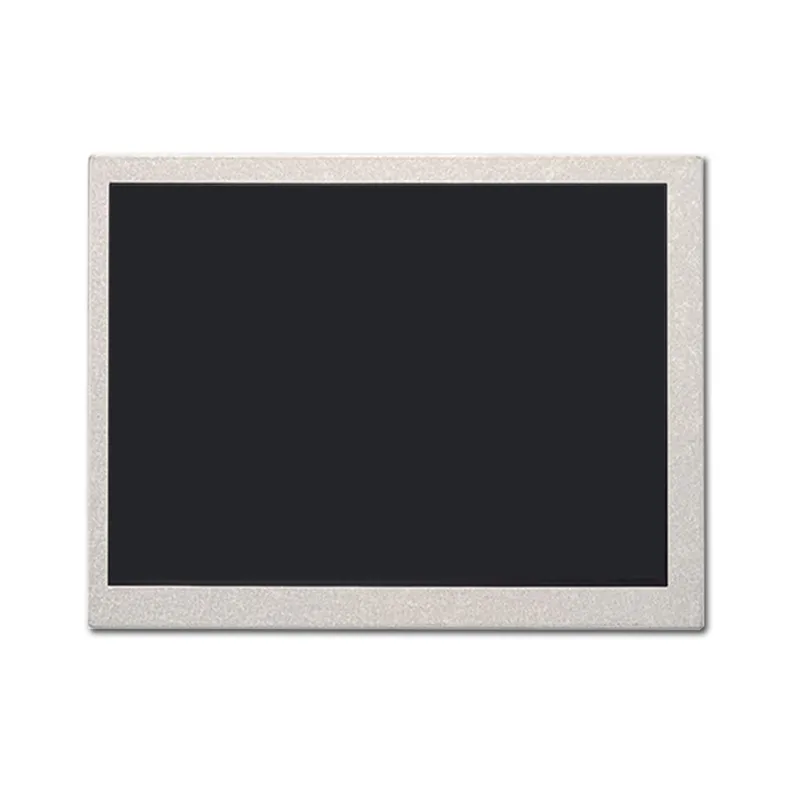

Innolux G121XCE-L02 12.1" TFT LCD Screen- 500nits, -30°C~70°C, LVDS

Artikelnummer: DS50196
Größe:

Modellnummer

G121XCE-L02

Auflösung:

Schnittstelle:

Betriebstemperatur:

-30℃~70℃

Helligkeit (cd/m²):

500

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

Innolux G121XCE-L02: 12.1" 1024x768 IPS display, 500nits brightness, -30°C~70°C operation, 30K-hour lifespan, LVDS interface.

Preisanfrage für Volumen







    Beschreibung

    Innolux G121XCE-L02 General Description

    Durable Build: Resistant to vibration and dust, suitable for factory automation and logistics.
    Adaptive Brightness: 500nits backlight with optional anti-glare coating for reduced reflections.
    Energy-Efficient: Optimized power consumption for continuous operation.
    Certified Reliability: Meets industrial-grade EMI/EMC standards.



    G121XCE-L02 TFT LCD Screen Application

    Warehouse management systems
    Healthcare monitoring equipment
    Self-service terminals and ATMs
    Lightweight transportation displays
    Customizable mounting solutions and touchscreen overlays (resistive/capacitive) are available for specialized requirements.

    12.1" TFT-LCD Product Specifications

    Modellnummer G121XCE-L02
    Größe 12.1
    Auflösung 1024(RGB)×768
    Umriss Dimension 260.5×204×8.4
    Aktiver Bereich 245.76×184.32
    Helligkeit(cd/m²) 500
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -30~70
    Lagertemperatur -40~80
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    12.1" TFT LCD Kundenspezifische Lösungen

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    Innolux G121XCE-L02 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G121XCE-L02?

    Send us a clear photo of the rear label showing the full model and revision, the equipment model, and a photo of the connectors. The Innolux v2.6 approval specification lists a typical module outline of 260.5 × 204 × 8.4 mm and an active area of 245.76 × 184.32 mm. Check the mounting points, viewing opening and connector clearance against the drawing before ordering.

    Innolux G121XCE-L02 approval specification, v2.6

    Can I reuse my existing LVDS cable and controller?

    The G121XCE-L02 uses a 20-pin single-channel LVDS connection and a separate backlight connector. Send us the controller model or wiring diagram so we can compare the pin assignments, video timing, and backlight power and dimming signals before you reuse the harness.

    Can BOE EV121X0M-N10 or AUO G121XN01 V0 replace the G121XCE-L02?

    Both are 12.1-inch 1024 × 768 LVDS candidates. The BOE has the same nominal width and height, but is listed at 8.7 mm thick and its operating range starts at −20°C, compared with −30°C for the Innolux. The AUO drawing shows a larger 279 × 209 mm outline. For a retrofit, check clearance, mounting and wiring before approving either candidate.

    BOE EV121X0M-N10 specifications

    AUO G121XN01 V0 specifications

    Is the Innolux G121XCE-L02 discontinued, and can I still order it?

    We have not verified an Innolux end-of-life notice for this suffix. Send us the revision, required quantity and date so we can check current availability. For new designs or repeat production, ask for dated lifecycle confirmation and a candidate you can qualify on your equipment.

    Can I keep the Innolux panel and add touch or change the cable?

    We can review a separate touch overlay, a custom cover glass or a revised cable around the original LCD. Send us the enclosure drawing, cable exit direction, host touch interface and planned quantities. We can then identify which changes are feasible and quote any tooling, samples and production separately.

    Explore custom touch integration

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G121XCE-L02

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -30℃~70℃

    Helligkeit (cd/m²):

    500

    Touchscreen-Unterstützung:

    Anzeige Typ:
