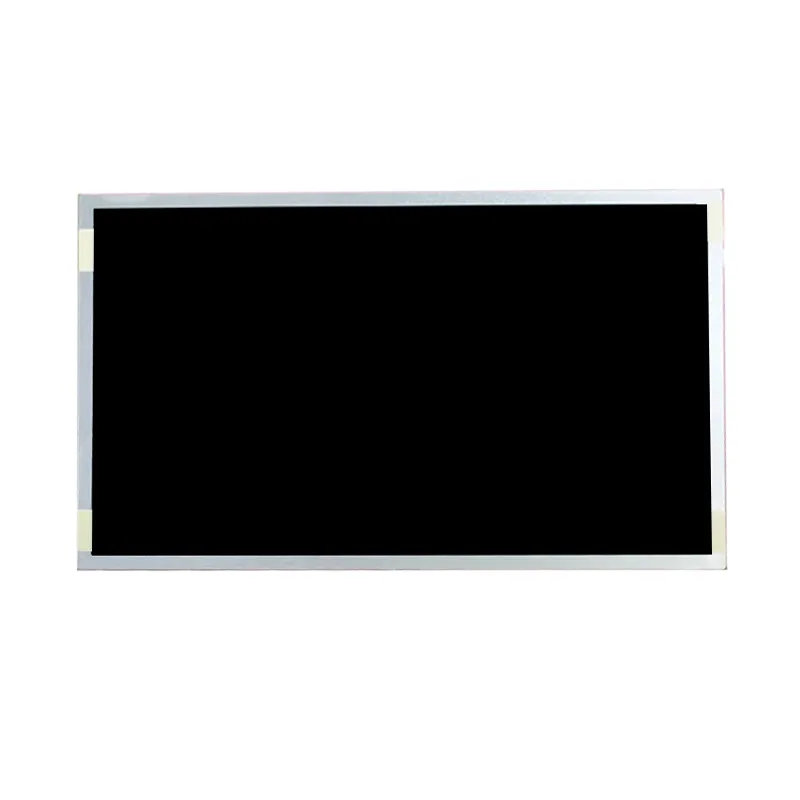

G270HAN01.0 27" FHD IPS Industrial LCD Display - 1000cd/m² Brightness, Wide Temperature & LVDS Interface

Artikelnummer: DS50065
Größe:

Modellnummer

G270HAN01.0

Auflösung:

Schnittstelle:

Betriebstemperatur:

-0℃~50℃

Helligkeit (cd/m²):

1000

Touchscreen-Unterstützung:

Anzeige Typ:

Resources:

AUO G270HAN01.0 27" FHD IPS panel with 1000cd/m² brightness for outdoor/industrial use. LVDS interface, -0°C~50°C operation. Buy now.

Preisanfrage für Volumen







    Beschreibung

    G270HAN01.0 Key Features:

    The AUO G270HAN01.0 is a 27-inch FHD (1920×1080) industrial LCD screen designed for high-performance environments. Featuring a 1000cd/m² ultra-bright IPS panel with 89° wide viewing angles, it ensures clarity in direct sunlight or harsh lighting. Built with an LVDS interface and 50,000-hour LED lifespan, it guarantees stable connectivity and durability. Its wide operating temperature range (-0°C to 50°C) suits extreme conditions, while the 1000:1 contrast ratio delivers vivid color reproduction. Ideal for industrial control systems, outdoor kiosks, and medical equipment, this display combines reliability with energy-efficient 12V power design.



    Applications & Performance:

    Engineered for demanding scenarios, the G270HAN01.0 excels in outdoor digital signage, factory automation, and medical imaging where brightness and readability are critical. The IPS technology maintains color consistency across 89° angles, perfect for multi-user environments like control rooms or public information displays. Its rugged construction withstands temperature fluctuations, ensuring uninterrupted operation in warehouses or transportation hubs. With LVDS signal stability and low power consumption, it integrates seamlessly into IoT solutions and 24/7 operational systems.

    27.0" TN LCD Product Specifications

    Modellnummer G270HAN01.0
    Größe 27.0
    Auflösung 1920*1080
    Umriss Dimension 630×368.2×23.4
    Aktiver Bereich 597.888×336.312
    Helligkeit(cd/m²) 300
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -0~50
    Lagertemperatur -20~60
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1000:1
    Stromversorgung 12.0V
    Anzeige Typ Farb-LCD

    27.0" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G270HAN01.0 27-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G270HAN01.0?

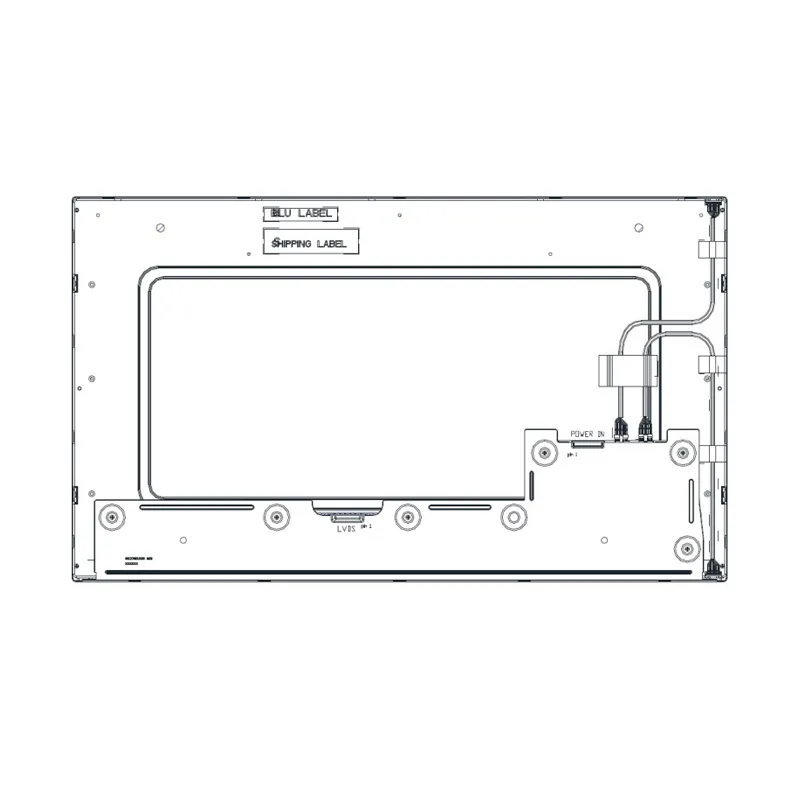

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 27-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G270HAN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G270HAN01.0?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G270HAN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
