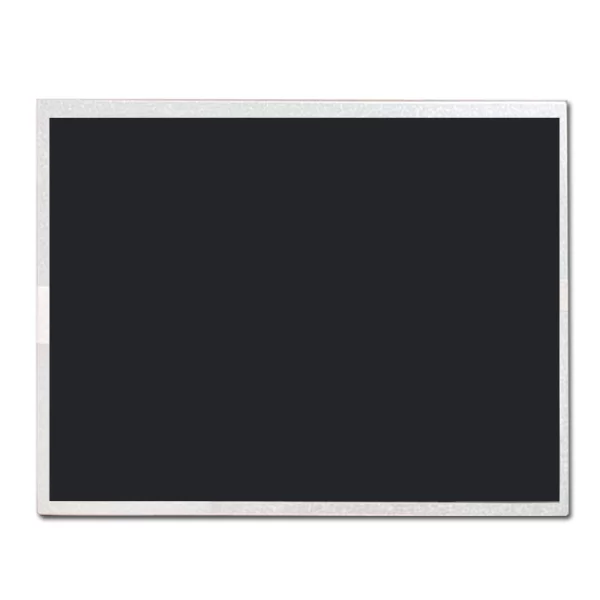

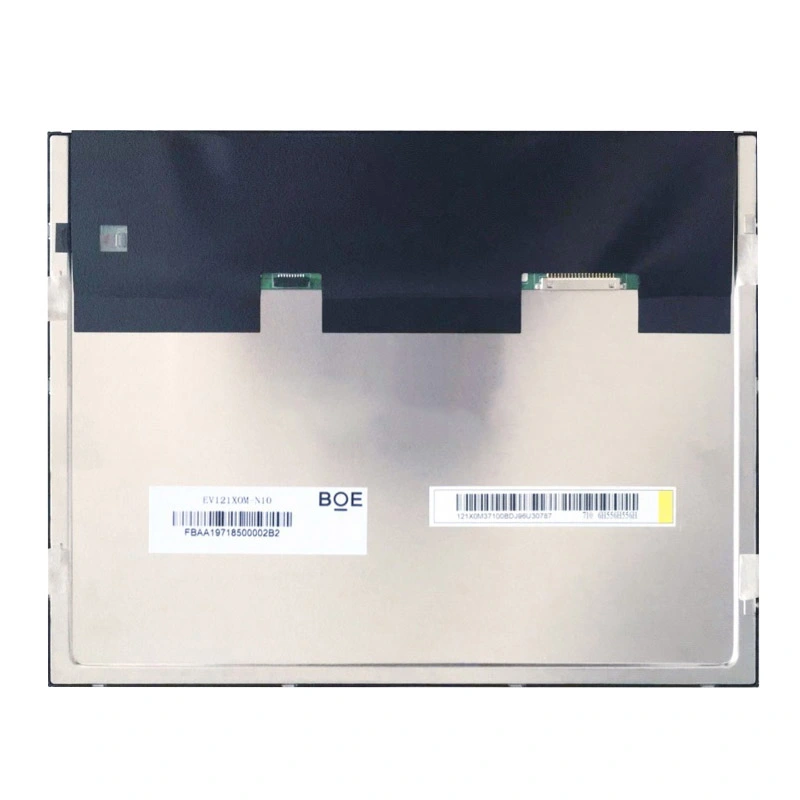

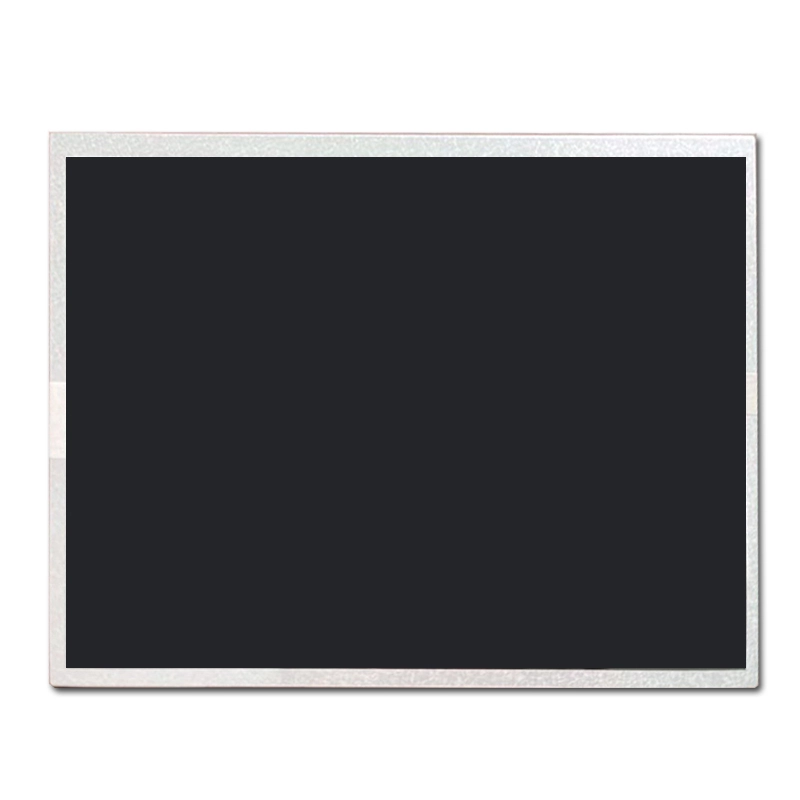

BOE EV121X0M-N10 12.1 inch LCD Industrial Panel 1024×768

SKU: DS50295
Size:

Resolution:

Interface:

Operating Temperature:

-20℃~70℃

Brightness(cd/m²):

500

Touchscreen Support:

Display Type:

BOE EV121X0M-N10, 12” industrial panel, 1024×768 resolution, 88/88/88/88 IPS wide viewing angle, LVDS interface, 50k Long life span

$99.00
Request Volume Pricing







    Description

    BOE EV121X0M-N10 TFT Display Description

    BOE EV121X0M-N10

    Wide-temperature design for stable operation in harsh environments
    Long-life panel suitable for medical and industrial applications
    15-year manufacturing expertise with in-house R&D team
    Customizable touch screen and driver solutions available

    Supporting retail and wholesale orders. Contact us for pricing quotes!

    12.1″ TFT Display Specifications

    Model Number EV121X0M-N10
    Size 12.1
    Resolution 1024*768
    Outline Dimension 260.5*204*8.7
    Active Area 245.76*184.32
    Brightness(cd/m²) 500
    Interface LVDS
    View Direction ALL
    Operating Temperature -20~70
    Storage Temperature -30~80
    LED Lifetime 50000
    Touchscreen Support No
    Contrast Ratio 1200:1
    Power Supply 3.3V
    Display Type Color LCD

    12.1″ TFT LCD Custom Solutions

    Optimize Your Cable Solutions

    Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    LCD Interface Customization

    Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.

    Elevate User Experience with Touch Screen Technology

    Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

    custom touch

    Custom Cover Glass

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

    Additional information

    Size:

    Resolution:

    Interface:

    Operating Temperature:

    -20℃~70℃

    Brightness(cd/m²):

    500

    Touchscreen Support:

    Display Type:

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
