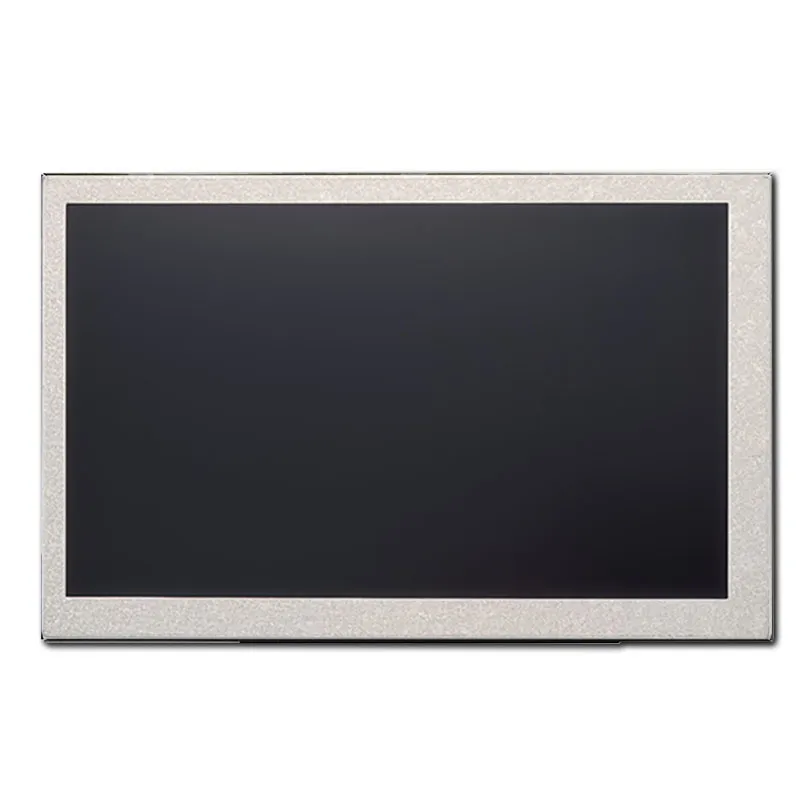

LCD Display IPS AUO G070VAN01.1 - 800x480, 200nits, LVDS, -20~70℃, 30K Hrs

Artikelnummer: DS50115
Größe:

Modellnummer

G070VAN01.1

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

200

Touchscreen-Unterstützung:

Anzeige Typ:

AUO G070VAN01.1 IPS Panel: 7-inch 800x480 resolution, 200nits brightness, LVDS interface, wide viewing angles (85/85/85/85), 30K-hour lifespan.

Preisanfrage für Volumen







    Beschreibung

    AUO G070VAN01.1 Key Specifications:

    LCD Display IPS Technology: Enhanced color reproduction and stable visuals under varying angles.
    LVDS Interface: Reliable signal transmission for embedded systems and control units.
    Wide Operating Range: Functions smoothly in -20°C to 70°C environments.
    30,000-Hour Lifespan: Optimized for long-term commercial and light industrial use.



    Ideal Applications:

    Retail POS systems, interactive kiosks, and digital signage.
    Medical monitoring devices and laboratory equipment.
    Indoor HMI panels, smart home controls, and IoT dashboards.
    Despite its 200nits brightness, this panel excels in controlled lighting conditions, offering energy efficiency and crisp readability. Its compact design and IPS clarity make it a cost-effective solution for applications prioritizing visual consistency over extreme brightness..

    G070VAN01.1 Product Specifications

    Modellnummer G070VAN01.1
    Größe 7
    Auflösung 800*480
    Umriss Dimension 166.6×107×10
    Aktiver Bereich 152.4×91.44
    Helligkeit(cd/m²) 200
    Schnittstelle LVDS
    Ansicht Richtung IPS
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 50000
    Touchscreen-Unterstützung Ohne
    Kontrastverhältnis 1300:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    7" TFT LCD Custom Solutions

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    AUO G070VAN01.1 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VAN01.1?

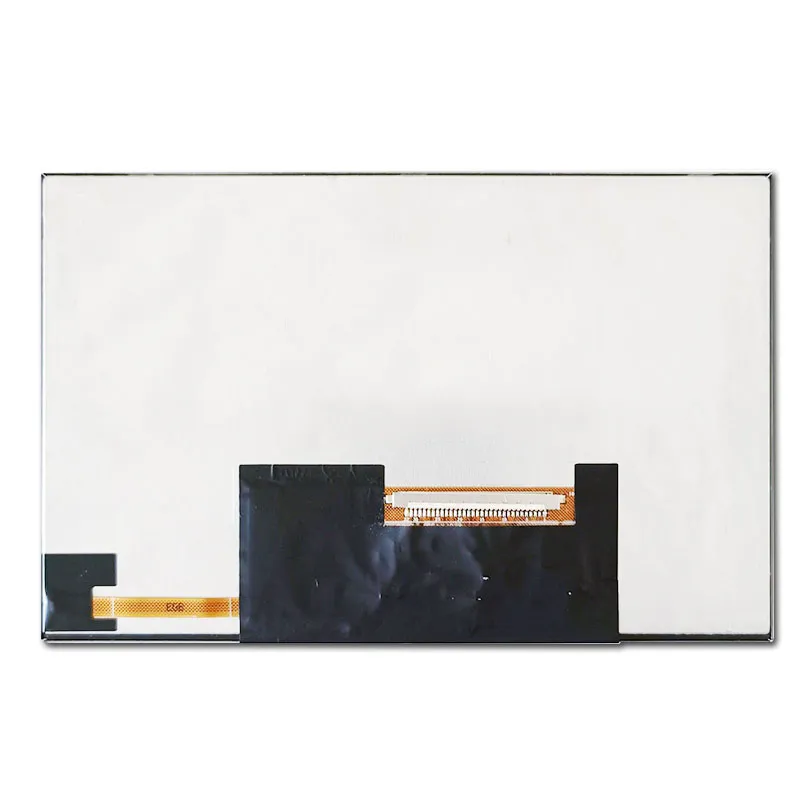

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G070VAN01.1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G070VAN01.1 compare with the Innolux G070ACE-L01?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −30 °C to +85 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G070ACE-L01

    Is the AUO G070VAN01.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Zusätzliche Informationen

    Größe:

    Modellnummer

    G070VAN01.1

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    200

    Touchscreen-Unterstützung:

    Anzeige Typ:
