2.8 inch TFT Display Module with Cover Lens

Artikelnummer: DS20107
Größe:

Auflösung:

Schnittstelle:

Betriebstemperatur:

-20℃~70℃

Helligkeit (cd/m²):

600

Touchscreen-Unterstützung:

Anzeige Typ:

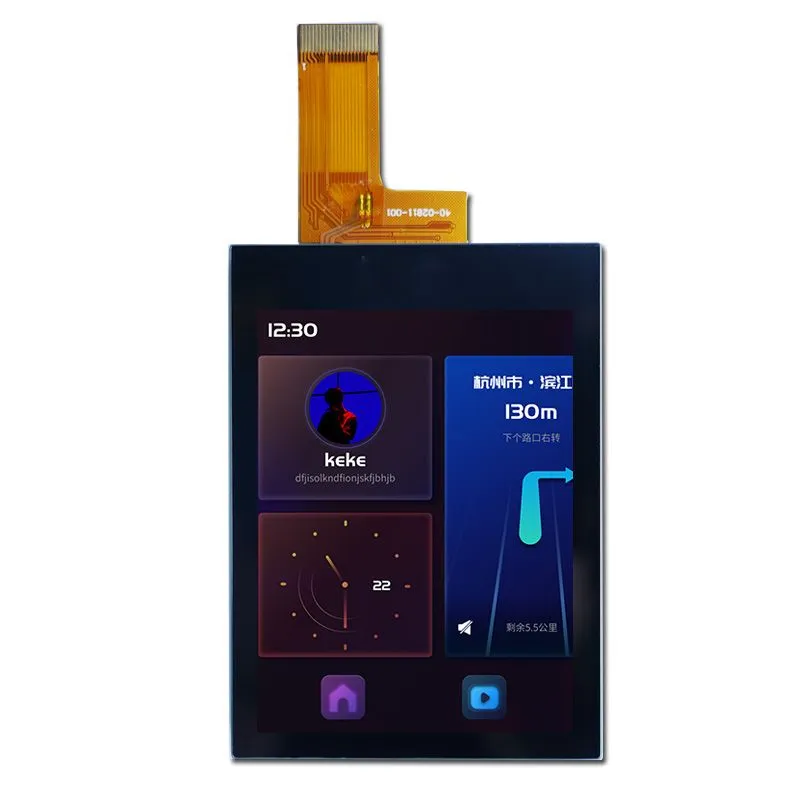

2.8 inch TFT Display Module  240*320 Pixels  IPS Viewing Direction  Serial MCU Interface  with Cover lens

Preisanfrage für Volumen







    Beschreibung

    2.8 inch TFT Display Module Features

    The 2.8 inch TFT Display Module features a wide viewing angle of 80° in all directions, ensuring excellent visibility from multiple perspectives. It utilizes an MCU 22 interface for reliable data transfer and seamless integration with microcontrollers. The display delivers a brightness of 600 cd/m², providing clear visibility in various lighting conditions.



    2.8 inch TFT Display Module with Cover Glass

    The 2.8 inch TFT display module features a protective cover glass that significantly enhances its functionality and durability. This cover glass provides impact resistance, safeguarding the display against scratches and preserving its integrity during everyday use, which is crucial for devices prone to bumps or drops. It is designed to withstand various environmental stresses, ensuring long-lasting performance. Additionally, the cover glass boasts high optical clarity, allowing vibrant colors and sharp images to shine through with minimal distortion, while optional anti-glare treatments can reduce reflections and improve visibility in bright conditions.

    2.8" TFT-LCD Product Specifications

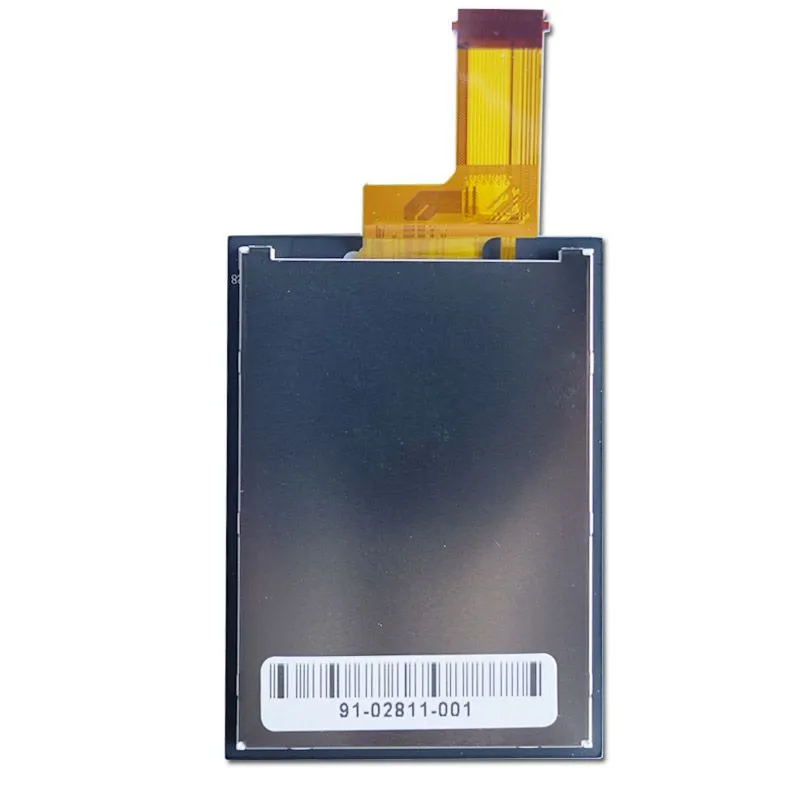

    Modellnummer  91-02811-001
    Größe 2.8
    Auflösung 240*320

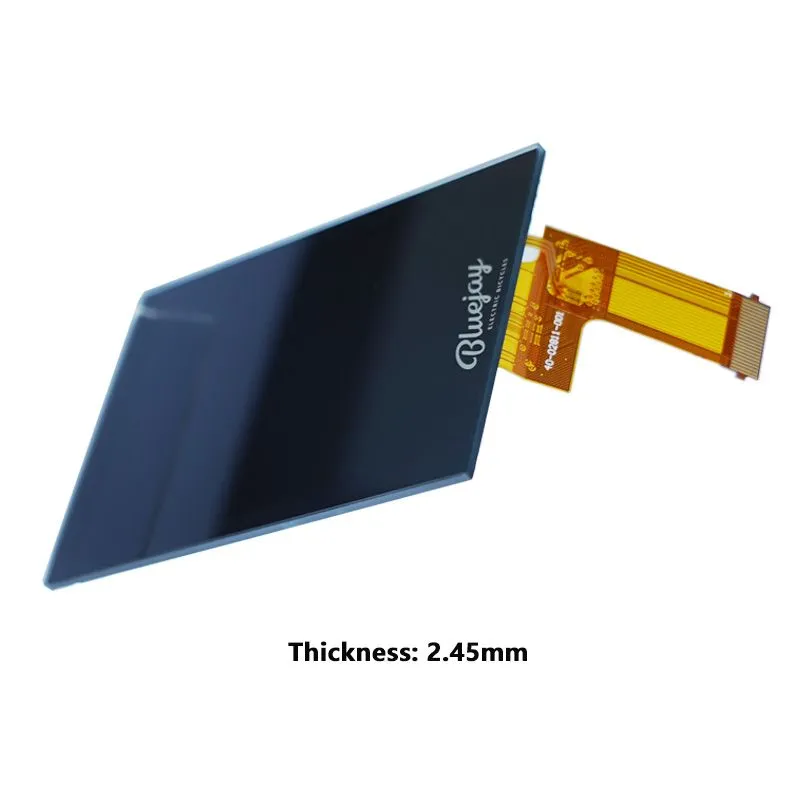

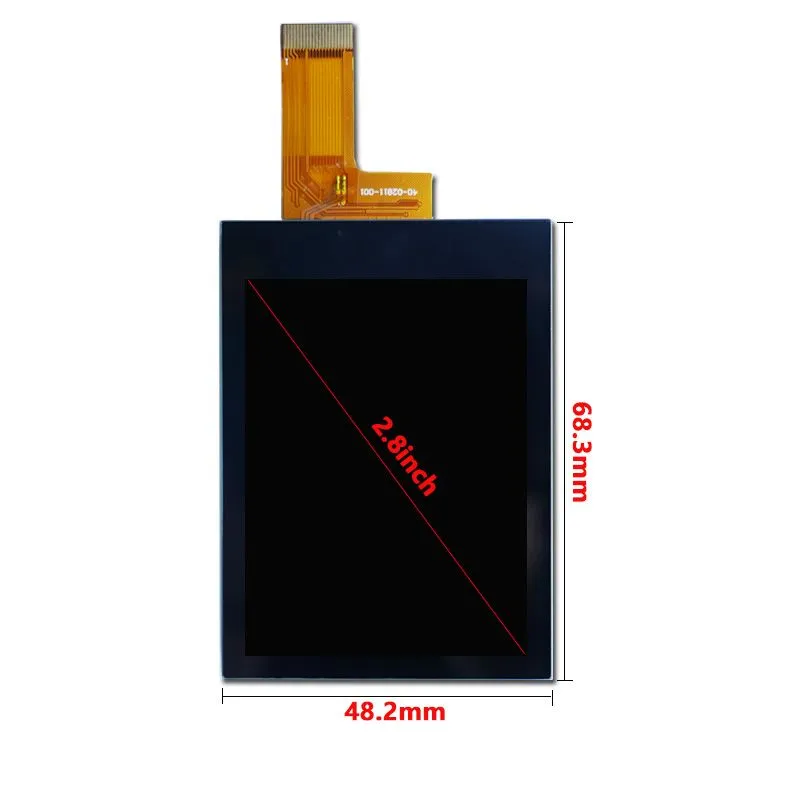

    Umriss Dimension 48.2*68.3*2.45
    Aktiver Bereich 43.2*57.6
    Helligkeit(cd/m²) 600
    Schnittstelle MCU
    Ansicht Richtung ALLE
    Betriebstemperatur -20~70
    Lagertemperatur -30~80
    LED-Lebensdauer 20000
    Touchscreen-Unterstützung Resistive
    Kontrastverhältnis 800:1
    Stromversorgung 3.3V
    Anzeige Typ Farb-LCD

    2.8" TFT LCD Kundenspezifische Lösungen

    Optimieren Sie Ihre Kabellösungen

    Passen Sie die Länge, Position und Pinbelegung Ihrer Kabel an, oder fügen Sie zusätzliche Stecker hinzu, um die Funktionalität zu verbessern. Holen Sie sich eine maßgeschneiderte Kabellösung, um Ihre Verbindungen zu optimieren und eine sichere, zuverlässige Leistung zu gewährleisten.

    Anpassung der LCD-Schnittstelle

    Wählen Sie aus einer Vielzahl von Schnittstellenoptionen oder lassen Sie sich von unseren Experten beraten, um die ideale Lösung für Ihr Projekt zu finden. Wir können HDMI, USB, SPI, VGA und mehr in Ihr Display integrieren und Ihnen helfen, Ihre Designziele effizient zu erreichen.

    Erhöhen Sie die Benutzerfreundlichkeit mit Touchscreen-Technologie

    Verbessern Sie Ihr Benutzererlebnis mit kapazitiver oder resistiver Touchscreen-Technologie. Wir passen die Glasdicke und die Form des Touchscreens an, um eine perfekte Anpassung an Ihre Designanforderungen zu gewährleisten.

    custom touch

    Kundenspezifisches Deckglas

    Statten Sie Ihr Display mit einem individuell zugeschnittenen Deckglas aus, um die Haltbarkeit und Leistung zu erhöhen. Wählen Sie aus verschiedenen Stärken und entscheiden Sie sich für eine optische Verklebung, die Schutz vor Feuchtigkeit und Schmutz bietet und eine langlebige und zuverlässige Lösung gewährleistet.

    2.8-Inch 240 × 320 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 600 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 2.8-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 240 × 320 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Zusätzliche Informationen

    Größe:

    Auflösung:

    Schnittstelle:

    Betriebstemperatur:

    -20℃~70℃

    Helligkeit (cd/m²):

    600

    Touchscreen-Unterstützung:

    Anzeige Typ:
