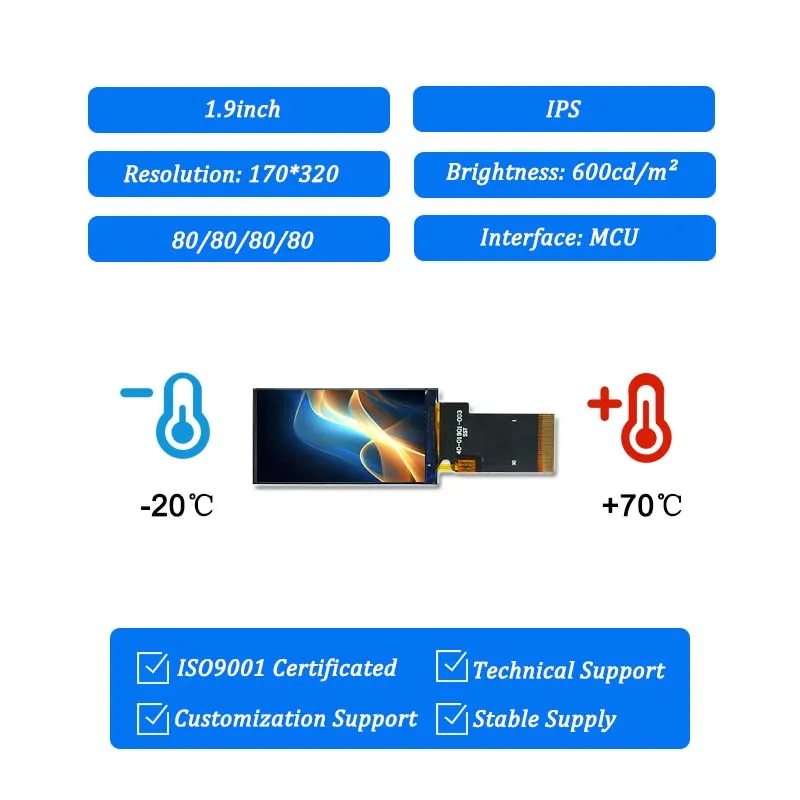

1.9 inch Bar Type 170*320 MCU TFT Display

SKU: DS20003
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

1.9 inch Bar Type 170*320 MCU TFT Display  MCU Interface  30 pin FFC ZIF Connection  20000 LED Lifetime Outline Dimension25.8*49.72*1.45

Solicitar precios por volumen







    Descripción

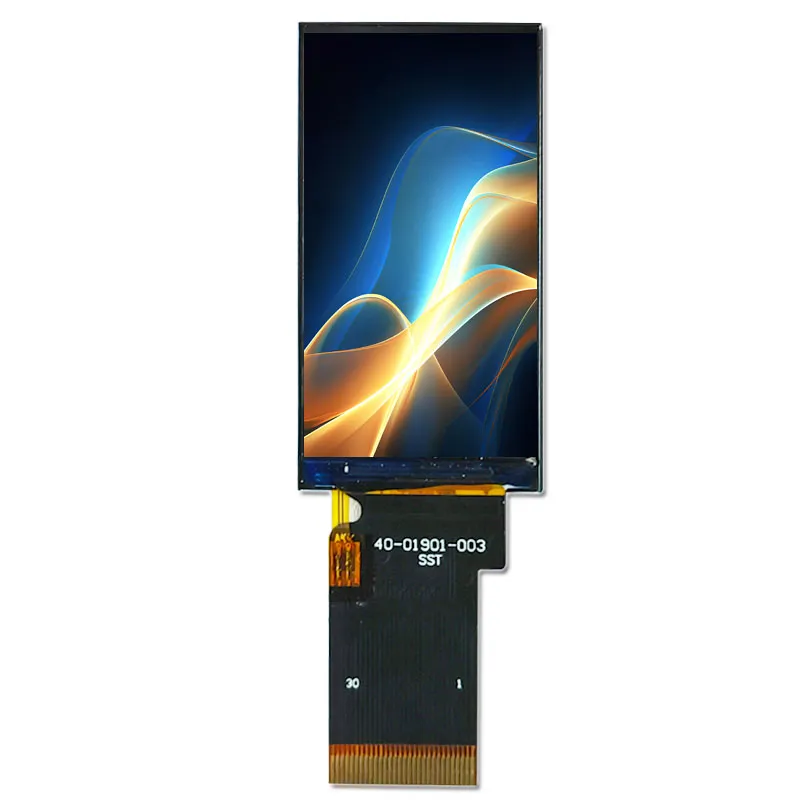

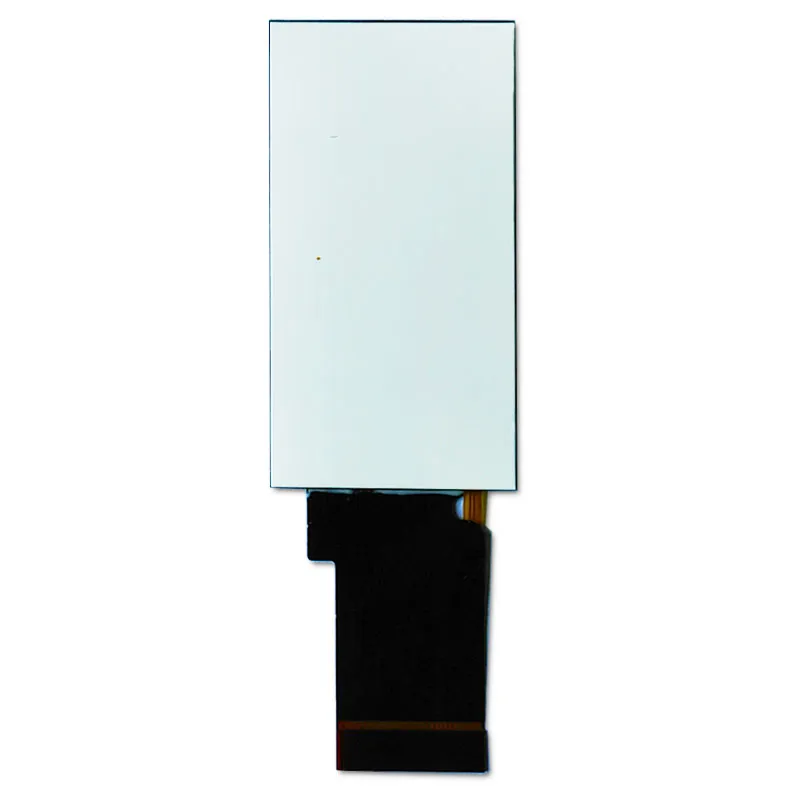

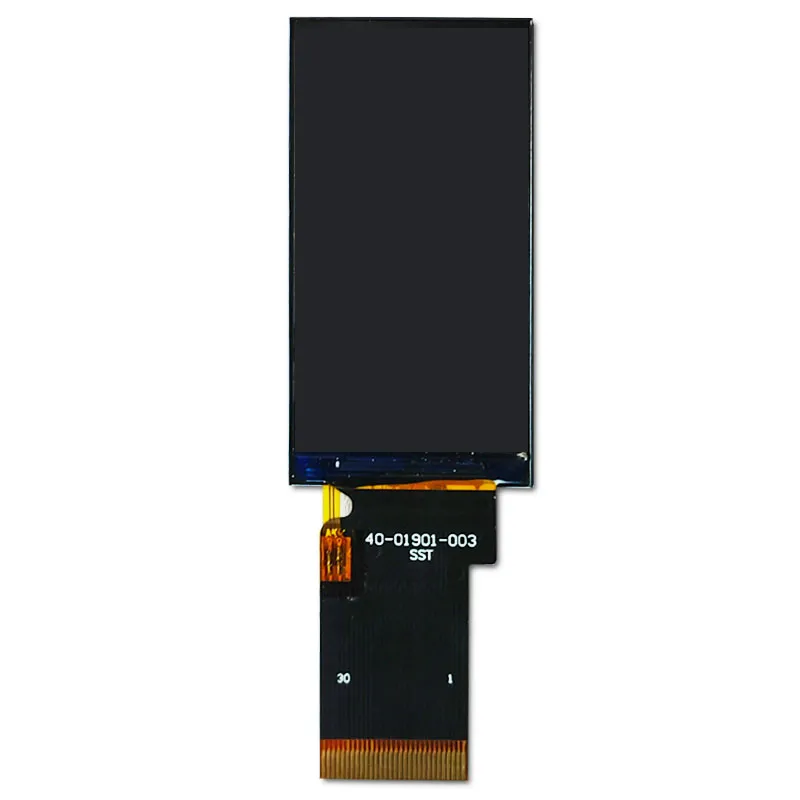

    1.9" Bar type TFT-LCD Display

    This standard 1.9 inch Bar Type 170*320 MCU TFT Display features a resolution of 170x320 pixels, providing clear and vibrant visuals. With a wide viewing angle of 160° in all directions, it ensures consistent image quality from multiple perspectives. Moreover, it boasts a brightness of 500 cd/m², making this lcd module suitable for environments with varying lighting conditions. Additionally, the LED backlight is rated for an impressive 20,000 hours, ensuring long-lasting performance.



    1.9” TFT Screen with a Wide Application

    Built to operate efficiently, this module functions within a temperature range of -20°C to 70°C, with a storage temperature range of -30°C to 80°C, providing flexibility for various applications,
    Such as industrial automation, consumer electronics, and handheld devices. Its compatibility with microcontrollers makes it an excellent choice for DIY projects and prototyping.

    By the way, Our displays are RoHS compliant, ensuring they meet strict environmental and safety standards.

    1.9" TFT-LCD Product Specifications

    Número de modelo  90-01901-002
    Talla 1.9
    Resolución 170*320
    Contorno Dimensión 25.8*49.72*1.45
    Área activa 22.7*42.5
    Brillo(cd/m²) 500
    Interfaz MCU/SPI
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil  Sin
    Relación de contraste 900:1
    Fuente de alimentación 3.3V
    Disolay Type LCD en color

    1.9" TFT LCD Soluciones a medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    1.9-Inch 170 × 320 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 1.9-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 170 × 320 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
