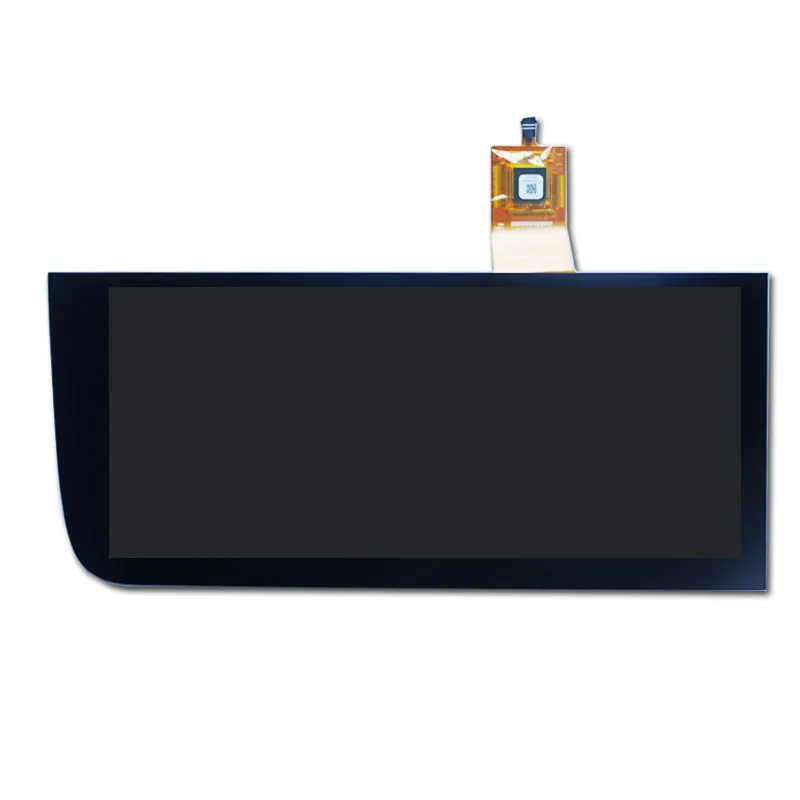

10.25 inch LCD TFT Screen with Capacitive Touch Screen

SKU: DS20090
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

750

Compatible con pantallas táctiles:

Tipo de pantalla:

10.25 inch tft display  1920*720 Pixels  Serial LVDS Interface  Capacitive touch screen  Automotive display technology

Solicitar precios por volumen







    Descripción

    10.25 inch LCD TFT Screen Features

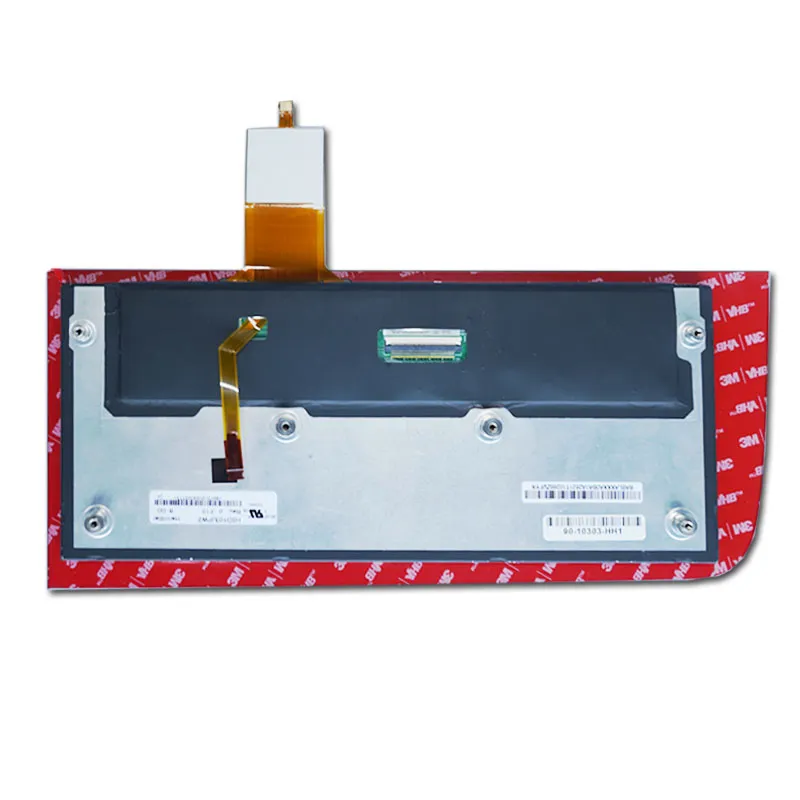

    The 10.25 inch TFT LCD display module features a resolution of 1920x720 pixels, With a wide viewing angle of 85°, a brightness level of 750 cd/m², and a contrast ratio of 1200, and the module operates efficiently, within a temperature range of -30°C to 85°C, with storage capabilities up to -40°C to 90°C, making it ideal for applications in consumer electronics, automotive displays, and industrial settings.

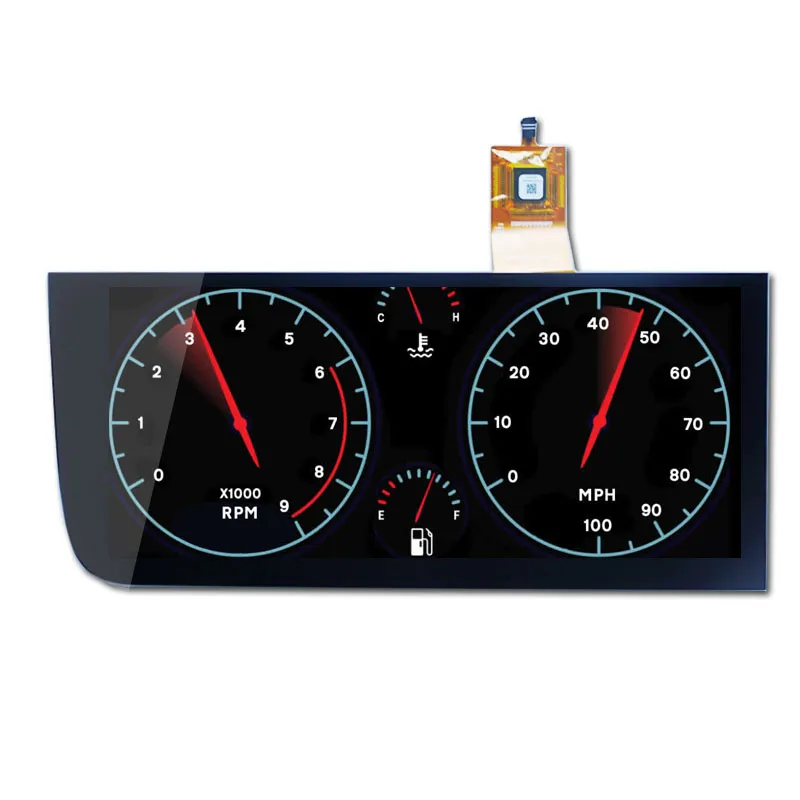

    10.25" Capacitive Touch Screen with Wide Temperature

    The 10.25 inch TFT touch panel operates effectively across a wide temperature range of -30°C to 85°C, this wide temperature tolerance guarantees consistent performance, maintaining brightness and color accuracy across different conditions. It can function efficiently in cold environments, making it ideal for outdoor settings and industries like transportation and refrigeration.

    10.25" TFT-LCD Product Specifications

    Número de modelo  91-10303-HH1
    Talla 10.25
    Resolución 1920*720
    Contorno Dimensión 305.2*178.2*2.6
    Área activa 293.8*165.2
    Brillo(cd/m²) 750
    Interfaz LVDS
    Ver Dirección ALL
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -40~90
    Vida útil del LED 20000
    Soporte de pantalla táctil capacitivo
    Relación de contraste 1200:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    10.25" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    10.25-Inch 1920 × 720 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 750 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 10.25-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1920 × 720 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Brillo (cd/m²):

    750

    Compatible con pantallas táctiles:

    Tipo de pantalla:
