1.9 inch High Bright LCD Display with Cover Glass

SKU: DS20104
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

1.9 inch high brightness lcd display  170*320 Pixels  IPS Viewing Direction  Serial MCU Interface  With Cover Lens Tropical Climate-resistant LCD

Solicitar precios por volumen







    Descripción

    1.9" High Bright LCD Display Features

    The 1.9 inch High Bright LCD Display combines advanced technology and a sleek design to deliver exceptional visual quality and reliability in a compact form factor. It features a diagonal screen size of 1.9 inches with a resolution of 170 x 320 pixels, ensuring sharp and vibrant images for user interfaces. The active area measures 22.7 mm (W) x 42.72 mm (H), allowing for easy integration into various designs. With a wide viewing angle of 80° in all directions and an MCU 30 interface for reliable data transfer.

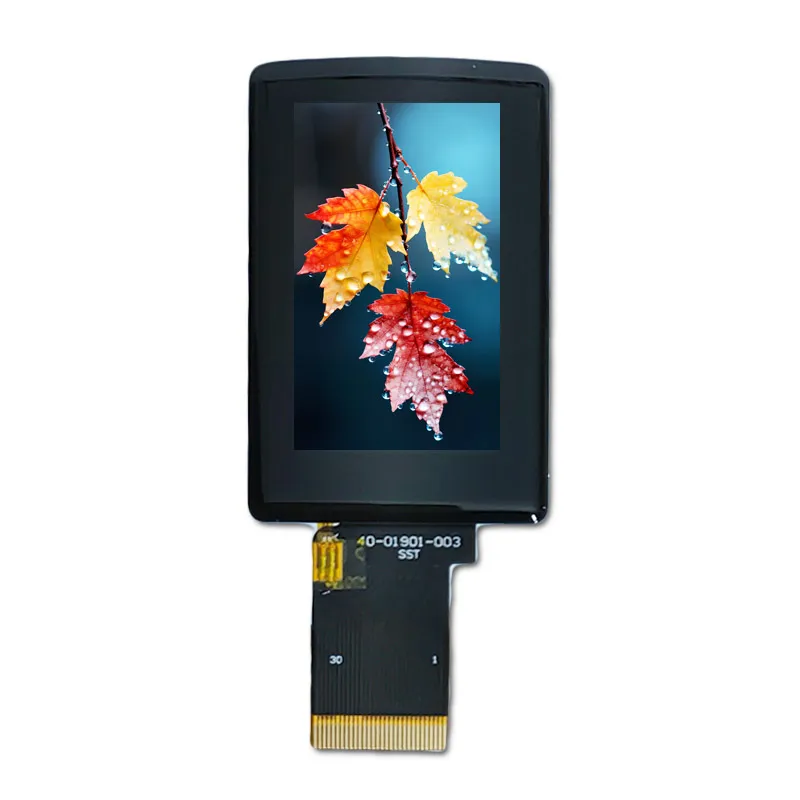

    1.9" LCD Display Module with Cover Lens

    The 1.9-inch LCD Display Module features a protective cover glass, which significantly enhances its functionality and durability. This cover glass provides impact resistance, safeguarding the display against scratches and preserving its integrity during everyday use, which is crucial for devices prone to bumps or drops. It is designed to withstand various environmental stresses, ensuring long-lasting performance. Additionally, the cover glass boasts high optical clarity, allowing vibrant colors and sharp images to shine through with minimal distortion, while optional anti-glare treatments can reduce reflections and improve visibility in bright conditions.

    1.9" TFT-LCD Product Specifications

    Número de modelo  91-01901-002
    Talla 1.9
    Resolución 170*320

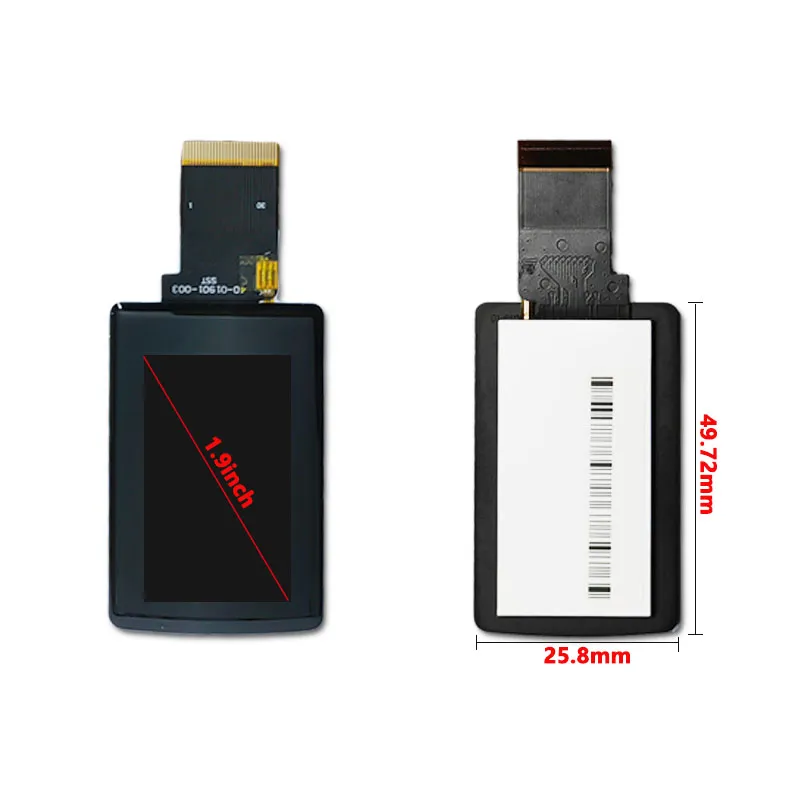

    Contorno Dimensión 25.8*49.72*1.45
    Área activa 22.7*44.72
    Brillo(cd/m²) 500
    Interfaz MCU
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 900:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    1.9" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    1.9-Inch 170 × 320 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 1.9-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 170 × 320 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing. Our bicycle instrument display concept references the same panel model. Use the case for cover and enclosure design, and ask us for the exact host interface and pinout on your quoted revision before wiring.

    1.9-inch bicycle instrument display case

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
