3.4 inch Round LCD Panel 800*800 MIPI

SKU: DSZ0018
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

3.4 inch round lcd panel  800*800 pixels  MIPI Interface  30 pin FFC ZIF Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

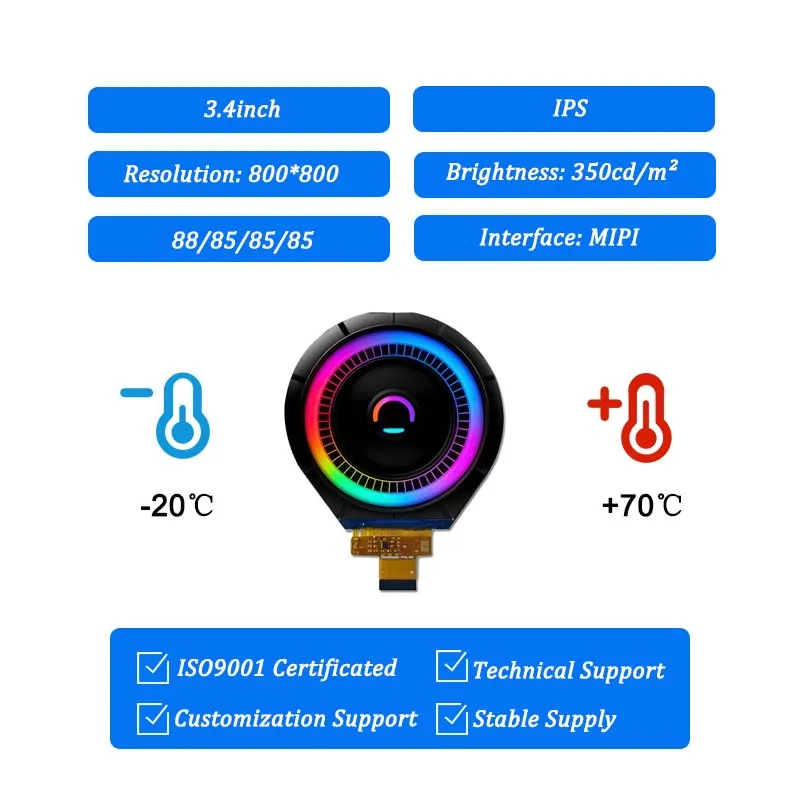

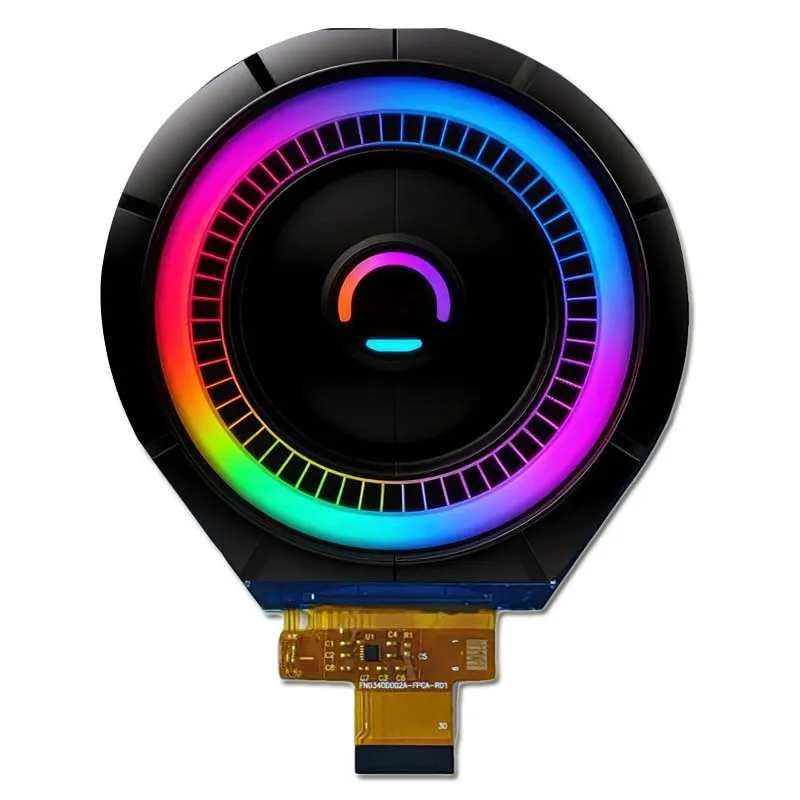

    3.4" High Resolution Round TFT Display

    The 3.4 inch round LCD panel offers stunning visuals with a high resolution of 800x800 pixels, making it ideal for applications that benefit from a unique round form factor. It features a wide viewing angle of 85° in all directions, ensuring consistent image quality and color accuracy from multiple perspectives, suitable for diverse environments. Additionally, the module boasts a high contrast ratio of 1200, enhancing the clarity and vibrancy of displayed content, which is essential for applications requiring precise visual output.



    3.4 inch MIPI LCD Display

    The 3.4-inch round TFT-LCD display module features a unique round shape that sets it apart, making it ideal for applications that require an eye-catching and modern design. This distinctive form factor enhances user experience by providing a visually appealing interface. Additionally, the module utilizes a MIPI interface with a 30-pin connection, ensuring seamless integration with modern microcontrollers and processors for efficient data transfer and communication, which is crucial for high-performance applications.

    3.4" TFT-LCD Product Specifications

    Número de modelo  90-03401-001
    Talla  3.4
    Resolución 800*800
    Contorno Dimensión 94.9*96.95*2.18
    Área activa 87.6*87.6
    Brillo(cd/m²) 350
    Interfaz MIPI
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Relación de contraste 1200:1
    Fuente de alimentación 3.3V
    Displar Type LCD en color

    3.4" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    3.4-Inch 800 × 800 Round LCD Display FAQ

    Will the bezel cover any of my dial labels or icons?

    Use the 3.4-inch diagonal to shortlist round displays, then check the exact drawing for fit. Make a mask from the active circle and bezel drawing. Try your dial, long labels and controls with the mask applied on a 800 × 800 canvas before committing to the enclosure.

    How do I check that the driver and artwork align with the visible circle?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Check orientation and any address-window offsets in the initialization code, then show a marked test grid to verify the center and edge alignment.

    Should I choose a round display or place a rectangular display behind a round bezel?

    Compare the visible arc, text clipping, module clearance and flex routing for both approaches. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. A mock-up with your longest labels will show how much of the nominal screen you can actually use.

    Can I add custom cover glass, change the flex cable, or add touch?

    Send the visible circle, cover outline and thickness, desired flex exit and touch interface. We can evaluate a cover-only design and a separate touch assembly around the panel.

    Custom Touch Screen Solutions

    What affects the cost and lead time of a custom round display sample?

    Include your cover drawing, host board, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
