Panel PC industrial de 10,4 pulgadas 800*600 con pantalla táctil capacitiva

SKU: DS30028
Tamaño:

Resolución:

Interfaz:

, , , ,

Brillo (cd/m²):

300

CPU

Intel® Celeron J6412/2,00GHz

10.4 inch Industrial Panel PC, offering resolution 800*600, Brightness 300 cd/m2, with 10 point capacitive touch, HDMI, VGA,USB interface, With IP65 waterproof.

Solicitar precios por volumen







    Descripción

    10.4 inch Industrial Panel PC main features:

    • 10.4-inch medium to size, light and easy to carry
    • IP65 waterproof and dustproof
    • Industrial grade, shockproof and pressure-resistant, strong working stability
    • 10-finger touch, sensitive response, easy to operate
    • 500,000 times long working life

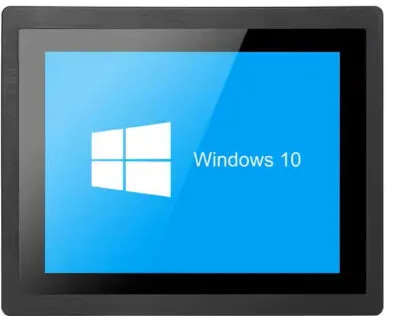

    10.4 lcd monitor



    10.4 inch Industrial Panel PC

    Chasis Material/Estructura Material de aleación de aluminio, estructura de disipación térmica sin ventilador
    Color Silver
    Dimensiones (L*A*A) L272*W214*H62mm
    Peso neto 2.63KG
    Instalación Admite la instalación de paneles VESA/integrados
    Pantalla LCD Tipo 10.4 inch LCD, 4:3, full screen
    Resolución 800 * 600
    Luminosidad 350 cd/m2
    Pantalla táctil Tipo Pantalla capacitiva, 10 puntos táctiles
    Transmitancia ≥85%
    Interfaz IO POTENCIA 1*botón de encendido, 1*restauración de una tecla, 1*ACLOSS (interruptor de encendido), 1*botón de reinicio del CMOS
    Interfaz de pantalla 1*HDMI
    LAN 2*tarjeta de red Gigabit Intel I210, compatible con activación de red, PXE
    USB 4*USB3.0,2*USB2.0
    COM 6*Puerto serie RS232, COM1 Puerto serie RS232 DB9, COM2 Puerto serie RS232/485/422 DB9, COM3-6 RS232 en terminal Phoenix 2*15P, COM3 soporta RS485, COM1-2 Soporta la función live del 9º pin
    Terminal Phoenix 2*15P (4 entradas 4 salidas GPO/señal del interruptor de alimentación/COM3~COM6/5V VCC/GND)
    Interruptor DIP Interruptor DIP de 10 bits, conmutación COM2~3 RS232/485, COM2 RS422 se realiza a través del puente COM2_SW1
    Audio 1*Salida de línea,1*MIC
    Potencia 1*DC aviation interface or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input
    Tienda SATA 1 ranura para disco duro de 2,5 pulgadas
    M.2 1*M.2/SSD, compatible con Key-M, 2280, NVME PCIEx4 SSD
    MSATA 1*MSATA
    Ampliar M.2 1*M.2/WiFi,Key-E,2230,soporta módulo WiFi.
    1*M.2/5G,Key-B,2242/52,soporta módulo 5G.
    Potencia Tipo de potencia Adaptador de corriente externo
    Entrada de tensión 9V~36V voltaje amplio
    Potencia CA A CC 60 W o superior
    Medio ambiente Temperatura de funcionamiento -10℃~50℃
    Temperatura de almacenamiento -20℃~70℃
    Humedad relativa 5%-95% humedad relativa, sin condensación
    Vibraciones de funcionamiento 0,5g rms/5-500HZ/aleatorio/operativo

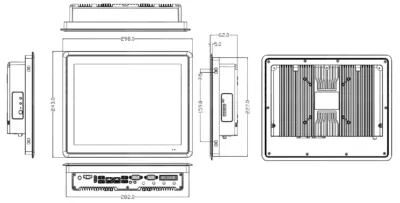

    Dimensiones del producto 10.4 inch Industrial Display Panel

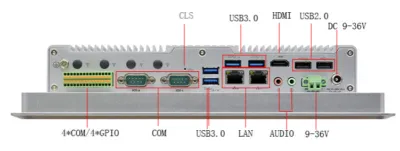

    10.4 inch industrial monitor

    10.4-Inch 800 × 600 Industrial Panel PC FAQ

    Will this panel PC fit my control cabinet without blocking I/O or ventilation?

    Use the 10.4-inch diagonal to shortlist panel PCs, then check the exact drawing for fit. Compare the cutout, bezel overlap, panel thickness, retention method and rear clearance. Fit the largest power and I/O connectors in the drawing before cutting the cabinet.

    Industrial touch monitor selection guide

    Can this panel PC run my application and connect to my equipment?

    Send us the application and OS versions, license needs, storage and memory requirements, and list of required ports. Ask us to confirm the exact computer configuration and test your peripherals on the sample.

    When should I choose an industrial panel PC over a separate computer and display?

    Try your operator screens and alarms on a 800 × 600 canvas before committing to the enclosure. Compare installation space, cooling, field replacement time, service access and how easily you can back up and restore the software. Use the actual operator workflow to compare both options.

    Can the panel PC be configured for my OS, storage, and I/O needs?

    Share your OS image, application, peripheral list, cabinet drawing and restart behavior. We can review the available processor, memory, storage, I/O and mounting configuration before sampling.

    What determines the cost and lead time for a configured panel PC?

    Include the proposed hardware and OS configuration, cabinet drawing, test checklist, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    , , , ,

    Brillo (cd/m²):

    300

    CPU

    Intel® Celeron J6412/2,00GHz
