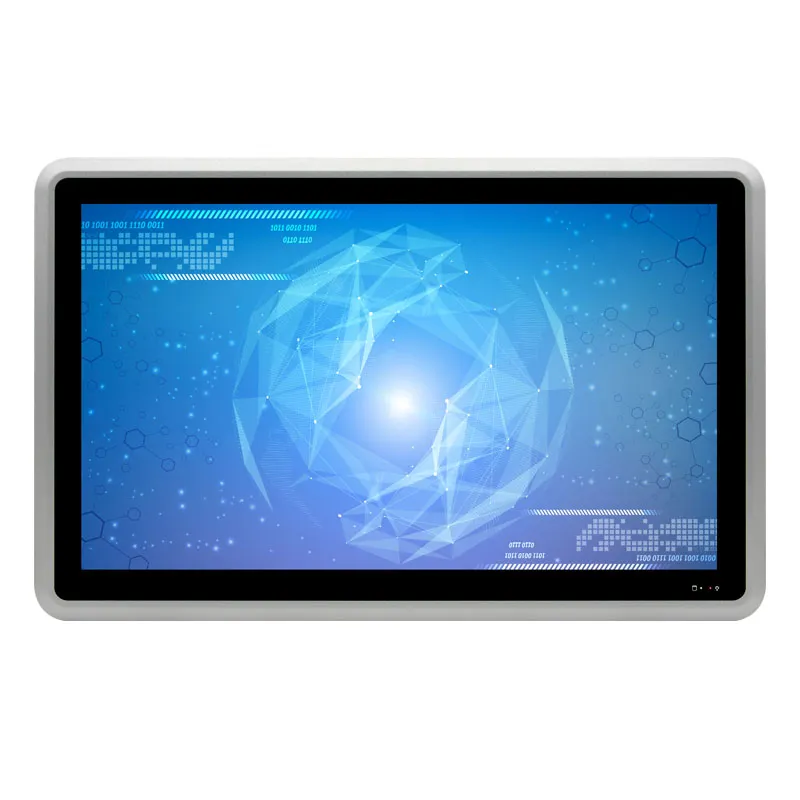

PC con panel táctil capacitivo de 21,5 pulgadas 16:9 1920*1080

SKU: DS30033
Tamaño:

Resolución:

Interfaz:

, , , ,

CPU

Intel®i5-8260U/1.60GHz

Compatible con pantallas táctiles:

21.5 inch Capacitive Touch Panel PC, 16:9 1920*1080, 10 point touch, Industrial All-in-One computer, Intel® i5-8260U/1.60GHz quad-core eight-thread processor.

Solicitar precios por volumen







    Descripción

    21.5 inch Capacitive Touch Panel PC main features:

    • 21.5-inch LCD, 1920*1080, 16:9, capacitive touch screen
    • Integrated Intel® i5-8260U/1.60GHz quad-core eight-thread processor
    • 2*SODIMM DDR4 2400MHz memory, maximum support 64GB
    • 1*HDMI
    • 2*Intel I210 Gigabit network card
    • 6*RS232 serial ports, COM1 RS232 DB9 serial port, COM2 RS232/485/422 DB9 serial port, COM3~6 RS232/485 on 2*10Pin Phoenix terminal
    • Four-input and four-output GPIO, 4*USB3.0, 2*USB2.0
    • Entrada de tensión amplia de 9~36 V

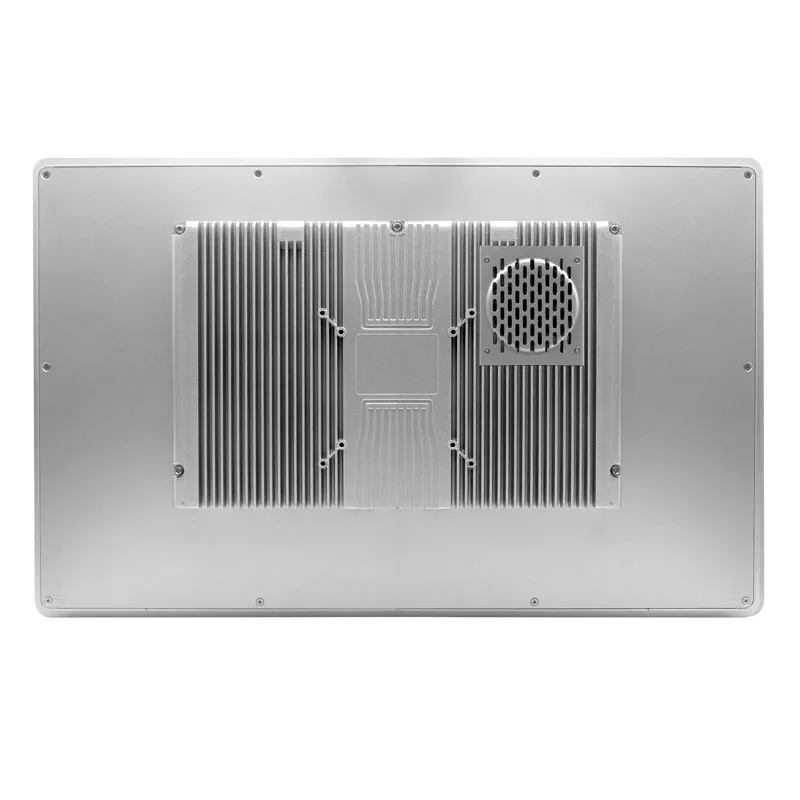

    • Aluminum alloy material, fan heat dissipation structure

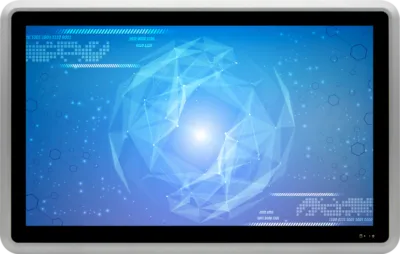

    21.5 inch touch panel



    PC con panel táctil capacitivo de 21,5 pulgadas

    Chasis Material/Estructura Aluminum alloy, fan heat dissipation structure
    Color Silver
    Dimensiones (L*A*A) L537*W365*H65mm
    Peso neto 7.5KG
    Instalación Admite la instalación de paneles VESA/integrados
    Pantalla LCD Tipo 21.5 inch LCD, 16:9 widescreen
    Resolución 1920 * 1080
    Luminosidad 300 cd/m2
    Pantalla táctil Tipo Capacitive screen, 10 point touch (can be changed to resistive touch screen)
    Transmitancia ≥86%
    Interfaz IO POTENCIA 1*power button, 1*one-key restore, 1*ACLOSS (power-on dial switch), 1*CMOS reset button
    LED 1*power indicator, 1*hard disk indicator
    Interfaz de pantalla 1*HDMI
    LAN 2*tarjeta de red Gigabit Intel I210, compatible con activación de red, PXE
    USB 4*USB3.0,2*USB2.0
    COM 6*Puerto serie RS232, COM1 Puerto serie RS232 DB9, COM2 Puerto serie RS232/485/422 DB9, COM3-6 RS232 en terminal Phoenix 2*15P, COM3 soporta RS485, COM1-2 Soporta la función live del 9º pin
    Terminal Phoenix 2*15P (4 entradas 4 salidas GPO/señal del interruptor de alimentación/COM3~COM6/5V VCC/GND)
    Interruptor DIP Interruptor DIP de 10 bits, conmutación COM2~3 RS232/485, COM2 RS422 se realiza a través del puente COM2_SW1
    Audio 1*Salida de línea,1*MIC
    Tienda Potencia 1*DC (5,5*2,5) interfaz de aviación o 1*2P P=5,08mm terminal Phoenix, admite entrada de 9V~36V
    SATA 1 ranura para disco duro de 2,5 pulgadas
    M.2 1*M.2/SSD, compatible con Key-M, 2280, NVME PCIEx4 SSD
    Ampliar MSATA 1*MSATA
    M.2 1*M.2/WiFi,Key-E,2230,soporta módulo WiFi.
    1*M.2/5G,Key-B,2242/52,soporta módulo 5G.
    Potencia Tipo de potencia Adaptador de corriente externo
    Entrada de tensión 9V~36V voltaje amplio
    Potencia 60W-90W
    Medio ambiente Temperatura de funcionamiento -10℃~50℃
    Temperatura de almacenamiento -20℃~70℃
    Humedad relativa 5%-95% humedad relativa, sin condensación
    Vibraciones de funcionamiento 0,5g rms/5-500HZ/aleatorio/operativo
    Dimensiones del producto 21.5 inch Capacitive Touch Panel PC drawings

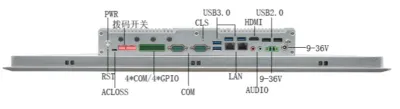

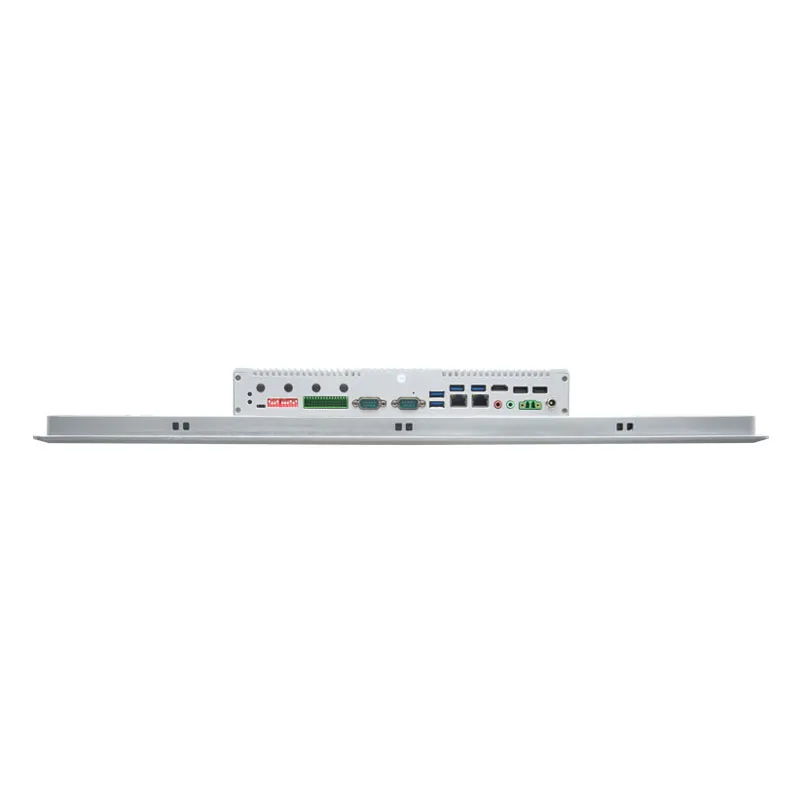

    21.5 inch Capacitive Touch Panel PC interface

    21.5-Inch 1920 × 1080 Industrial Panel PC FAQ

    Will this panel PC fit my control cabinet without blocking I/O or ventilation?

    Use the 21.5-inch diagonal to shortlist panel PCs, then check the exact drawing for fit. Compare the cutout, bezel overlap, panel thickness, retention method and rear clearance. Fit the largest power and I/O connectors in the drawing before cutting the cabinet.

    Industrial touch monitor selection guide

    Can this panel PC run my application and connect to my equipment?

    Send us the application and OS versions, license needs, storage and memory requirements, and list of required ports. Ask us to confirm the exact computer configuration and test your peripherals on the sample.

    When should I choose an industrial panel PC over a separate computer and display?

    Try your operator screens and alarms on a 1920 × 1080 canvas before committing to the enclosure. Compare installation space, cooling, field replacement time, service access and how easily you can back up and restore the software. Use the actual operator workflow to compare both options.

    Can the panel PC be configured for my OS, storage, and I/O needs?

    Share your OS image, application, peripheral list, cabinet drawing and restart behavior. We can review the available processor, memory, storage, I/O and mounting configuration before sampling.

    What determines the cost and lead time for a configured panel PC?

    Include the proposed hardware and OS configuration, cabinet drawing, test checklist, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
