10.4 Inch TFT LCD Display | 1024×768 IPS High Brightness

SKU: DS20319
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~80℃

Brillo (cd/m²):

700

Compatible con pantallas táctiles:

Tipo de pantalla:

10.4 inch 1024*768 TFT display, wide temperature -30~80 ℃, 700nit high brightness, 80/80/80/80 IPS wide viewing angle, decreased-cost solution replace innolux and AUO 10.4 inch display

Solicitar precios por volumen







    Descripción

    10.4 inch TFT LCD display Description

    This 10.4 inch TFT LCD display features a 1024×768 (XGA) resolution and an IPS panel that delivers stable color reproduction and a wide 80/80/80/80 viewing angle. The square-like aspect ratio makes it suitable for industrial user interfaces and legacy system upgrades.

    This module provides a cost-optimized alternative for applications originally designed with 10.4 inch displays from mainstream suppliers, helping reduce overall system cost while maintaining consistent performance and form-factor compatibility.

    The display is suitable for a variety of applications, including industrial HMI, instrumentation, medical equipment, transportation systems, charging stations, and control panels, where long-term stability and readability are important.

    High brightness industrial LCD Specifications

    Número de modelo 90-10401-001
    Talla 10.4
    Resolución 1024*768

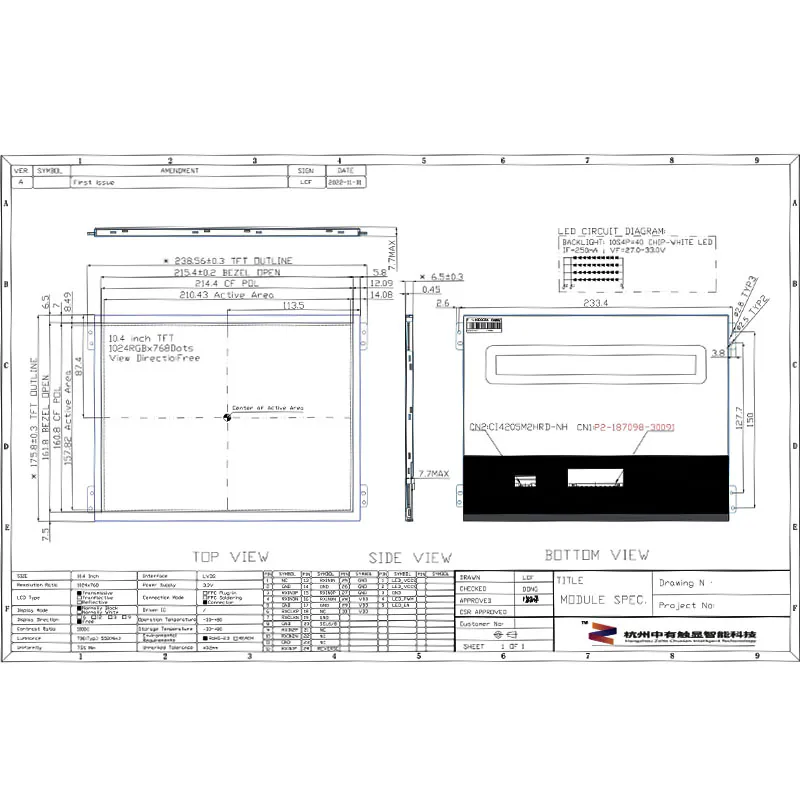

    Contorno Dimensión 238.6*175.8*6.8
    Área activa 210.432*157.824
    Brillo(cd/m²) 700
    Interfaz LVDS
    Ver Dirección IPS
    Temperatura de funcionamiento -30~80
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil NO
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    10.4" TFT Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    10.4-Inch 1024 × 768 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 10.4-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 768 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
