19 inch Bar Type LCD Display with 1920*360 Resolution

SKU: DS20151
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~50℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

19 inch Bar type lcd display Resolution 1920*360 IPS technology Anti-glare treatment and 3H surface hardness for durability

Solicitar precios por volumen







    Descripción

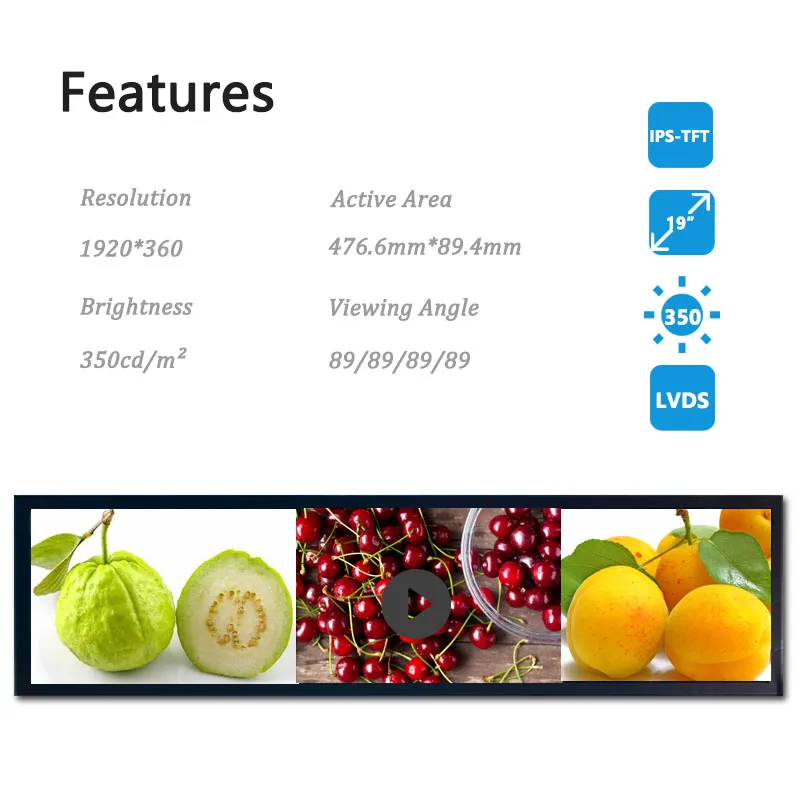

    19" Bar LCD Display Features

    This high-resolution display features a resolution of 1920 x 360 pixels, delivering clear and detailed visuals. With a brightness of 350 Cd/m², it ensures visibility in various lighting conditions. Utilizing IPS (In-Plane Switching) technology, the display offers wide viewing angles of 89° in all directions, enhancing the viewing experience. It is designed for durability, featuring an anti-glare treatment and a 3H surface hardness for added protection. The backlight operates with a power consumption of 240 mA at 61-71V, while the LCD glass requires 5V, making it efficient for a range of applications.



    19" Bar LCD Display Application

    The Monitor is highly versatile, making it suitable for various applications, including industrial control panels, where its high brightness and wide viewing angles facilitate monitoring in diverse environments. In medical devices, the high resolution and IPS technology ensure accurate color representation for equipment like patient monitoring systems and diagnostic tools. Its durability and glare resistance make it ideal for automotive systems, such as infotainment and navigation displays. Additionally, the display's features enhance user interaction in kiosks and vending machines, providing visibility in varying lighting conditions. Finally, its high resolution and IPS technology render it excellent for digital signage applications, including retail and public information displays.

    19" Bar LCD Display Product Specifications

    Tamaño diagonal 19(Diagonal)
    Número de píxeles 1920*360 Pixels
    Luminancia 350

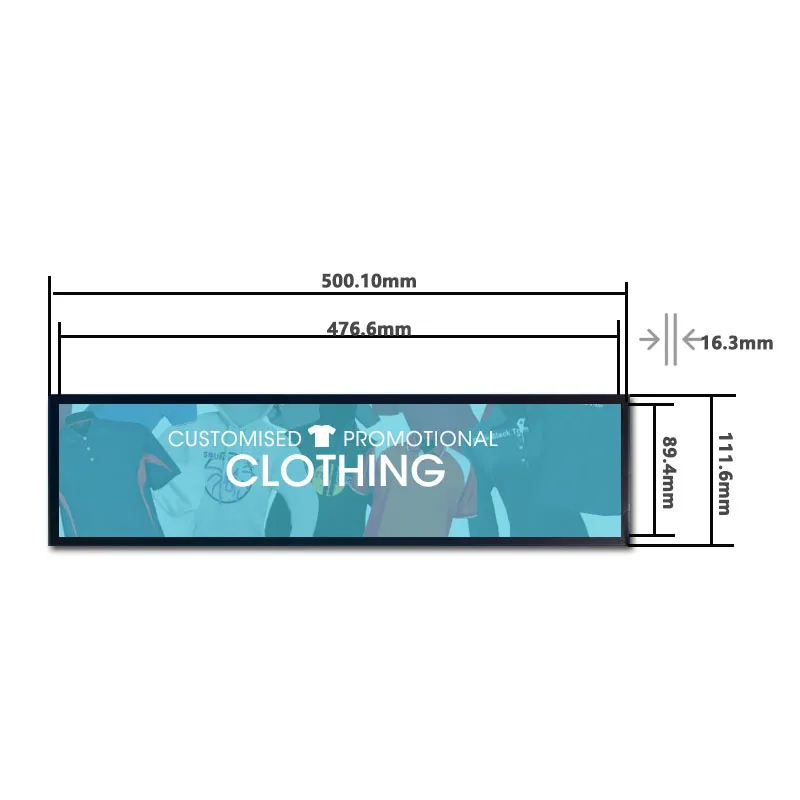

    Tamaño del módulo 500.1*111.6*16.3
    Área activa 476.6*89.4
    Dirección de visualización ALL

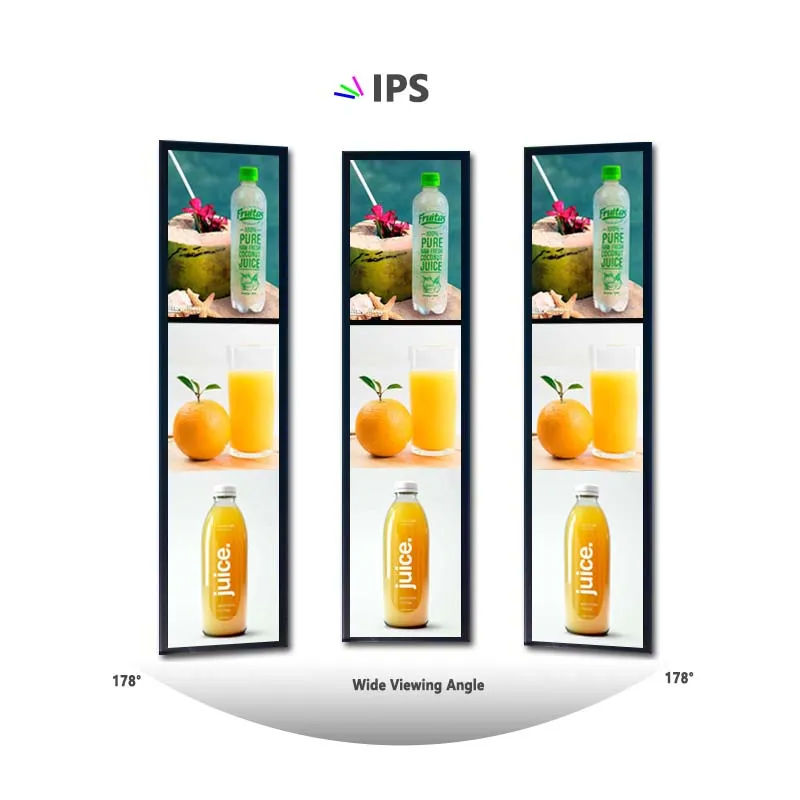

    Ángulo de visión (U/D/R/L) 89/89/89/89
    Treatment Anti glare
    Surface Hardness 3H
    Backlight power 240MA 61~71V
    LCD Glass Power 5V
    - -
    - -
    - -
    - -

    19" Bar LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    19-Inch 1920 × 360 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 19-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 1920 × 360 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~50℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
