2.0 inch Industrial lcd panel Custom MCU/RGB

SKU: DS20005
Tamaño:

Resolución:

Interfaz:

,

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

2.0 inch Industrial lcd panel  170*220 pixels  RGB Interface  FFC ZIF Connection  Customized touch screen MCU/RGB Interface

Solicitar precios por volumen







    Descripción

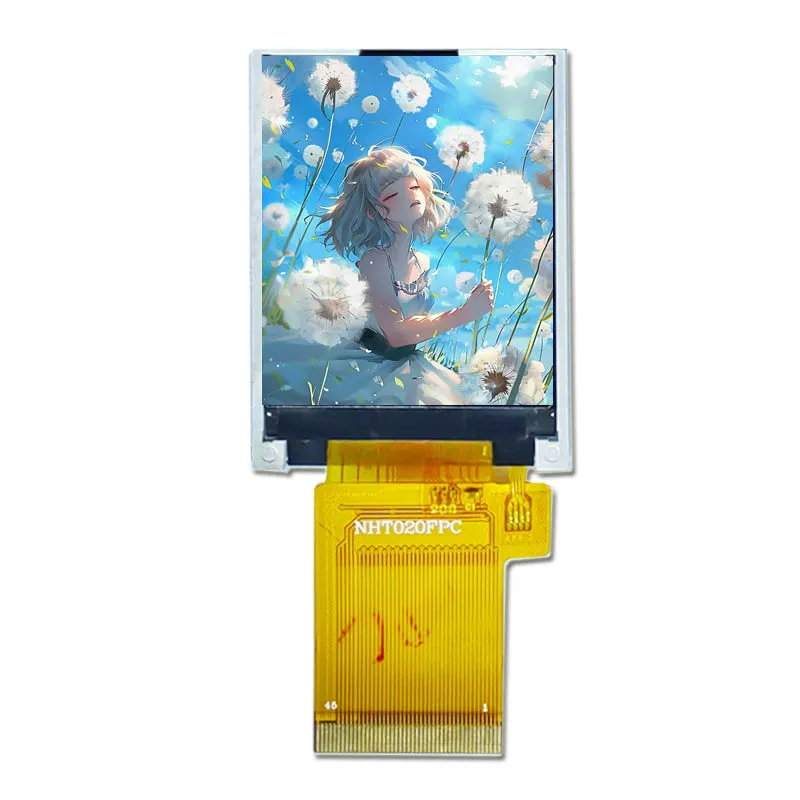

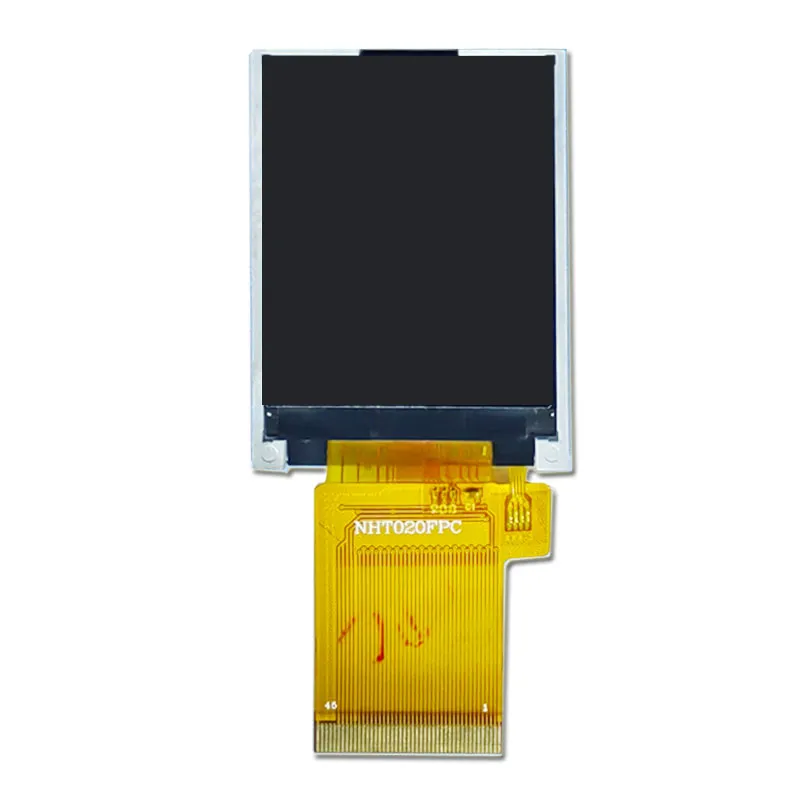

    2.0 inch Industrial lcd panel Module

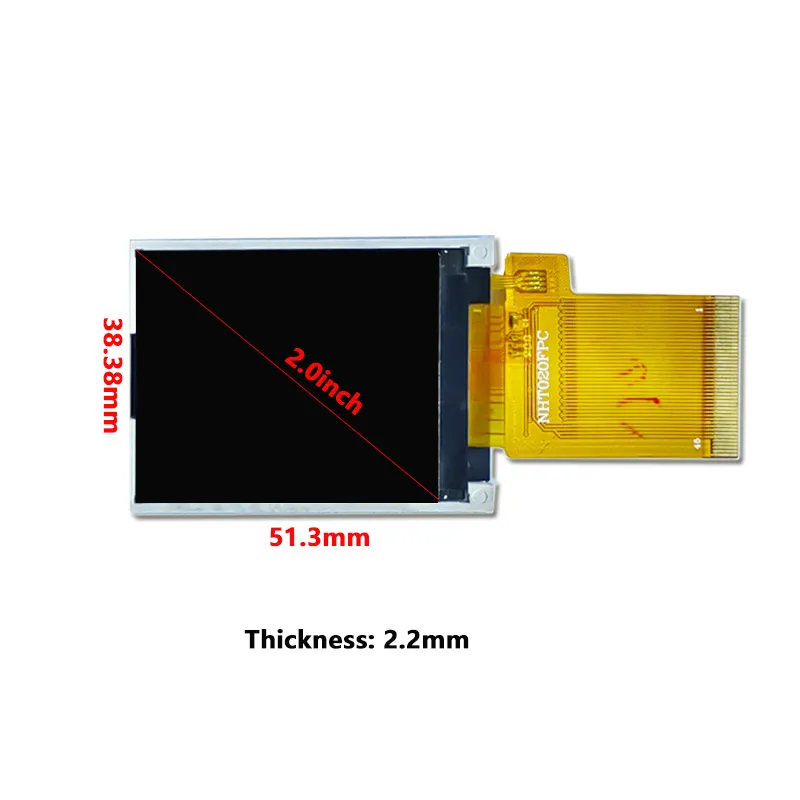

    The 2.0 inch Industrial lcd panel active area measures 31.68 mm x 39.6 mm, while the overall dimensions are 38.38 mm x 51.3 mm x 2.2 mm, making the tft screen suitable for a variety of compact applications. Additionally, its resolution of 176 x 220 pixels, providing bright and clear visuals. MCU / RGB interface allows for smooth data transfer and enhances overall user experience. This lcd module functions within a temperature range of -20°C to 70°C, providing versatility for different environments, such as industrial control, medical wearable devices.



    Tailored to meet specific project requirements

    If your project demands unique dimensions or shapes, we can create custom outlines to fit your design. And also modify temperature tolerance and durability features for specific industrial or outdoor applications. This 2 inch tft display is designed to meet the requirements of various industries, including Io T, industrial automation, and handheld devices. Additionally, its compatibility with micro controllers makes it an excellent option for DIY projects and prototyping.

    2.0" TFT-LCD Product Specifications

    Número de modelo  90-02006-001
    Talla  2.0
    Resolución 176*220
    Contorno Dimensión 38.38*51.3*2.2
    Área activa 31.68*39.6
    Brillo(cd/m²) 350
    Interfaz MCU/RGB
    Ver Dirección 12 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 300:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    2.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Adjust the length, position, and pin out of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

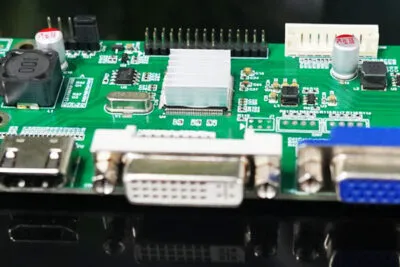

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

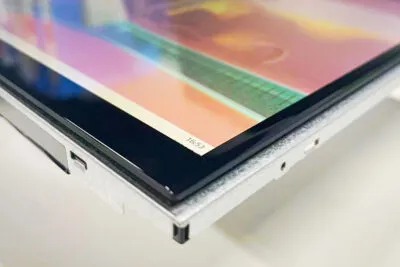

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    2-Inch RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    ,

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
