3.2 inch MCU 240*320 TFT Display Screen

SKU: DS20017
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

300

Compatible con pantallas táctiles:

Tipo de pantalla:

Industrial TFT Display Screen  240*320pixels  MCU Interface  37 pin FFC ZIF Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

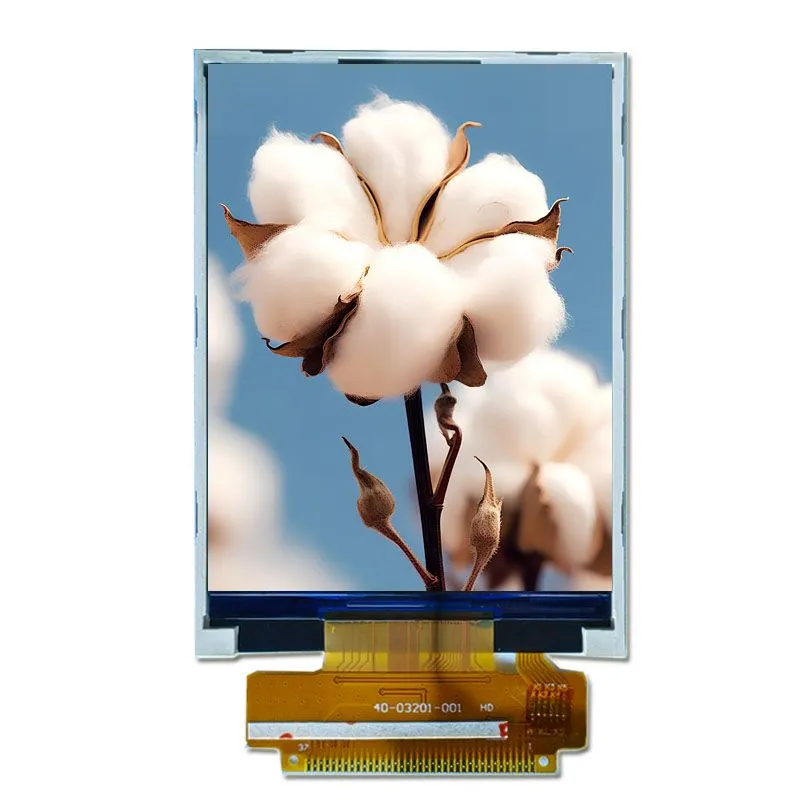

    3.2" MCU TFT Display Screen

    The TFT Display Screen module is designed to provide vibrant visuals with a resolution of 240x320 pixels. This module is ideal for a variety of applications, ensuring clear and sharp images that enhance user interaction. It is idea for embedded systems, including industrial control panels, home automation systems, and robotics, where real-time data display and reliable performance are vital



    Main Features for this 3.2 inch MCU LCD Display

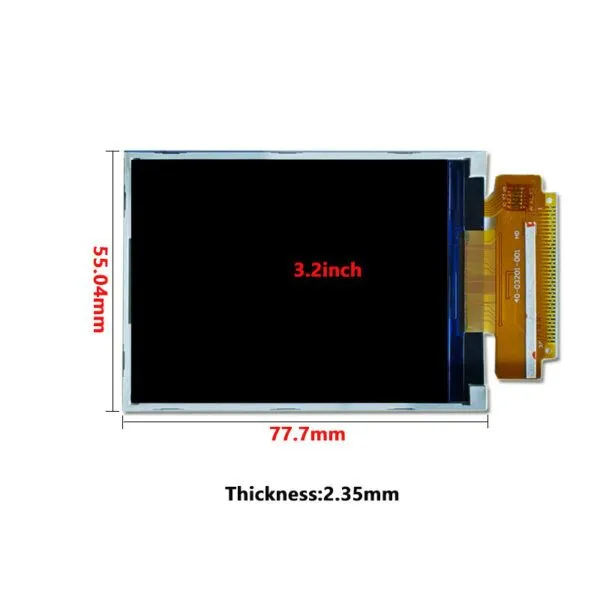

    Measuring 48.6mm x 64.8mm, With overall dimensions of 55.04mm x 77.7mm x 2.35mm, within a temperature range of -20°C to 70°C and can be safely stored at temperatures from -30°C to 80°C, providing flexibility for different environments. Utilizing an MCU (Microcontroller Unit) interface, this display allows for seamless integration with microcontrollers, facilitating efficient data transfer and communication for enhanced performance in applications.

    3.2" TFT-LCD Product Specifications

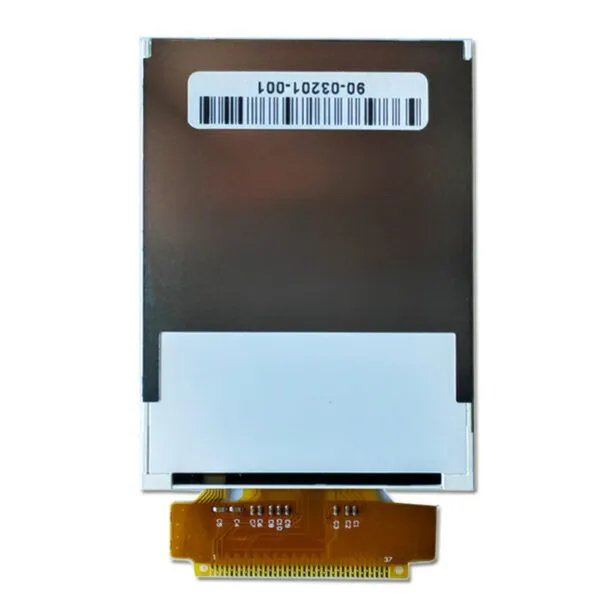

    Número de modelo  90-03201-001
    Talla  3.2
    Resolución 240*320
    Contorno Dimensión 55.04*77.77*2.3
    Área activa 46.8*64.8
    Brillo(cd/m²) 300
    Interfaz MCU
    Ver Dirección 12 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3.2" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    3.2-Inch 240 × 320 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.2-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 320 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    300

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
