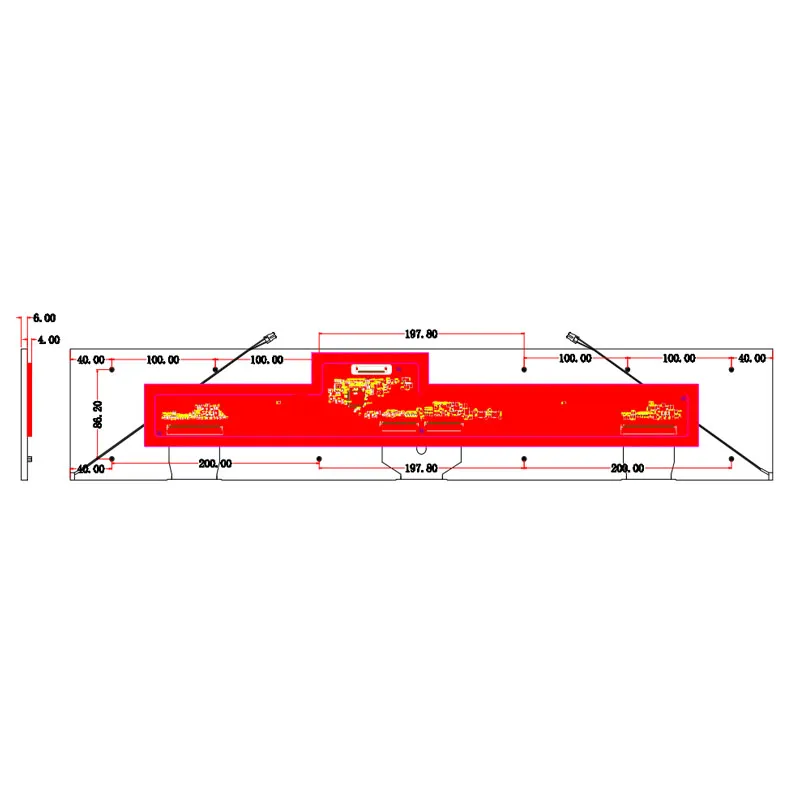

Pantalla LCD industrial de barras de 26,2 pulgadas y alta resolución de 4320*720 píxeles con interfaz EDP

SKU: DS20150
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

850

Compatible con pantallas táctiles:

Tipo de pantalla:

26.2 inch Industrial Bar LCD Display, offering resolution 4320*720, AA size 590.4 x110.7mm, Brightness 850cd/m²,wide temperature -30~85℃

Solicitar precios por volumen







    Descripción

    26.2" Bar LCD Display General Desription

    26.2 Industrial Bar LCD Display is a LTPS & Transmissive type Thin Film Transistor Liquid Crystal
    Display (TFT-LCD) with AHVA (Advanced Hyper View Angle) and in cell touch technology.
    This model is composed of a TFT-LCD, TDDI IC, FPC,lens lamination with OCA and eDP
    bridge PCBA.



    26.2" Bar LCD Display Features

    26.2-inch (6:1) display

    In Cell Touch sensor

    4320RGB x 720 resolution in RGB stripe dot arrangement

    Interfaces: eDP*4Lane

    Advanced Hyper View Angle – Normal Black wide view technology

    RoHs compliance

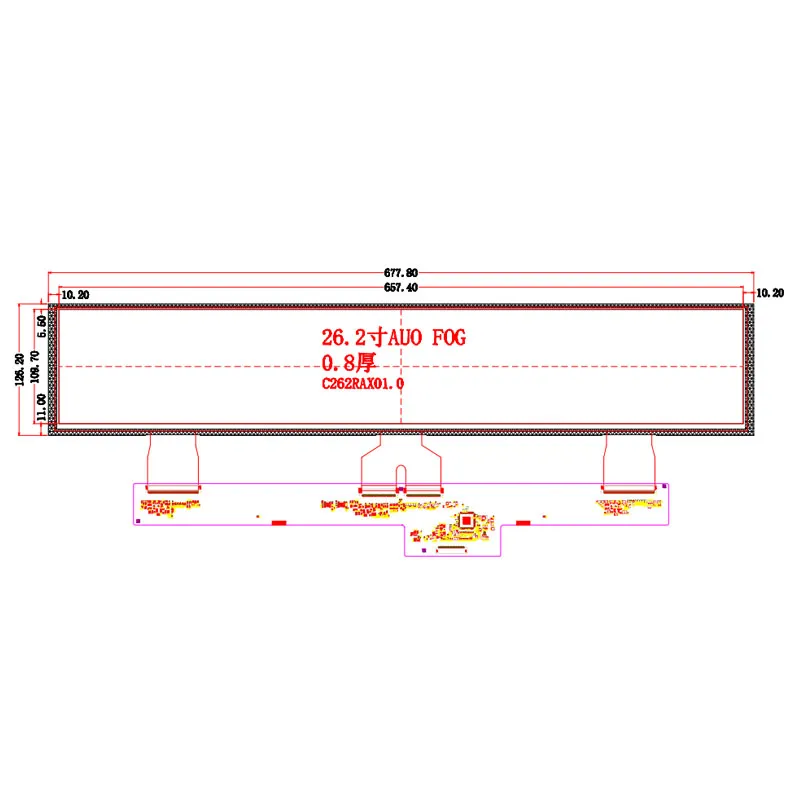

    26.2" Bar LCD Display Product Specifications

    Tamaño diagonal 26.2"(Diagonal)
    Número de píxeles 4320*720 Pixels
    Luminancia 850
    Tamaño del módulo 739.29x182.84x57.5
    Área activa 657.07 x109.51
    Dirección de visualización ALL
    Ángulo de visión (U/D/R/L) 80/80/80/80
    Interfaz LVDS
    Relación de contraste 1200
    Temperatura de funcionamiento -30~85℃
    Temperatura de almacenamiento -40~95℃
    - -
    - -
    - -
    - -

    26.2" Bar LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    26.2-Inch 4320 × 720 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 26.2-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 4320 × 720 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 850 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
