Pantalla industrial robusta de 3,5 pulgadas 320*480 MCU ST7701

SKU: DS20027
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

3.5 inch Rugged Industrial Display,  320*480 Pixels,  Serial MCU Interface  40 pin FFC ZIF Connection, EU RoHS certified industrial screen

Solicitar precios por volumen







    Descripción

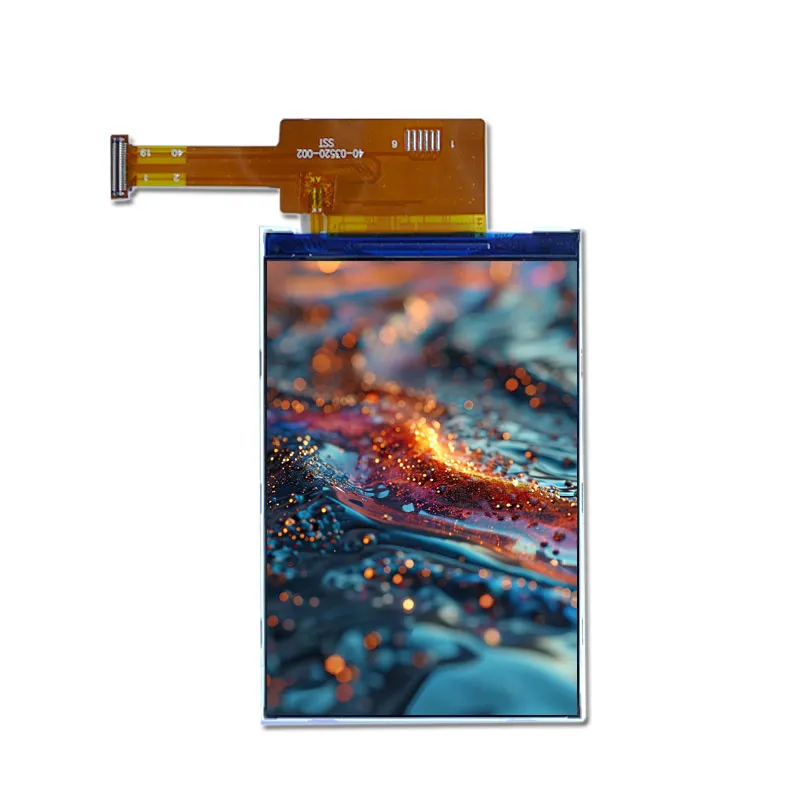

    3.5 inch Rugged Industrial Display

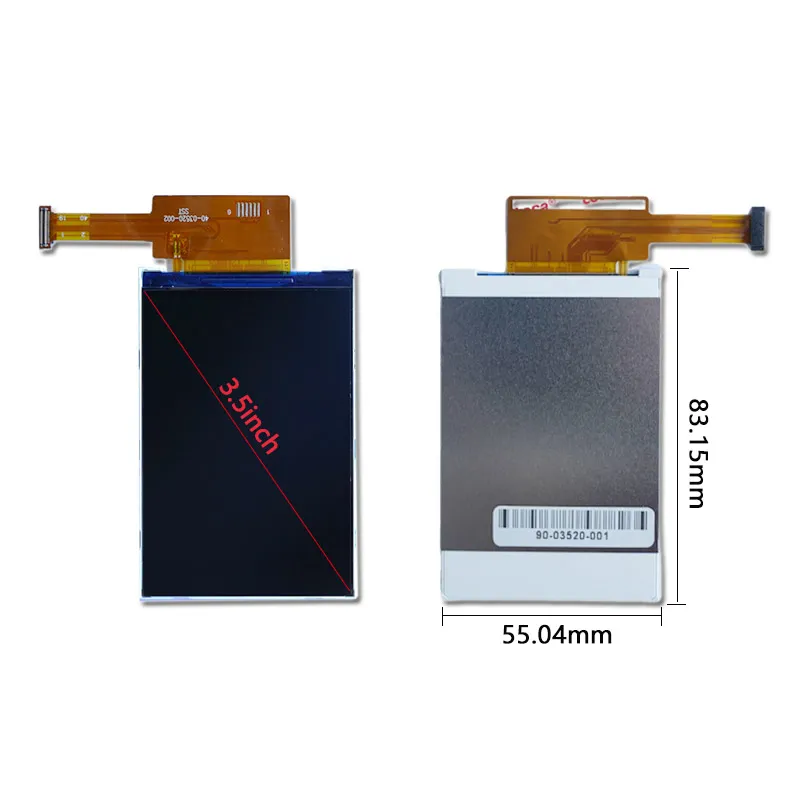

    The 3.5 inch rugged industrial display features a resolution of 320x480 pixels, making it ideal for various applications that require compact and effective displays. It offers an active area of 48.96mm x 73.44mm and overall dimensions of 55.04mm x 83.15mm x 2.2mm, allowing for easy integration into diverse device designs. It operates efficiently within a temperature range of -20°C to 70°C and can be stored at temperatures from -30°C to 80°C, making it versatile for different environments. The display utilizes a 40-pin MCU interface, facilitating seamless integration with modern microcontrollers for efficient data transfer and communication.



    3.5” TFT LCD Performance Reliability and Stability

    The operating temperature range of -20°C to 70°C for the 3.5-inch TFT-LCD display module is essential for ensuring reliable functionality across various environments. This wide range allows for versatile applications, making the display suitable for consumer electronics, industrial equipment, and environments with fluctuating temperatures, such as outdoor settings and medical facilities. Additionally, operating within this specified range helps maintain the integrity of electronic components, preventing issues like reduced brightness and color distortion that can arise from extreme temperatures. The robust design of the display ensures it can withstand these conditions without failure, enhancing its reliability and durability.

    3.5" TFT-LCD Product Specifications

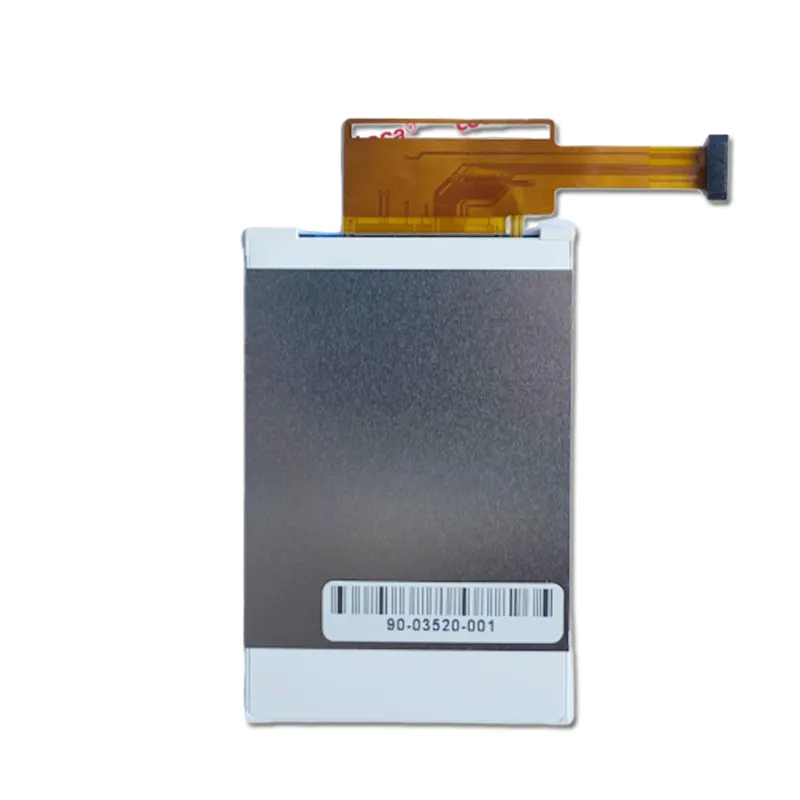

    Número de modelo  90-03520-001
    Talla  3.5
    Resolución 320*480
    Contorno Dimensión 55.04*83.15*2.2
    Área activa 48.96*73.44
    Brillo(cd/m²) 350
    Interfaz MCU
    Ver Dirección 6 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    3.5-Inch 320 × 480 LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
