3.5 TFT LCD Display 320*480 RGB Interface Industrial Grade

SKU: DS20030
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

450

Compatible con pantallas táctiles:

Tipo de pantalla:

3.5 tft lcd display,  320*480 Pixels,  Serial RGB Interface 40pin FFC Connection,  rugged industrial displays, ropical climate-resistant LCD

Solicitar precios por volumen







    Descripción

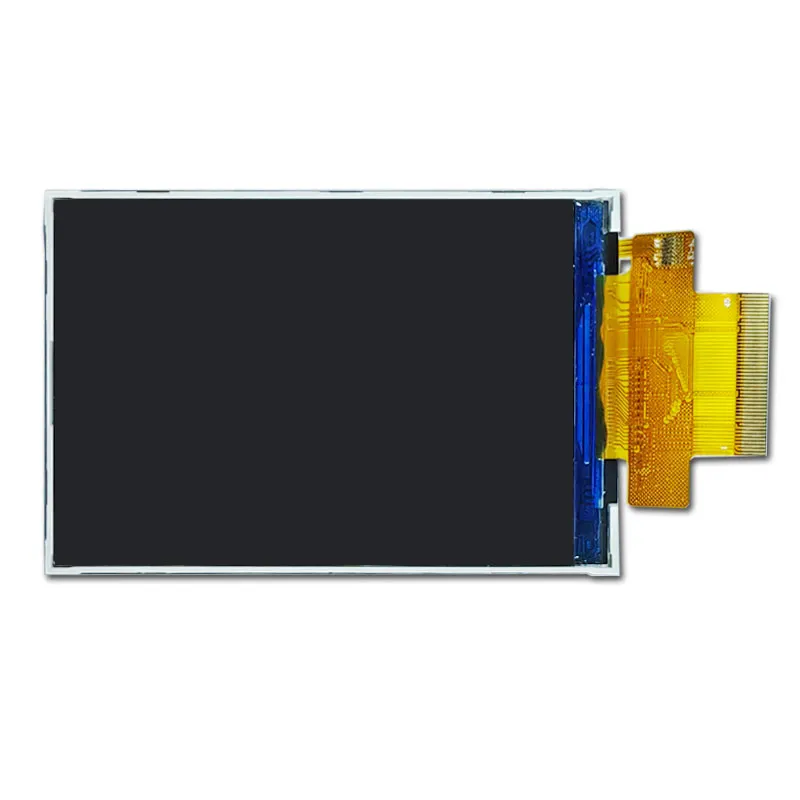

    3.5 TFT LCD Display Overview

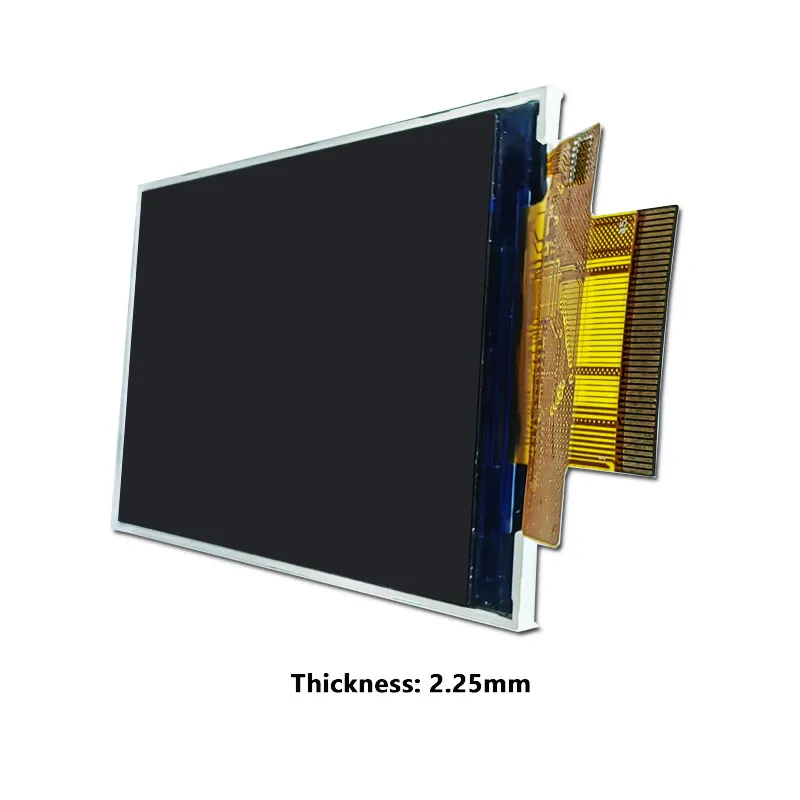

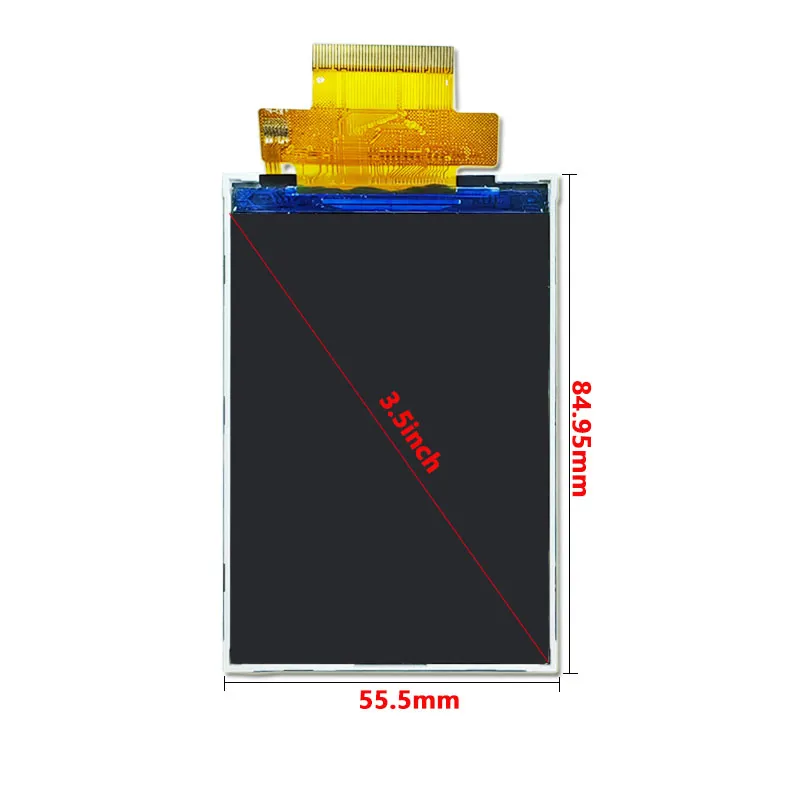

    The 3.5 tft lcd display features a resolution of 320 x 480 pixels, providing sharp images within an active area of 48.96 mm x 73.44 mm. With compact outline dimensions of 54.5×83×2.25mm for a sleek design, it offers 70° horizontal/60° vertical viewing angles for good multi-perspective visibility. With a brightness of 450 cd/m² and a contrast ratio of 500:1, it delivers clear visuals even in bright conditions.  It With a 20,000-hour lifespan, the display operates effectively at -20°C to 70°C and stores at -30°C to 80°C.
    Its RGB 40 interface facilitates easy integration with microcontrollers and a variety of devices, making it versatile for numerous applications.



    3.5 tft lcd display with Low Power Consumption

    The 3.5 inch TFT LCD display is designed for energy efficiency, making it ideal for battery-operated devices. Its low power consumption is achieved through efficient LED backlighting and optimized circuitry, ensuring high brightness and image quality without excessive energy use. Users can adjust brightness settings to conserve power in less demanding lighting conditions, which also extends the display's lifespan. Additionally, advanced power management features, such as sleep modes and automatic dimming, further reduce energy consumption when the display is not in active use, enhancing battery life in portable applications

    3.5 tft lcd display Product Specifications

    Número de modelo  90-03528-001
    Talla  3.5
    Resolución 320*480
    Contorno Dimensión 54.5*83*2.25
    Área activa 48.96*73.44
    Brillo(cd/m²) 450
    Interfaz RGB
    Ver Dirección 12 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    3.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable so lution.

    3.5-Inch 320 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 450 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    450

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
