38.5 inch Stretched LCD Display LVDS Interface 700cd/m2 High Brightness

SKU: DS20157
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~50℃

Brillo (cd/m²):

700

Compatible con pantallas táctiles:

Tipo de pantalla:

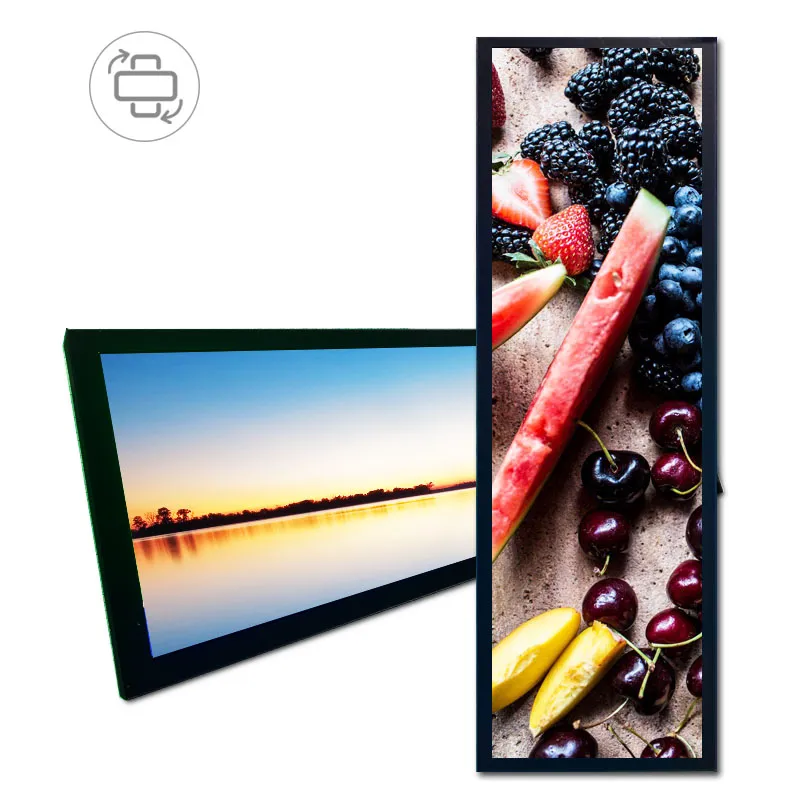

38.5 inch Stretched LCD Display, Offering resolution 1920*560, Brightness 700cd/m2, AA SIZE 941.184(H) x 264.708(V)mm, LVDS Interface, Operating Temperature 0~50℃

Solicitar precios por volumen







    Descripción

    38.5" Bar LCD Display General Description

    This 38.5 inch stretched lcd display is designed for tft-lcd TV, indoor and ourdoor advertisement, with resolution 1920*560, and 16.7M colors, 8-bit (D).t is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit. The 38.5 inch bar lcd offers LVDS interface for display signal input. We also supply this 38.5 inch monitors and digital signage.

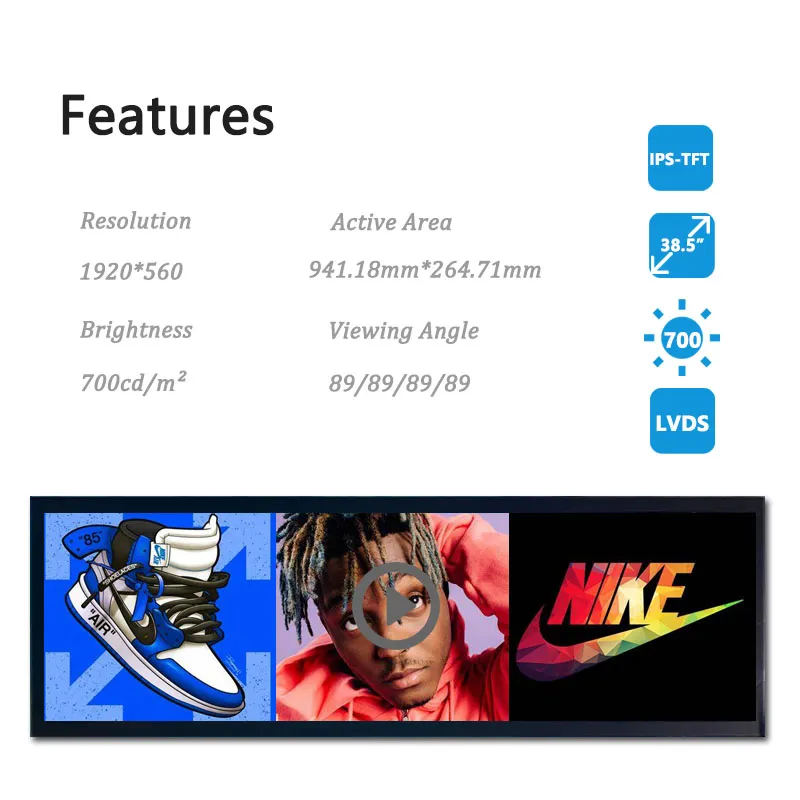

    38.5" Bar LCD Display Features

    --Super Wide viewing angle
    --Super High contrast ratio
    --Super Fast response time
    --DE(Data Enable ) only mode
    --LVDS Interface
    --RoHS compliance

    38.5" Bar LCD Display Product Specifications

    Tamaño diagonal 38.5"(Diagonal)
    Número de píxeles 1920*560 Pixels
    Luminancia 700

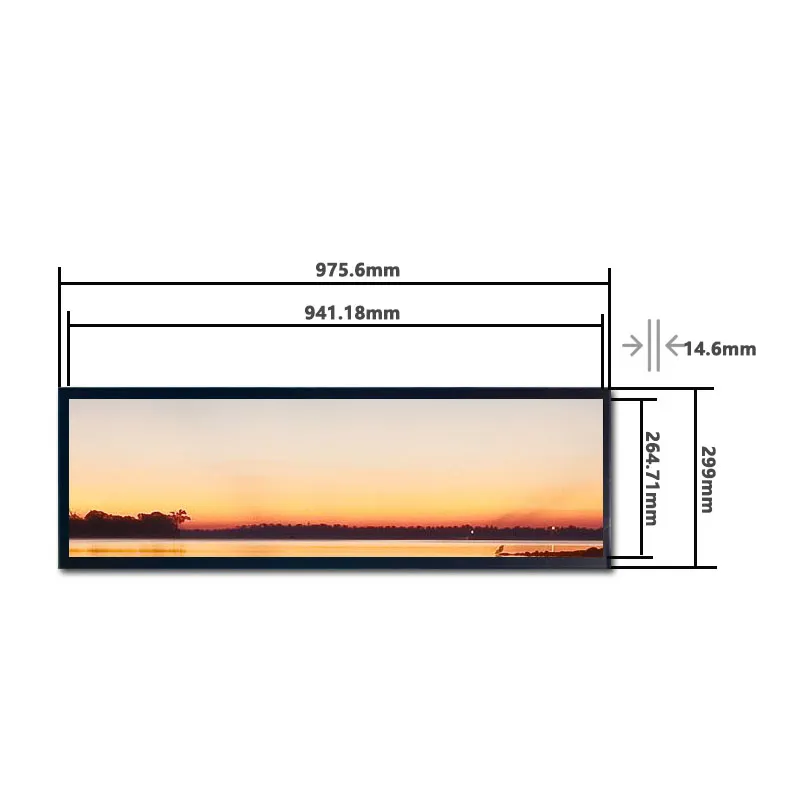

    Tamaño del módulo 975.6*299*14.6
    Área activa 941.184*264.708
    Dirección de visualización ALL
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Treatment Anti-glare
    Surface Hardness 3H
    Life Span 50k
    Interfaz LVDS
    Temperatura de funcionamiento 0~+50℃
    Temperatura de almacenamiento -20~+60℃
    - -
    - -

    38.5" Bar LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    38.5-Inch 1920 × 560 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 38.5-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 1920 × 560 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 700 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
