4.3 inch IPS LCD Screen 480*272 RGB ST7282

SKU: DS20036
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

4.3 TFT Display Screen  480*272 Pixels  Serial RGB Interface  40pin FFC Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

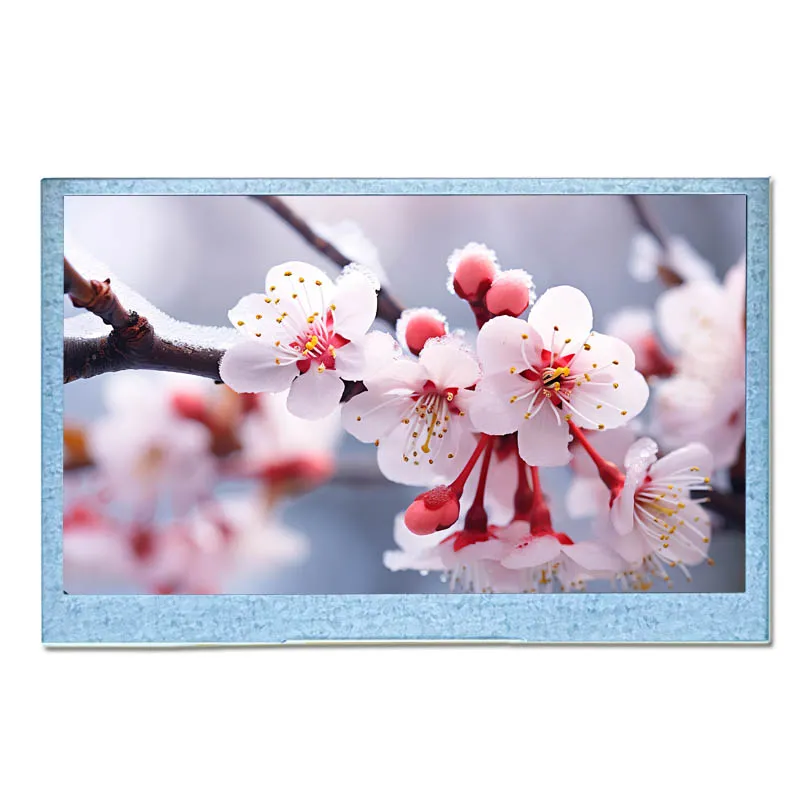

    4.3" TFT Display Overview

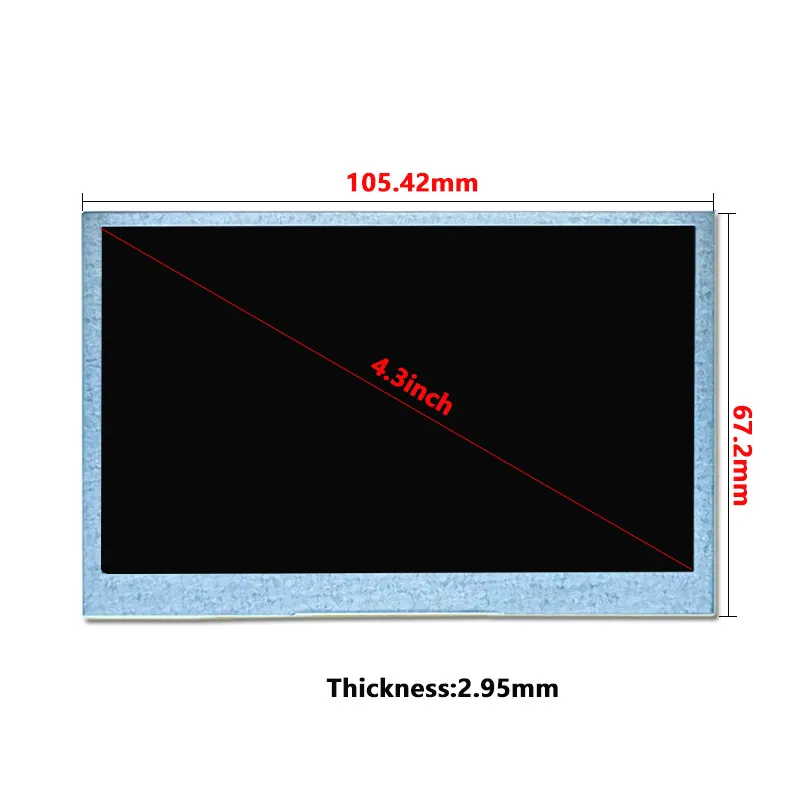

    The 4.3 inch IPS LCD Screen features a resolution of 480 x 272 pixels, providing crisp visuals within an active area of 95.04 mm x 53.856 mm. With sleek outline dimensions of 105.42 mm x 67.2 mm x 2.95 mm, it offers a modern design suitable for various devices. The display supports a viewing angle of 85° in all directions, ensuring excellent visibility without distortion and allows for flexible installation options. It boasts a brightness of 350 cd/m² and a contrast ratio of 1000:1, delivering vibrant colors and sharp images. With an LED lifetime of 20,000 hours, it ensures reliable operation, while operating temperatures range from -20°C to 70°C and storage temperatures from -30°C to 80°C, making it suitable for diverse environments. The RGB 40 interface facilitates easy integration with various microcontrollers and devices.



    4.3" TFT LCD with Wide Viewing Angle

    The 4.3-inch TFT LCD display boasts an impressive 85° viewing angle in all directions, ensuring enhanced visibility and legibility from various positions, making it ideal for multi-user applications. This wide viewing angle reduces color distortion, maintaining color accuracy and brightness even at extreme angles, which is essential for digital signage and interactive kiosks. Additionally, it allows for flexible installation options across diverse environments, such as automotive dashboards and control panels, without compromising user experience.

    4.3" TFT-LCD Product Specifications

    Número de modelo  90-04305-BH1
    Talla 4.3
    Resolución 480*272
    Contorno Dimensión 105.42*67.2*2.95
    Área activa 95.04*53.856
    Brillo(cd/m²) 350
    Interfaz RGB
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    4.3" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    4.3-Inch 480 × 272 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 4.3-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 480 × 272 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluciones de exposición personalizadas

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
