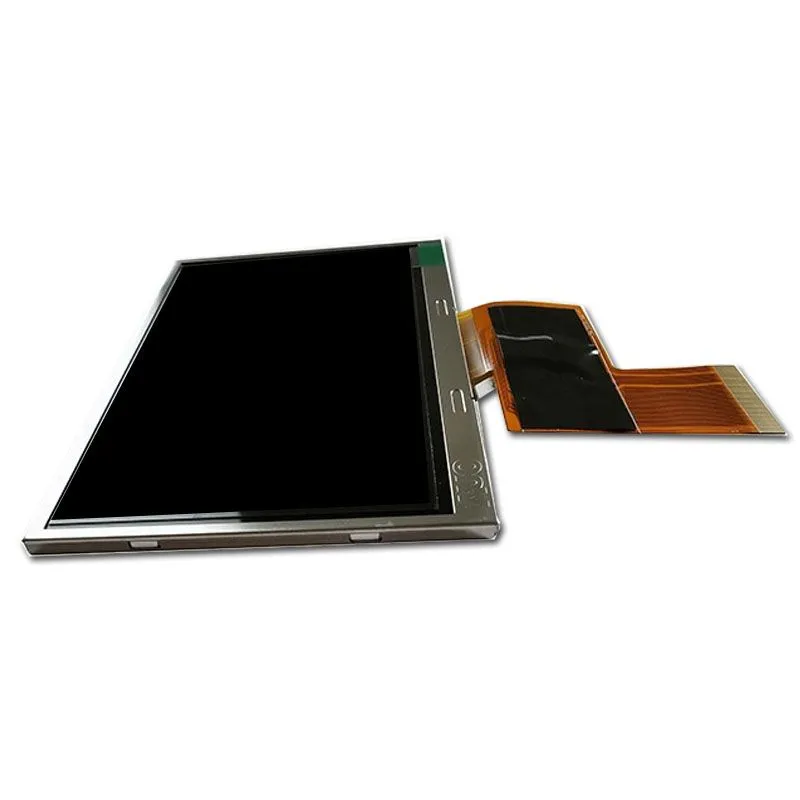

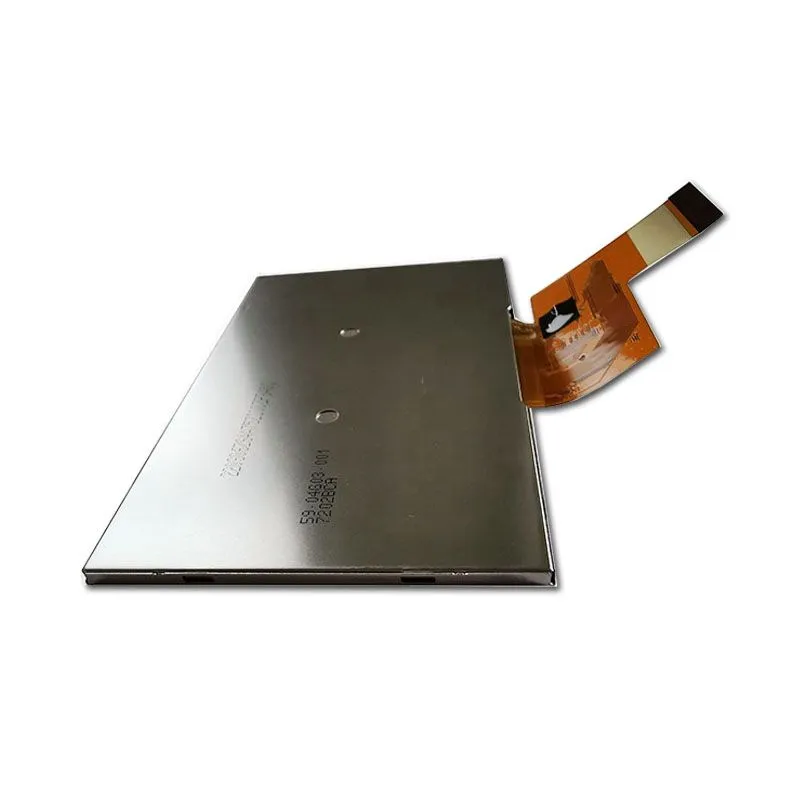

4.3" LCD TN Panel AUO G043FTT01.0 480x272, 400nits, RGB, Wide Temp (-0~70°C), 30K Hrs

SKU: DS50104
Tamaño:

Número de modelo

G043FTT01.0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~70℃

Brillo (cd/m²):

400

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

4.3" TN industrial LCD with 480x272 resolution, 400nits brightness, RGB interface. Operates in -0~70°C, 30,000hrs lifespan. Ideal for harsh environments.

Solicitar precios por volumen







    Descripción

    G043FTT01.0 Key Features:

    The AUO G043FTT01.0 LCD TN Panel is a robust 4.3-inch TN LCD module engineered for industrial and outdoor applications. Featuring a 480x272 resolution and 400nits high brightness, it delivers clear visibility even under direct sunlight. Built to endure extreme conditions, it operates seamlessly across a wide temperature range of -0°C to 70°C and offers a long lifespan of 30,000 hours, minimizing maintenance costs.
    Equipped with an RGB interface for stable signal transmission, this panel supports a viewing angle of 65°(U)/65°(D)/50°(L)/55°(R), ensuring flexible installation in diverse environments. Its TN technology balances performance and cost-efficiency, making it ideal for industrial control systems, portable devices, outdoor instruments, and IoT terminals.



    Advantages:

    ✅ 400nits brightness for outdoor readability
    ✅ Wide operating temperature (-0~70°C)
    ✅ 30K-hour durability for reduced downtime
    ✅ Compact design with standard RGB compatibility

    4.3" LCD TN Panel Product Specifications

    Número de modelo G043FTT01.0
    Talla 4.3
    Resolución 480*272
    Contorno Dimensión 105.5×67.2×4.33
    Área activa 95.04×53.856
    Brillo(cd/m²) 400
    Interfaz RGB
    Ver Dirección TN
    Temperatura de funcionamiento 0~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 10000
    Soporte de pantalla táctil Sin
    Relación de contraste 400:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    4.3" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G043FTT01.0 4.3-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G043FTT01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 4.3-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO G043FTT01.0?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G043FTT01.0 compare with the Innolux AT043TN24V.7?

    Both catalog listings show 4.3 inches, 480 × 272 and RGB. The catalog lists 0 °C to +70 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux AT043TN24V.7

    Is the AUO G043FTT01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G043FTT01.0

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~70℃

    Brillo (cd/m²):

    400

    Compatible con pantallas táctiles:

    Tipo de pantalla:
