5 inch Outdoor TFT Display 800*480 pixels RGB

SKU: DS20043
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~80℃

Brillo (cd/m²):

800

Compatible con pantallas táctiles:

Tipo de pantalla:

5 outdoor lcd display  800*480 Pixels  Serial RGB Interface  40pin FFC Connection  Customized touch screen

Solicitar precios por volumen







    Descripción

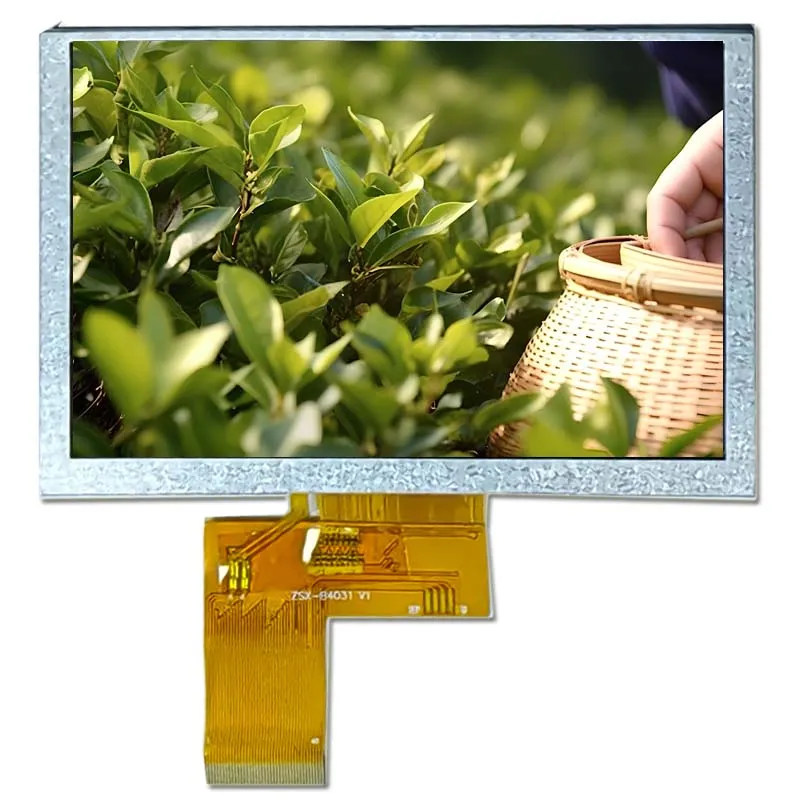

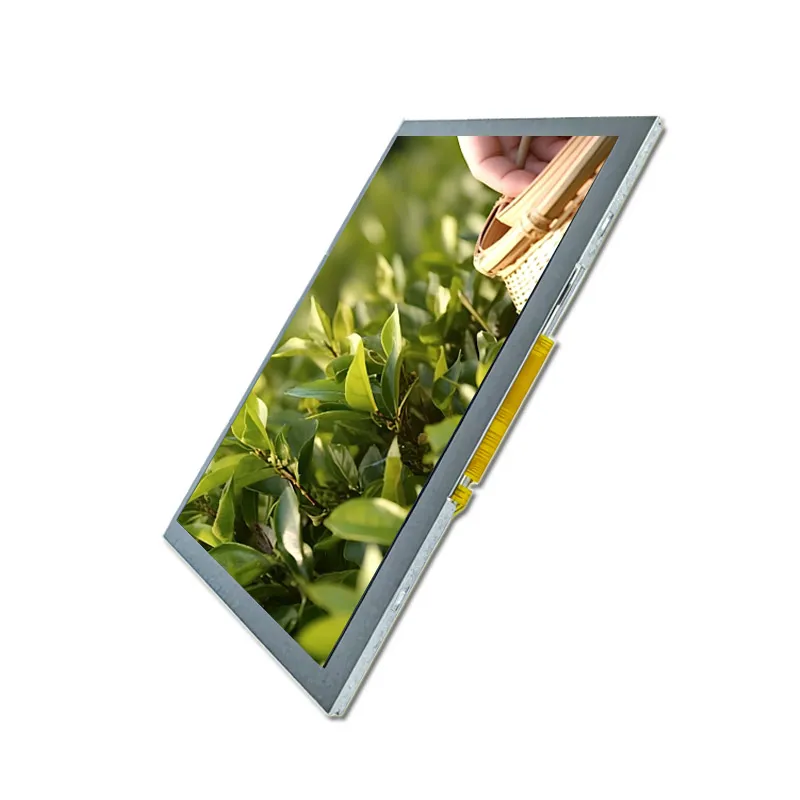

    5" TFT LCD Screen Overview

    The 5 inch Outdoor TFT Display features an 800 x 480 pixels resolution, providing clear and vibrant images for an enhanced viewing experience. With an active area of 108 mm x 64.8 mm and outline dimensions of 120.8 mm x 75.85 mm x 2.9 mm, it boasts a sleek profile for easy integration into various devices. The display offers an 80° viewing angle in all directions, ensuring consistent visibility and color accuracy, along with a brightness of 800 cd/m² for excellent visibility in bright conditions. Its 1500:1 contrast ratio delivers rich colors and sharp image quality, while an LED lifetime of 20,000 hours ensures long-lasting performance. Designed for versatility, it operates within a temperature range of -20°C to 70°C and can be stored between -30°C to 80°C, making it suitable for diverse environments.



    5" TFT LCD Display with High Brightness

    The 5-inch TFT LCD display features a brightness level of 800 cd/m², significantly enhancing its performance in various environments. This high brightness ensures clear visibility in bright lighting conditions, making it ideal for outdoor and well-lit indoor applications, allowing users to view content without eye strain. Additionally, it improves color perception by showcasing vibrant colors and sharp contrasts, which is essential for multimedia, gaming, and graphic design. Its elevated brightness makes it suitable for a wide range of applications, including automotive displays, kiosks, industrial equipment, and handheld devices, where high visibility is crucial.

    5.0" TFT-LCD Product Specifications

    Número de modelo  90-05008-001
    Talla 5.0
    Resolución 800*480
    Contorno Dimensión 102.8*75.85*2.9
    Área activa 108*64.8
    Brillo(cd/m²) 800
    Interfaz RGB
    Ver Dirección ALL
    Temperatura de funcionamiento -30~80
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 1500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    5.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    5-Inch 800 × 480 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 800 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 5-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 800 × 480 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~80℃

    Brillo (cd/m²):

    800

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
