5 inch TFT Display with Raspberry PI Keyboard on Screen

SKU: DS20236
Tamaño:

Resolución:

Interfaz:

Compatible con pantallas táctiles:

Board Support

Raspberry Pi, BB Black, Banana Pi

Raspberry PI Keyboard on Screen,5 inch, resolution 800×480, with HDMI interface, Compatible with Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC, no need for custom hardware, plug and play

Solicitar precios por volumen







    Descripción

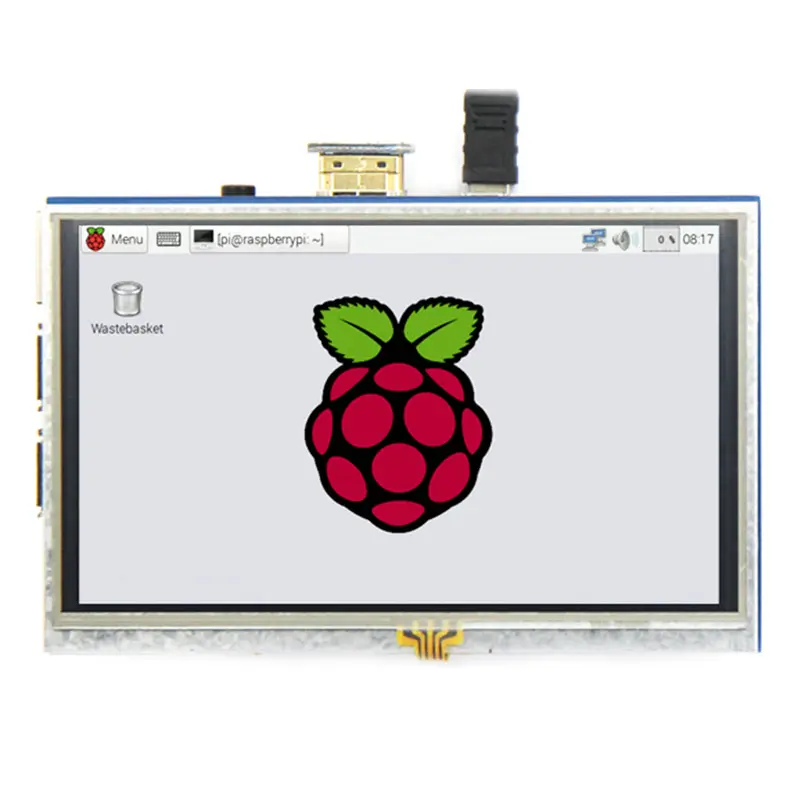

    Raspberry PI Keyboard on Screen :

    5inch standard display, 800 × 480 resolution
    With resistive touch screen, support touch control
    support backlight control alone, the backlight can be turned off to save power

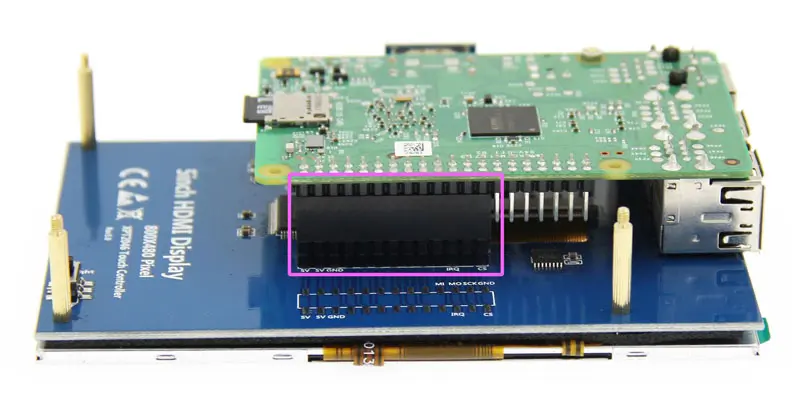

    supports standard HDMI interface input, compatible with and can be directly inserted with Raspberry Pi (3rd, 2nd, and 1st generation)
    can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display (resolution need to be able to force output for 800 x480)

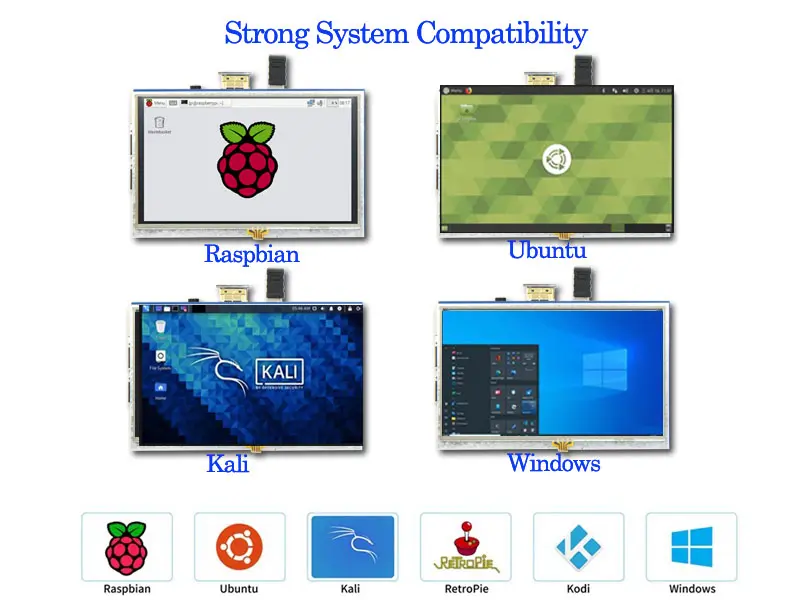

    used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi(no touch), win10 IOT(no touch)
    work as a PC monitor, support XP,win7, win8, win10 system(do not support touch)
    CE, RoHS certification


    Product Pictures

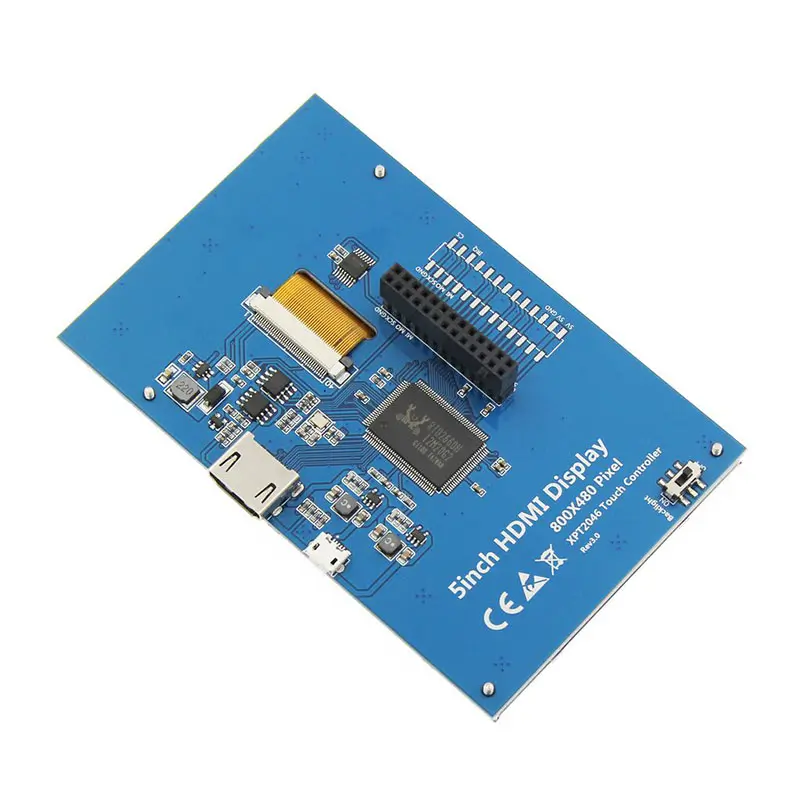

    raspberry pi screen

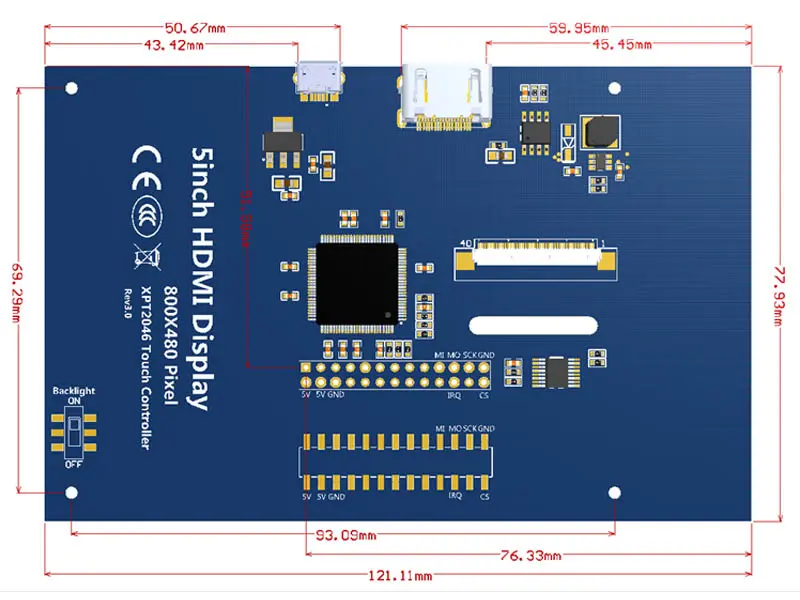

    raspberry pi keyboard on screensize

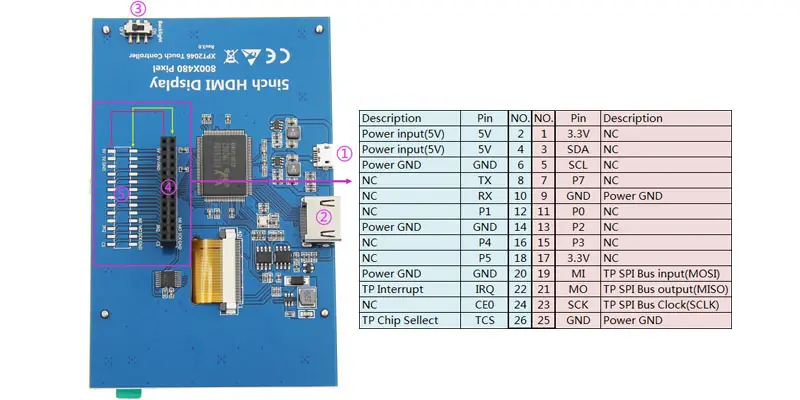

    Interface Function:
    Interface Introduction
    Button& Interface Note
    ① USB power supply interface USB power input (5V). If the mother socket in Figure ④ is connected to the Raspberry Pi for power, this USB port can be left unconnected
    ② HDMI interface used to connect the motherboard and LCD display for HDMI transmission
    ③ Backlight switch control the backlight on and off to save power
    ④ Power and touch interface power the LCD screen from the Raspberry Pi, and transmit the touch signal back to the Raspberry Pi through GPIO
    ⑤ Expansion interface PIN to PIN lead out the GPIO port occupied by the mother socket in Figure ④ for easy expansion

    5" Raspberry Pi Screen Key Parameters :

    Size(inch) 5
    Resolution(pixels) 800*480
    Display material IPS TFT panel
    Touch 4 wire resistive
    Module power 0.34A*5V
    Module size(mm) 121.11*77.93
    Package Dimention 105.11*64.80
    Product weight(g) 206

    Descargar

    5-Inch 800 × 480 Raspberry Pi Display FAQ

    Can I mount this display with my Raspberry Pi and still reach the connectors?

    Use the 5-inch diagonal to shortlist display assemblies, then check the exact drawing for fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

    Will this display work with my Raspberry Pi model and OS image?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

    Raspberry Pi screen guide

    How should I compare this screen with another Raspberry Pi display?

    Try your application in its intended orientation on a 800 × 480 canvas before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Judge readability on the assembled product with its final cover and ambient lighting.

    Can I change the mounting, cable set, or touch configuration?

    Send the Pi model, OS version, available ports and enclosure drawing. We can review mounting and cable options and confirm how video, power and any touch input will be connected for the proposed configuration.

    What should I send for a Raspberry Pi display sample quote?

    Include the Pi and OS details, panel drawing, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
