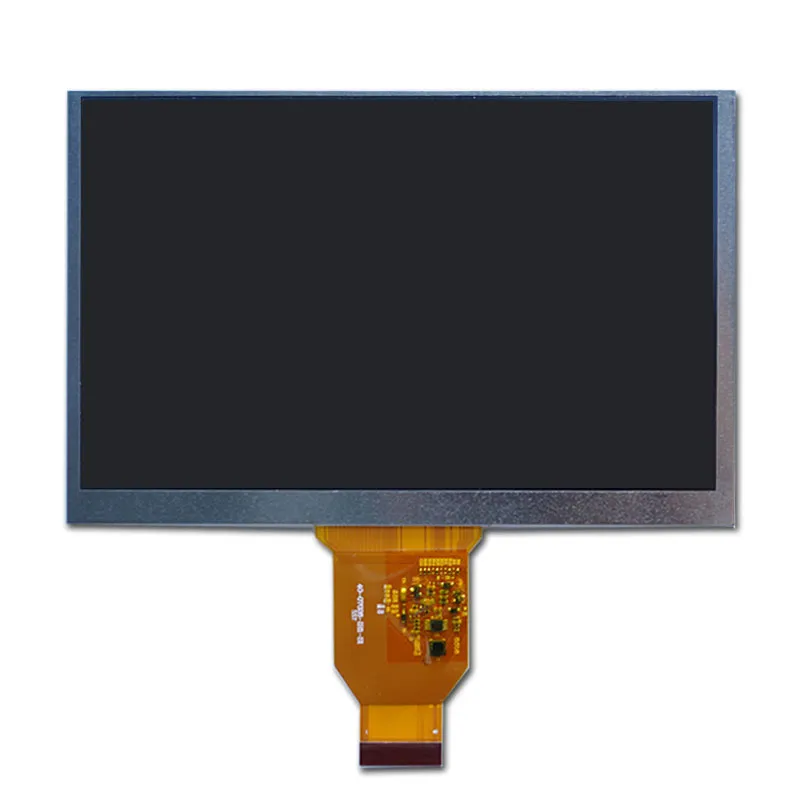

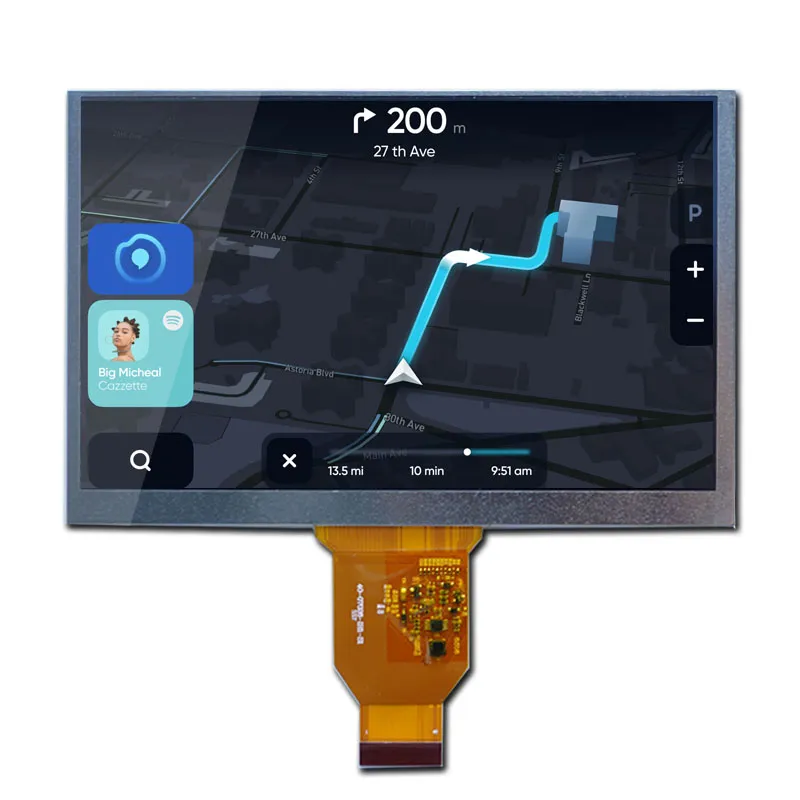

7 inch TFT 800*480 RGB LCD Display Panel

SKU: DS20061
Tamaño:

Interfaz:

Resolución:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

7 inch lcd display panel, offering resolution 800*480 Pixels, with Serial RGB Interface  40 pin FFC connection  can custom capacitive and resistive touch screens

Solicitar precios por volumen







    Descripción

    7" LCD Display Panel Features

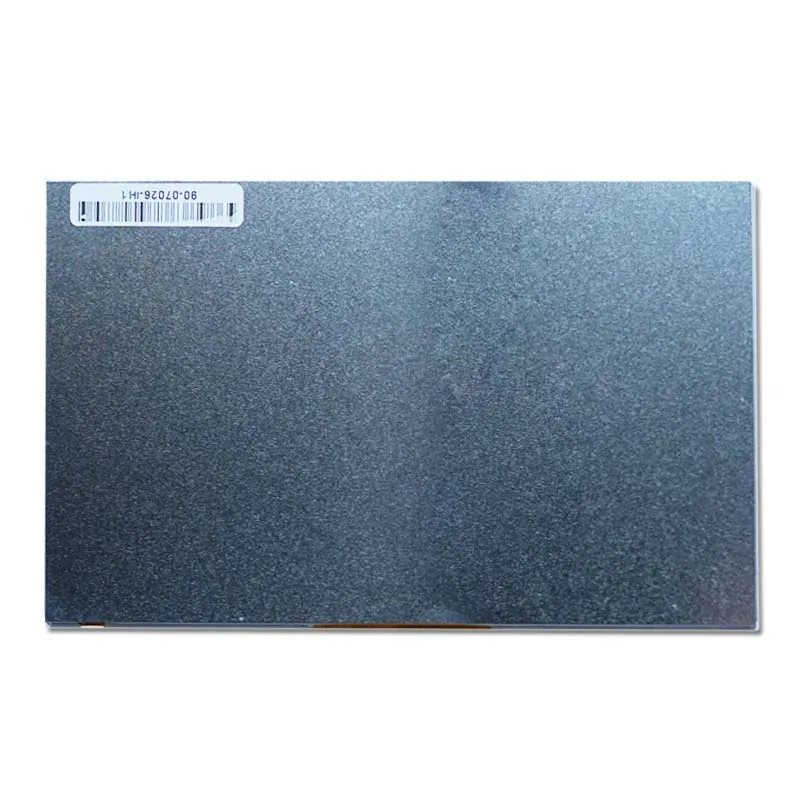

    The 7 inch LCD Display Panel (Model: 90.07026-IH1) features a resolution of 800x480 pixels, With a brightness level of 500 cd/m², it guarantees visibility in diverse lighting conditions. The contrast ratio of 1000 enhances clarity and richness, making content easily readable.



    7" TFT Display with Low Power Consumption

    3.3V low power consumption of the 7.00-inch TFT-LCD display module enhances its suitability for energy-efficient applications, particularly in portable and battery-operated devices. This feature not only extends battery life and reduces heat generation but also maintains high performance and visual quality, making it an ideal choice for modern electronics while promoting sustainable technology practices.

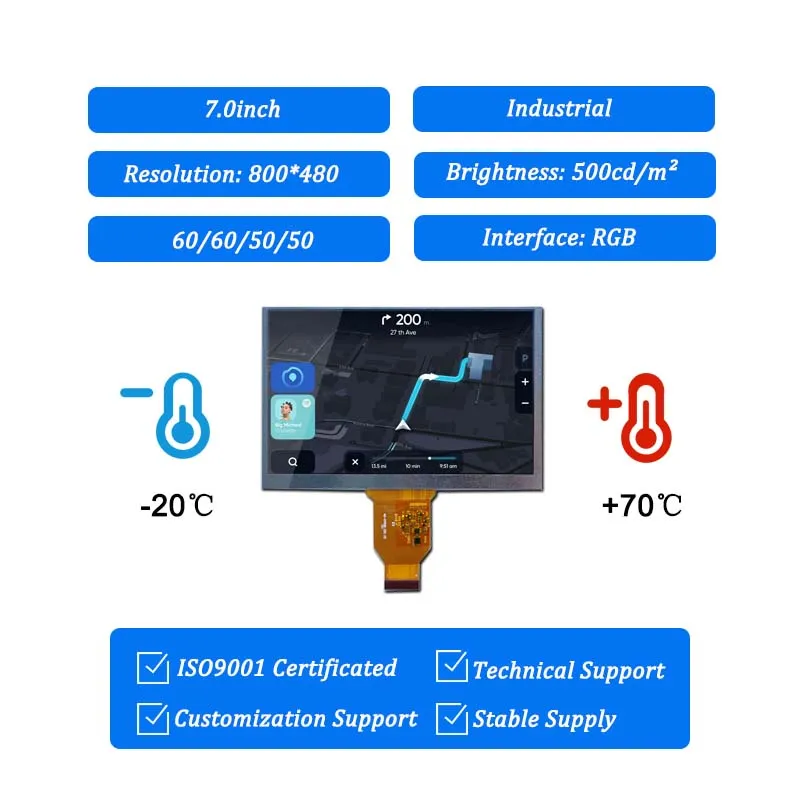

    7.0" TFT-LCD Product Specifications

    Número de modelo  90-07026-IH1
    Talla 7.0
    Resolución 800*480
    Contorno Dimensión 163.2*104*3.4
    Área activa 152.4*91.44
    Brillo(cd/m²) 500
    Interfaz RGB
    Ver Dirección 6 O"clock
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Relación de contraste 500:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    7.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    7-Inch 800 × 480 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 7-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 800 × 480 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Interfaz:

    Resolución:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
