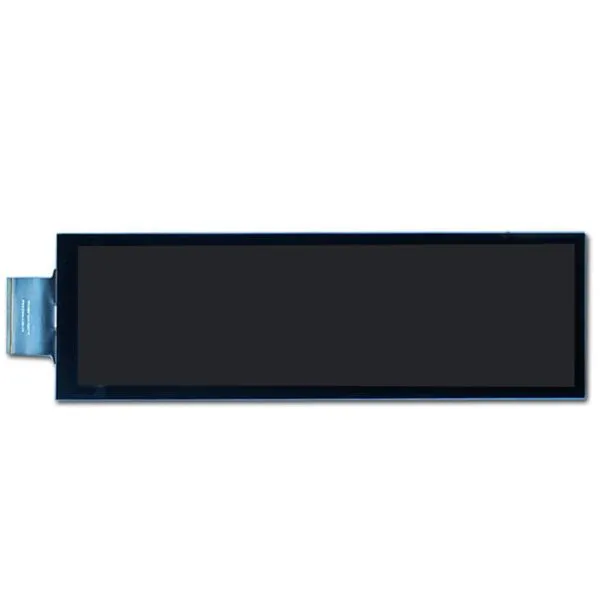

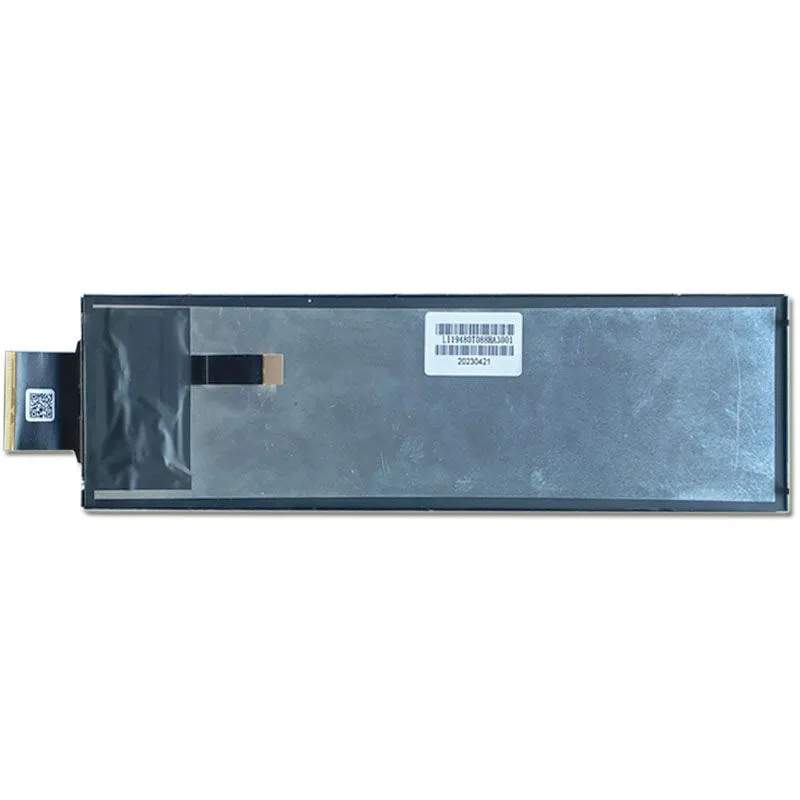

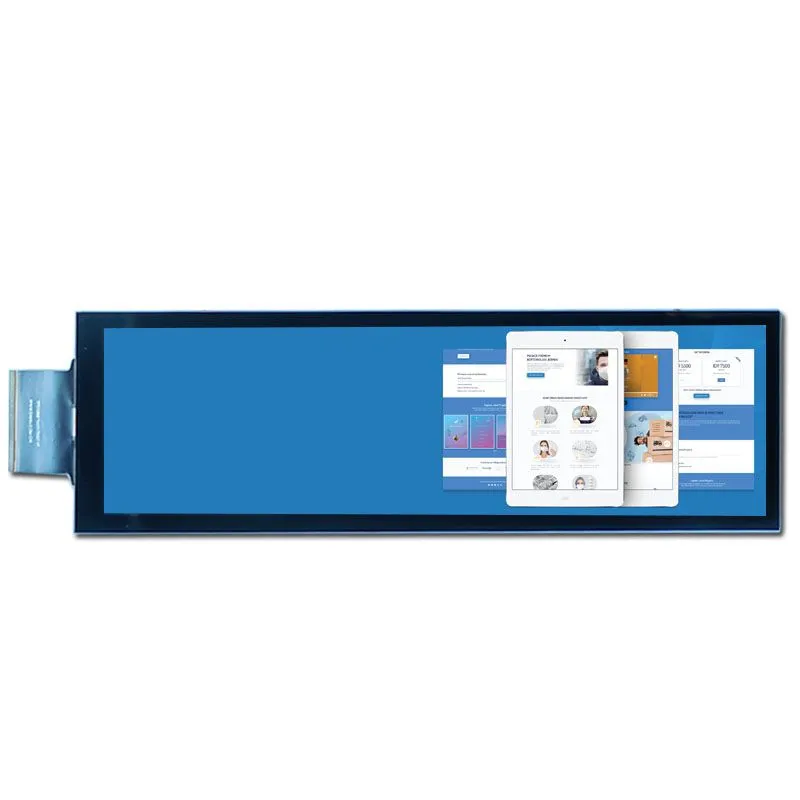

Pantalla TFT tipo barra de 8,88 pulgadas con pantalla táctil capacitiva

SKU: DS20123
Tamaño:

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

600

Compatible con pantallas táctiles:

Tipo de pantalla:

8.88 inch Bar Type TFT Display  480*1920 Pixels  with Capacitive Touch Display  Touch IC GT911  G+G  OCA Bonding  -20℃ to 70℃ Operating Temperature  600 nits High Luminance

Solicitar precios por volumen







    Descripción

    8.88"Bar Type TFT Display Features

    The 8.88 Inch Bar Type TFT Display features a resolution of 480 x 1920 pixels, Operating efficiently in a wide temperature range of -20℃ to 70℃, this display is ideal for diverse environments. With a brightness level of 600 nits, it offers excellent visibility even in bright conditions, making it perfect for outdoor applications.



    8.88 inch Capacitive Touch Screen Description

    This 8.88 inch touch display include the integrated GT911 touch IC, which ensures accurate touch detection and quick response times for a seamless user experience. Its G+G (Glass-on-Glass) structure enhances touch sensitivity and durability, while the OCA (Optically Clear Adhesive) bonding process improves light transmission for vibrant colors and clarity.

    8.88" TFT-LCD Product Specifications

    Número de modelo  91-08901-HS1
    Talla 8.88
    Resolución 480*1920
    Contorno Dimensión 64.3*231.3*4.8
    Área activa 54.72*218.88
    Brillo(cd/m²) 600
    Interfaz MIPI
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 30000
    Soporte de pantalla táctil Capacitive touch
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    8.88" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    8.88-Inch 480 × 1920 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 8.88-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 480 × 1920 pixel layout. If you mount the long edge horizontally, try a 1920 × 480 content layout and verify rotation on the intended host. Keep the panel’s native timing separate from the artwork orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 600 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    600

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
