88 inch Bar LCD Monitor Resolution 3840*1080 Audio/RJ45/HDMI/USB*2/TF/DC IN

SKU: DS30012
Tamaño:

Resolución:

Interfaz:

, , , ,

Brillo (cd/m²):

400

Temperatura de funcionamiento:

-0℃~50℃

88 inch Bar LCD Monitor, offering resolution 3840*1080, Aspect Ratio 32:9, Brightness 400cd/m2, Interface with Audio/RJ45/HDMI/USB*2/TF/DC IN

Solicitar precios por volumen







    Descripción

    88 inch Bar LCD Monitor main features:

    • 178° ultra-wide viewing angle, 1000:1 high contrast ratio
    • Calidad de imagen de alta definición, reproducción fluida
    • Expositor de tiras largas, puede colgarse horizontal o verticalmente
    • Marco de chapa, protege la pantalla de los golpes
    • Brightness 400cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable
    88 inch Bar LCD Monitor



    88 inch Bar LCD Monitor Specification

    Pantalla LCD Tamaño de la pantalla 88 inch
    Área activa 2158.85*600(mm)
    Esquema 2198*645*51(mm)
    Tipo de pantalla a-Si TFT-LCD
    Número de píxeles 3840*1080
    Relación de aspecto 32:9
    Luminancia 400 cd/m2
    Relación de contraste 1000:1
    Ángulo de visión 89/89/89/89 (Typ.)(CR≥10)
    Profundidad de color 1.07B   68% NTSC
    Respuesta 8 (Typ.)(G to G) ms
    Paso de píxeles 0.554*0.554(mm)
    Placa base CPU T972
    Ram -
    Flash -
    O/S -
    Interfaz Audio/RJ45/HDMI/USB*2/TF/DC IN
    Máquina Aspecto y estructura Chapa metálica
    Color Negro
    Periférico WIFI/altavoz*2
    Alimentación AC100~230V
    Consumo de energía ≦160W
    Temperatura de funcionamiento 0℃~50℃
    Temperatura de almacenamiento -20℃~60℃
    Método de instalación Colgante de pared
    Peso neto 55Kg
    Tamaño Corton 1575*165*560
    Número de cajas 1PCS/Corton
    Peso Corton 60Kg

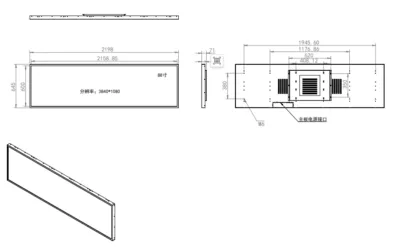

    Dibujo y foto 88 inch Bar LCD Monitor

    88-Inch 3840 × 1080 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 88-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 3840 × 1080 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Información complementaria

    Tamaño:

    Resolución:

    Interfaz:

    , , , ,

    Brillo (cd/m²):

    400

    Temperatura de funcionamiento:

    -0℃~50℃

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
