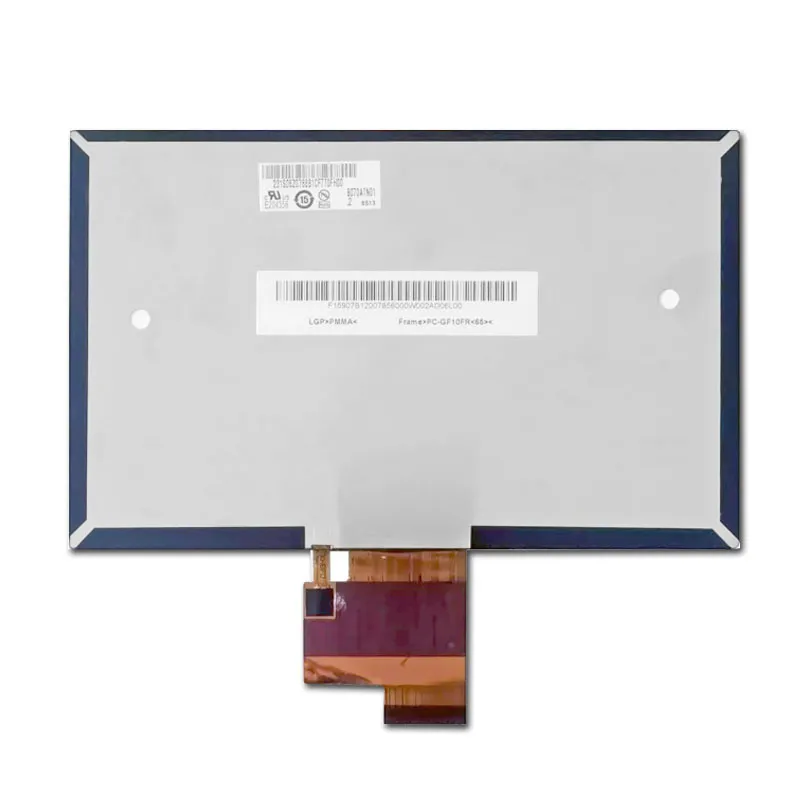

AU optronics lcd panel B070ATN01.2 7" 1024x600, 350nits, -20~60°C

SKU: DS50126
Tamaño:

Número de modelo

B070ATN01.2

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~60℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

7-inch AU optronics lcd panel with 1024x600 resolution, 350nits brightness. Wide operating temperature (-20°C~60°C), 20K-hour lifespan. Industrial-grade reliability.

Solicitar precios por volumen







    Descripción

    AUO B070ATN01.2 General Desription

    The AU optronics lcd panel B070ATN01.2 is a 7-inch TN TFT LCD module engineered for rugged industrial applications requiring stable performance in extreme environments. With 1024x600 resolution and an LVDS interface, it ensures crisp image transmission and reduced electromagnetic interference for mission-critical systems.
    Key features include 350nits brightness with anti-glare surface treatment for clear visibility under direct lighting, along with a wide operating temperature range of -20°C to 60°C, making it suitable for outdoor kiosks, automotive test equipment, and cold-chain monitoring systems. The 20,000-hour backlight lifespan ensures long-term deployment viability.



    B070ATN01.2 Technical

    500:1 contrast ratio with 6/12 o'clock viewing direction
    40-pin LVDS connector compatible with industrial control boards
    3.3V power input, RoHS-compliant design
    Supports resistive/capacitive touchscreen integration (optional)
    Backlight uniformity <5% across panel
    Designed for seamless integration into HMI panels, portable diagnostic devices, and IoT terminals. Custom mechanical adaptations available upon request.

    B070ATN01.2 Product Specifications

    Tamaño diagonal 7.0"(Diagonal)
    Número de píxeles 1024×600 Pixels
    Luminancia 350
    Tamaño del módulo 167.25(H)×104.65(V) ×4.8(D)
    Área activa 153.6(W)×90(H)
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 75/75/70/75
    Interfaz LVDS
    Relación de contraste 700
    Temperatura de funcionamiento -20~60℃
    Temperatura de almacenamiento -30~70℃
    Vida útil del LED 20K
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

    AUO LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO B070ATN01.2 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO B070ATN01.2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO B070ATN01.2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO B070ATN01.2 compare with the Innolux NJ070NA-23A?

    Both catalog listings show 7 inches, 1024 × 600 and LVDS. The catalog lists −20 °C to +60 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux NJ070NA-23A

    Is the AUO B070ATN01.2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    B070ATN01.2

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~60℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
