Description
NJ070NA-23A Innolux Automotive Display General Desription

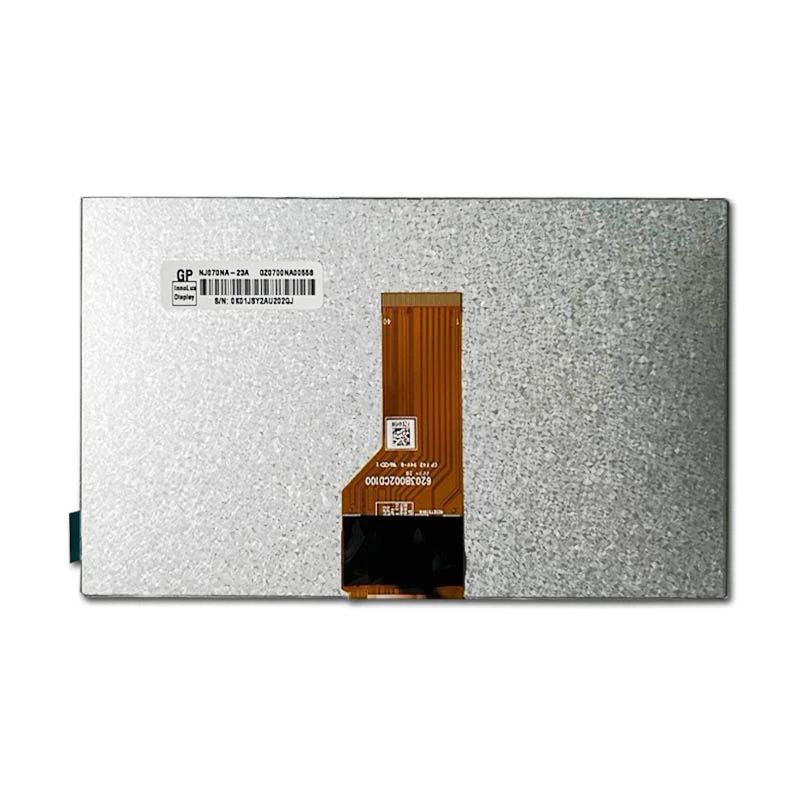

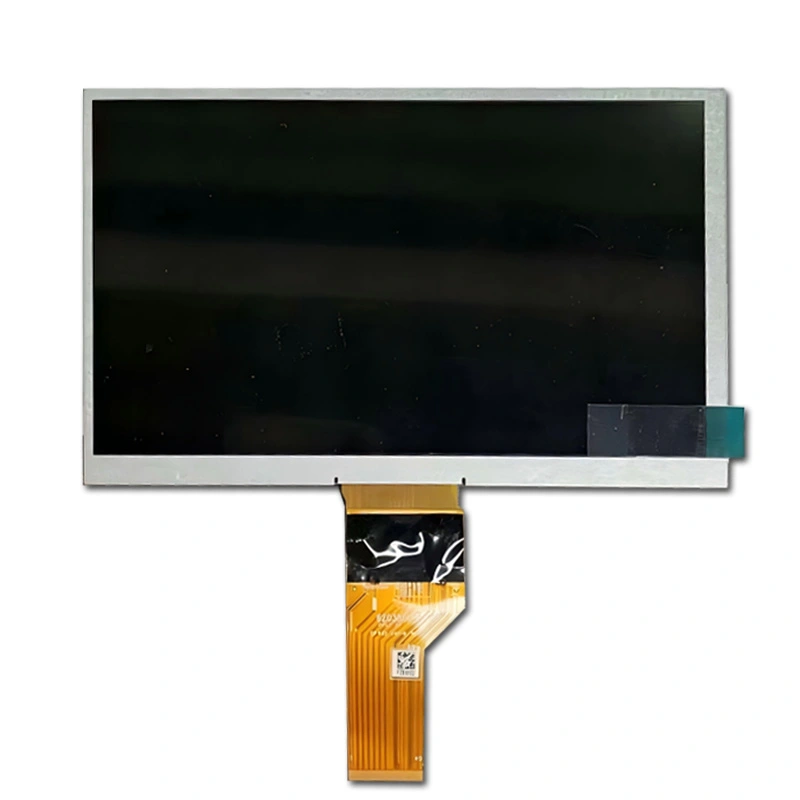

Innolux NJ070NA-23A is a 7.0" a-Si TFT-LCD LCM with 1024×600 WSVGA resolution (170 PPI, RGB vertical stripe), 154.214×85.92mm active area, and 164.9×100×5.1mm outline featuring hard coating. It offers 500 cd/m² typ. luminance, 800:1 contrast ratio, 80/80/60/70 viewing angle (CR≥10, best at 6 o'clock), 10/15ms response time, TN normally white transmissive mode, 262K/16.7M color depth, and WLED backlight (20K hours, no driver). it is designed for automotive displays, supports 60Hz refresh rate without a touchscreen, uses LVDS (1 ch, 6/8-bit) 40-pin FPC interface, operates on 3.3/12/15/-10V supply, and withstands -20~70℃ operating/-30~80℃ storage temps.
Why choose us？
1）Quality Guarantee: Original A-grade Innolux lcd.
2）Door to Door Shipping: leading time 3-5 days, shipped by DHL or FEDEX.
3）Reliable after sale-service: we have our own lcd factory, and engineering team to more efficiently and accurately resolve your screen-related issues.
7" Product Specifications
| Diagonal Size | 7 inch |
|---|---|
| Pixel Number | 1024×600 |
| Luminance | 500 |
| Module Size | 164.9×100×5.1 |
| Active Area | 154.214×82.92 |
| Viewing Direction | TN |
| View Angle(U/D/R/L) | 80/80/60/70 |
| Interface | LVDS 40 |
| Contrast Ratio | 800 : 1 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| LED Lifetime | 20000 |
| Touchscreen Support | Without |
| Power Supply | 3.3V |
| Display Type | Color TFT |
Innolux NJ070NA-23A Custom Solutions
Optimize Your Cable Solutions
Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.
PCB Modifications
Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.
Elevate User Experience with Touch Screen Technology
Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.
Custom Cover Glass
Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.
