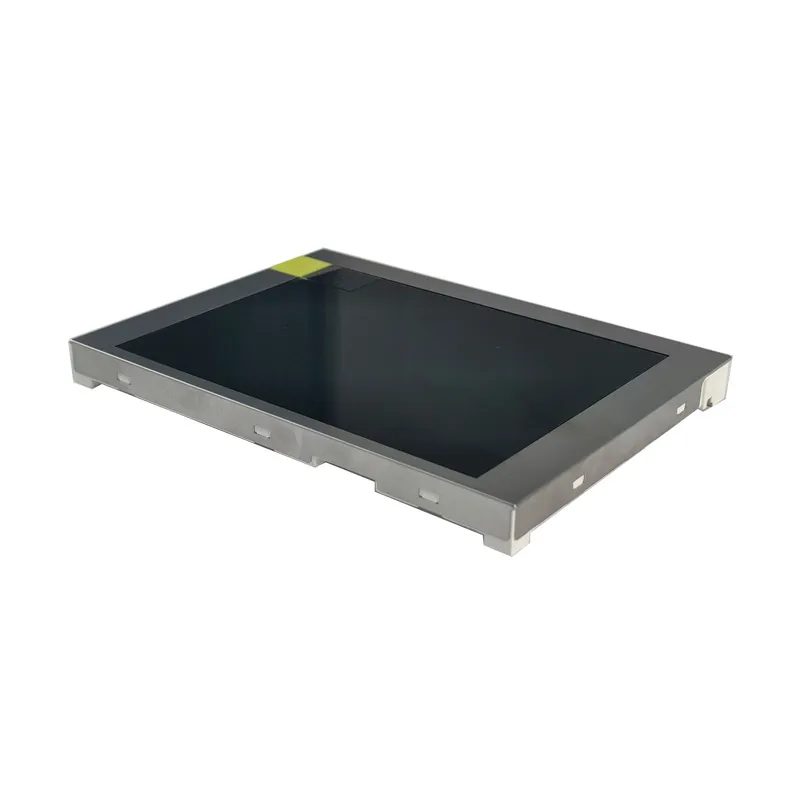

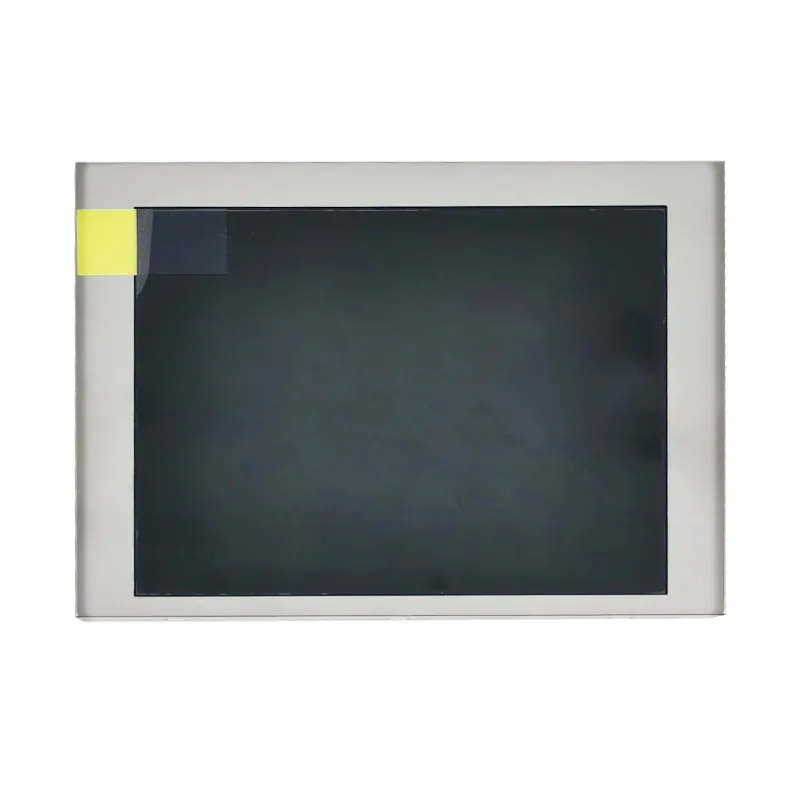

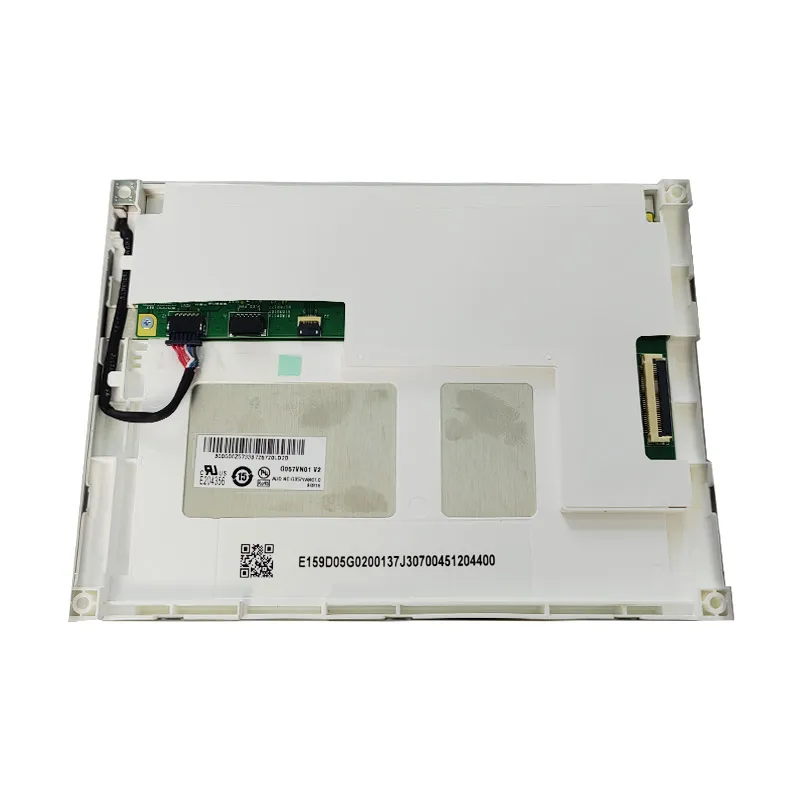

AUO G057VN01 V220 5.7" Industrial LCD – 700cd/m² IPS Panel, Wide Temp TFT Display

SKU: DS50093
Tamaño:

Número de modelo

G057VN01 V220

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

700

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

G057VN01 V220 AU Optronics 700cd/m² IPS Display - Built for -30°C to 85°C Harsh Environments.

Solicitar precios por volumen







    Descripción

    Industrial LCD Key Features:

    The AUO G057VN01 V220 is a rugged 5.7-inch color LCD designed for harsh environments. With a sharp 640×480 resolution and ultra-bright 700cd/m² backlight, it ensures crystal-clear visibility even under direct sunlight. Its IPS technology guarantees consistent 89° viewing angles from all directions, critical for multi-user applications. Engineered for extreme conditions, it operates seamlessly across a wide temperature range (-30°C to 85°C) and boasts a 70,000-hour LED lifespan for minimal maintenance. The CMOS interface enables fast data transfer, while the 1000:1 contrast ratio delivers vivid imagery. Compact dimensions (144×104.6×12.8mm) and low 3.3V power consumption make it ideal for space-constrained systems. Built to withstand vibrations and thermal shocks, this display is IP-rated (optional) for dust/water resistance, ensuring reliability in demanding industrial and outdoor settings.



    Applications & Performance:

    Perfect for industrial automation, this display excels in manufacturing HMI panels, EV charger interfaces, and robotic control systems. Its sunlight-readable brightness suits outdoor applications like solar inverters, construction equipment dashboards, and smart agriculture monitors. In healthcare, the IPS panel ensures accurate color reproduction for portable diagnostic devices. The wide temperature tolerance makes it ideal for cold-chain logistics trackers, railway displays, and Arctic oilfield equipment. For transportation, integrate it into fleet telematics or aviation ground support tools. The shock-resistant design withstands vibrations in mining machinery, while the slim profile fits handheld scanners and rugged tablets. With CMOS compatibility, it pairs effortlessly with embedded systems in IoT edge devices, energy grid controllers, and military-grade communication tools. Trusted for mission-critical operations, it delivers zero downtime in extreme heat, freezing climates, or high-humidity environments.

    5.7" TFT-LCD Product Specifications

    Número de modelo G057VN01 V220
    Talla 5.7
    Resolución 640×480
    Contorno Dimensión 144×104.6×12.8
    Área activa 115.2×86.4
    Brillo(cd/m²) 700
    Interfaz CMOS
    Ver Dirección IPS
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -30~85
    Vida útil del LED 70000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    5.7" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G057VN01 V220 5.7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G057VN01 V220?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO G057VN01 V220?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G057VN01 V220?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G057VN01 V220 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
