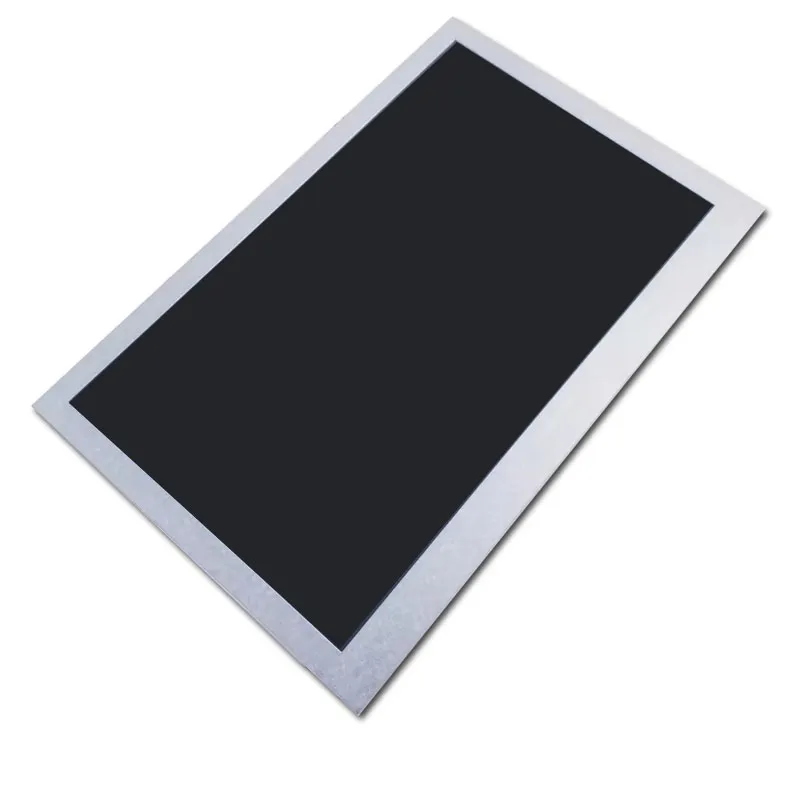

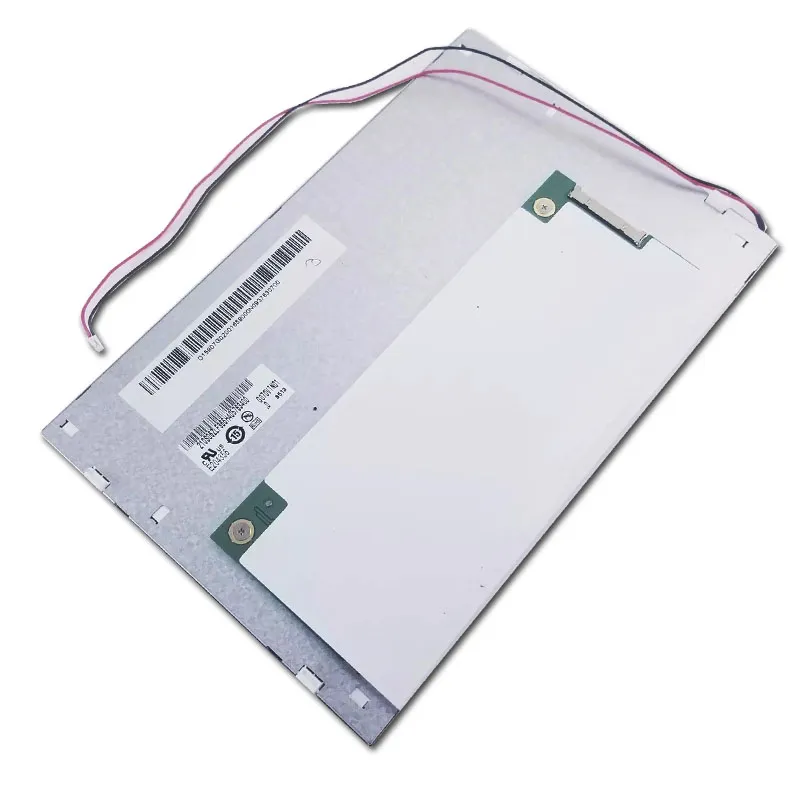

AUO G070VTN01.0 7" LCD TFT Screen - 800x480 Resolution, 300nits, LVDS Interface, -20~70°C

SKU: DS50120
Tamaño:

Número de modelo

G070VTN01.0

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

300

Compatible con pantallas táctiles:

Tipo de pantalla:

High-brightness auo g070vtn01.0 7" TN LCD panel with 800x480 resolution, 300nits, LVDS interface. Designed for industrial/outdoor use, operates at -20~70°C.

Solicitar precios por volumen







    Descripción

    G070VTN01.0V0 General Desription

    The AUO G070VTN01.0 is a robust 7-inch TN LCD panel engineered for demanding environments. Featuring an 800x480 resolution and 300nits brightness, it ensures clear visibility in high-ambient-light conditions. The LVDS interface guarantees stable signal transmission for industrial control systems, medical devices, and outdoor equipment.
    Built to withstand extreme temperatures (-20°C to 70°C), this panel delivers reliable performance in harsh operational settings. With a 30,000-hour lifespan, it reduces long-term maintenance costs. Its TN technology provides fast response times (typical 25ms) for dynamic display applications.



    G070VTN01.0Application

    HMI panels, portable devices, and automotive displays. The panel complies with industrial durability standards and supports customizable configurations (e.g., touchscreen integration). Contact for OEM/ODM solutions tailored to your project requirements.

    G070VTN01.0Product Specifications

    Tamaño diagonal 7.0"(Diagonal)
    Número de píxeles 800×480 Pixels
    Luminancia 300
    Tamaño del módulo 170(W)×111(H)×8.3(D)
    Área activa 152.4(W)×91.44(H)
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 65/65/50/60
    Interfaz LVDS
    Relación de contraste 500
    Temperatura de funcionamiento -20~70℃
    Temperatura de almacenamiento -30~80℃
    Vida útil del LED 30K
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

    AUO LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G070VTN01.0 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G070VTN01.0?

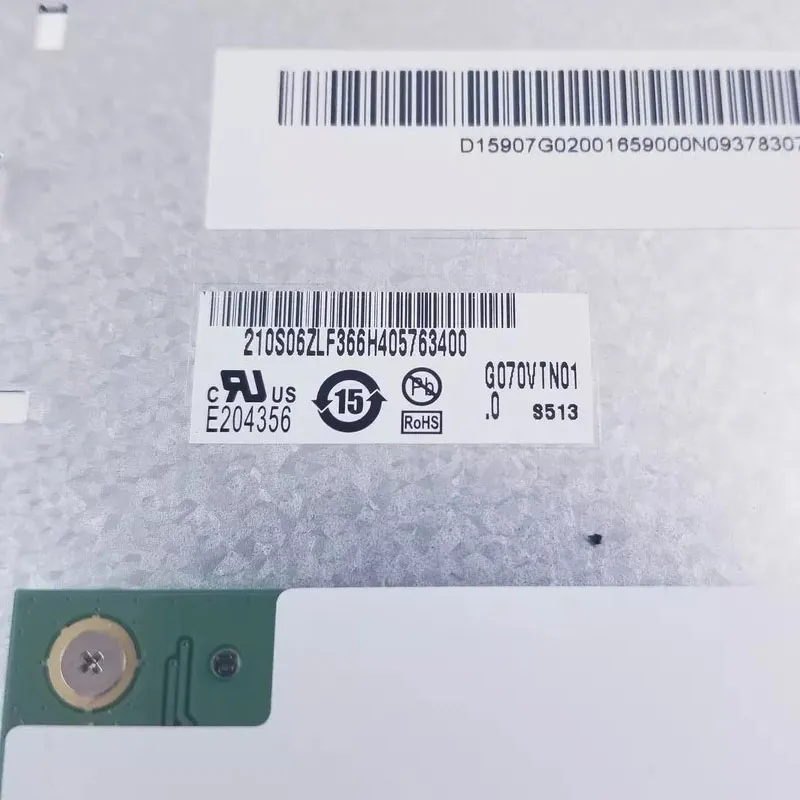

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G070VTN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G070VTN01.0 compare with the Innolux G070ACE-L01?

    Both catalog listings show 7 inches, 800 × 480 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and −30 °C to +85 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G070ACE-L01

    Is the AUO G070VTN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G070VTN01.0

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    300

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
