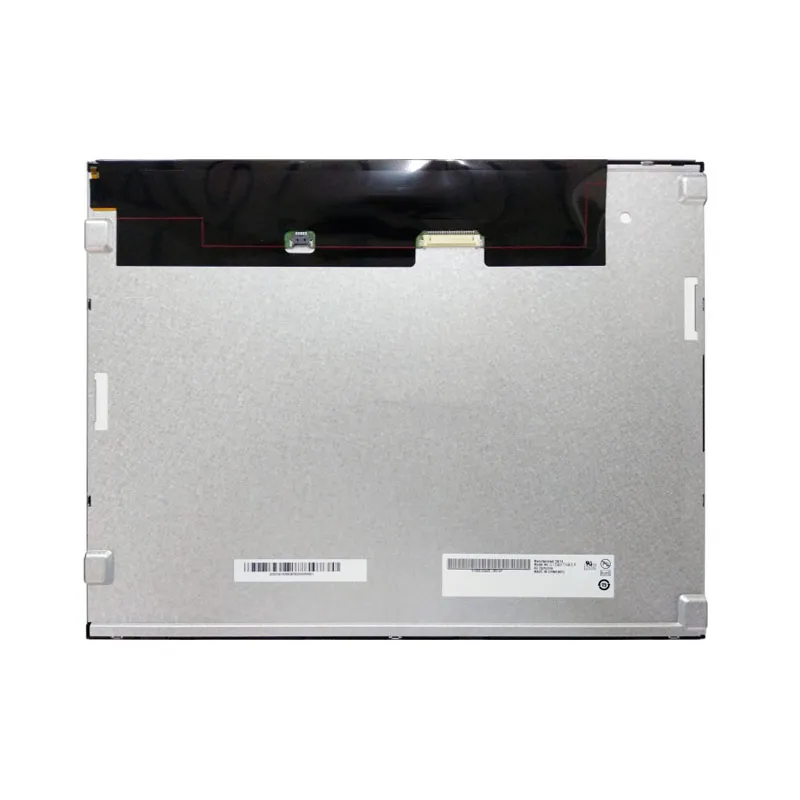

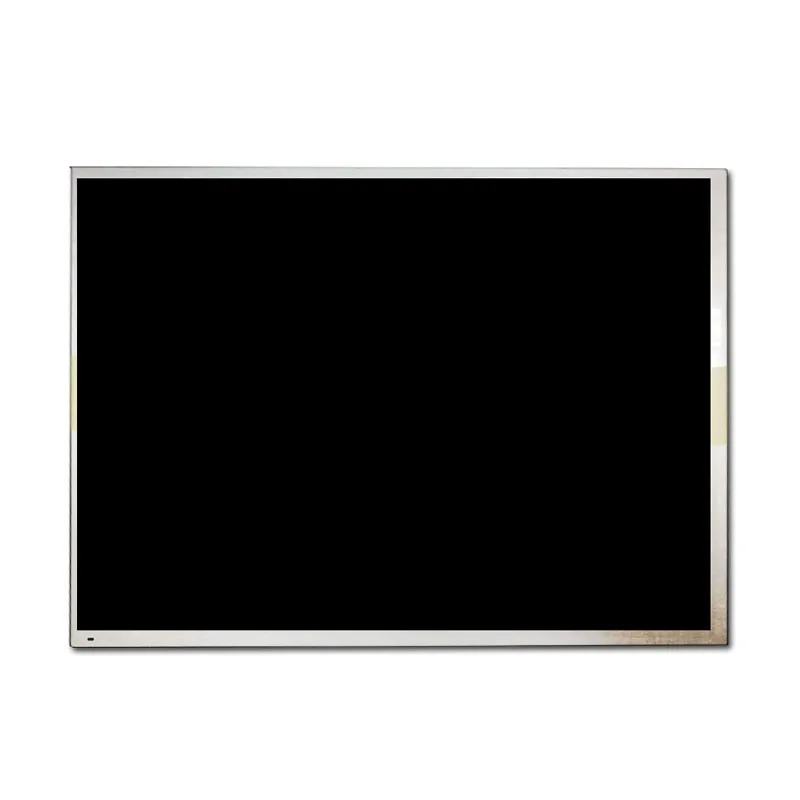

AUO G150XTN03.5 15-inch TN LCD Display - 1024×768 Resolution, 350cd/m² Brightness, 50,000hr LED Lifespan

SKU: DS50095
Tamaño:

Número de modelo

G150XTN03.5

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~60℃

Brillo (cd/m²):

350

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

g150xtn03.5 AUO Industrial-Grade 15-inch LCD,High Brightness, Extreme Durability,Crisp 1024×768 Clarity,LVDS-Powered LCD.

Solicitar precios por volumen







    Descripción

    TN LCD Display Key Features:

    The AU Optronics G150XTN03.5 is a 15-inch TN LCD panel engineered for demanding environments. Featuring a crisp 1024×768 resolution and 350cd/m² high brightness, it ensures clarity even in brightly lit conditions. With an LVDS interface and ultra-low 3.3V power consumption, it integrates seamlessly into energy-efficient systems. Its rugged design supports operation from 0°C to 60°C and storage in extreme temperatures (-20~65°C), backed by a 50,000-hour LED lifespan for reduced maintenance. The 800:1 contrast ratio and 80/80/70/80 viewing angles deliver consistent visuals across horizontal and vertical orientations. Compact outline dimensions (326.5×253.5×10mm) maximize space efficiency, while the TN technology ensures cost-effective performance for industrial applications.



    Applications & Performance:

    Designed for reliability in harsh settings, the G150XTN03.5 excels in industrial automation (HMI, control panels), medical diagnostics, and transportation displays (fleet monitors, railway systems). Its high brightness and wide temperature tolerance ensure readability in outdoor or high-heat environments, such as factory floors or solar-powered equipment. The panel’s robust build suits POS terminals, kiosks, and IoT devices requiring 24/7 operation. LVDS compatibility guarantees stable signal transmission in electrically noisy settings, while the TN matrix provides fast response times for dynamic data visualization. Engineers value its durability and compliance with industrial safety standards, making it a go-to solution for mission-critical systems.

    15" TFT-LCD Product Specifications

    Número de modelo G150XTN03.5
    Talla 15
    Resolución 1024×768
    Contorno Dimensión 326.5×253.5×10
    Área activa 304.128×228.096
    Brillo(cd/m²) 350
    Interfaz LVDS
    Ver Dirección TN
    Temperatura de funcionamiento 0~60
    Temperatura de almacenamiento -20~65
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    15" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G150XTN03.5 15-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G150XTN03.5?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G150XTN03.5?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G150XTN03.5 compare with the Innolux G150XNE-L01?

    Both catalog listings show 15 inches, 1024 × 768 and LVDS. The catalog lists 0 °C to +60 °C for the AUO panel and −30 °C to +80 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G150XNE-L01

    Is the AUO G150XTN03.5 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G150XTN03.5

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~60℃

    Brillo (cd/m²):

    350

    Compatible con pantallas táctiles:

    Tipo de pantalla:
