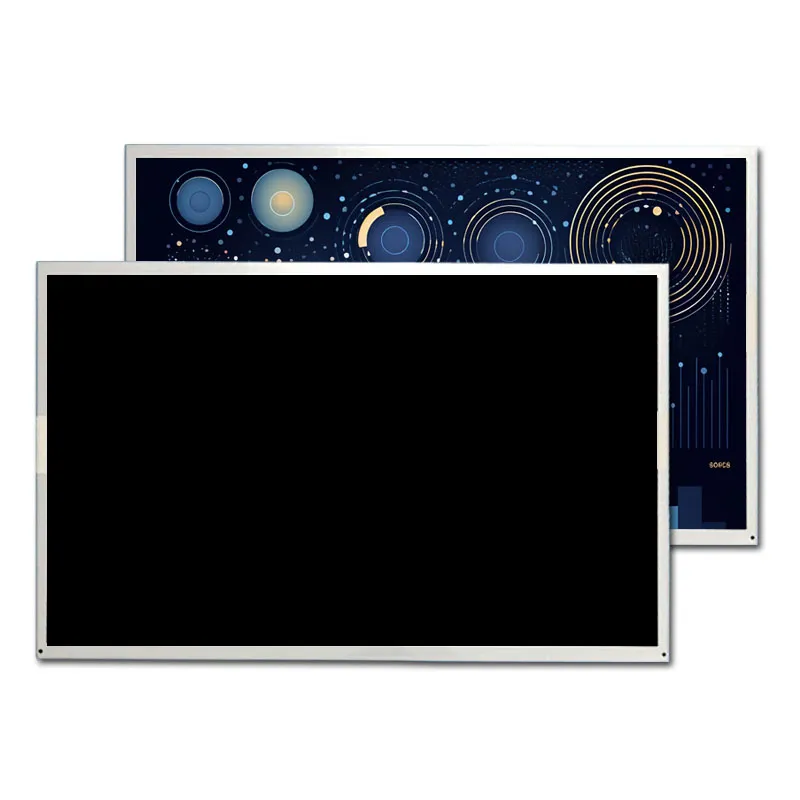

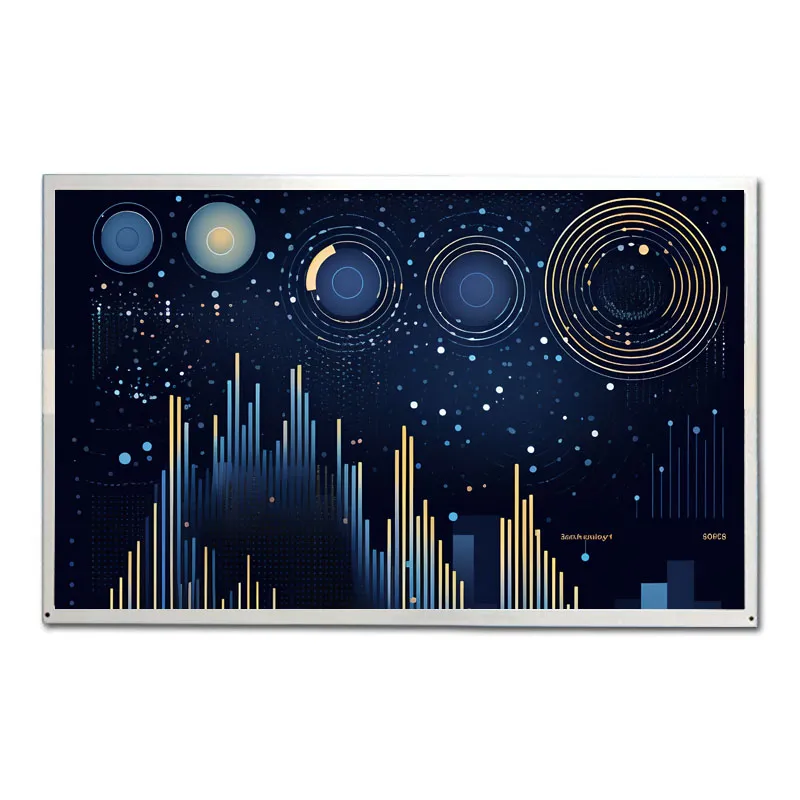

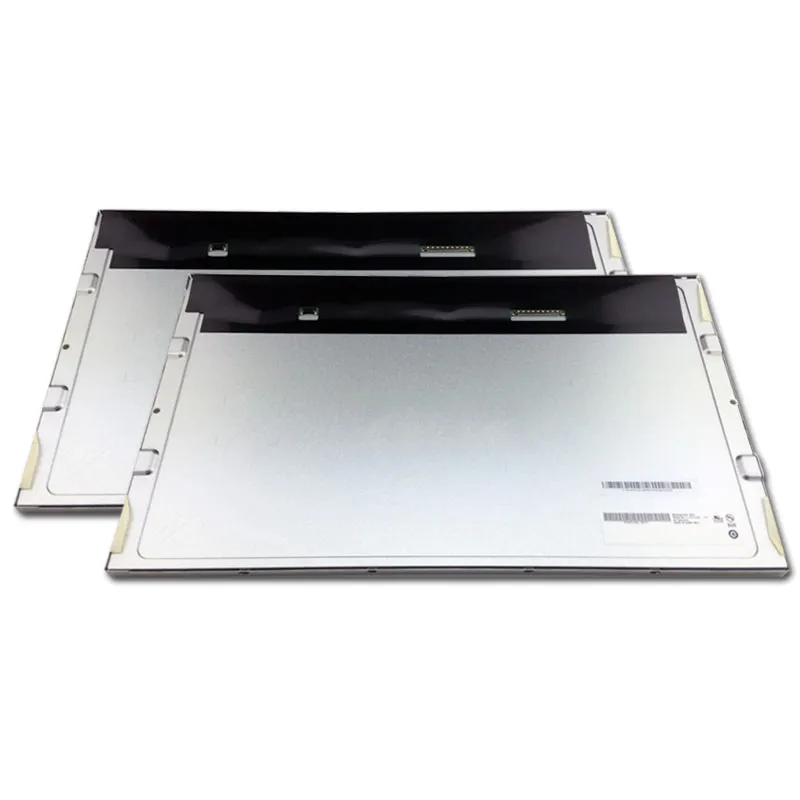

AUO G185XW01 V201 18.5" IPS Industrial LCD Panel - 450nits, Wide Temp, LVDS Interface

SKU: DS50052
Tamaño:

Número de modelo

G185XW01 V201

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~60℃

Brillo (cd/m²):

450

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

G185XW01 V201 AUO 18.5" 450nits IPS Industrial LCD - Wide Temp, LVDS Interface, 50K Hours,1366×768 resolution.

Solicitar precios por volumen







    Descripción

    G185XW01 V201 Key Features:

    The AUO G185XW01 V1 delivers robust performance with its 450 cd/m² high-brightness IPS panel, ensuring clarity in both indoor and semi-outdoor environments. Featuring a 1366×768 resolution (18.5" active area: 409.8×230.4mm), it provides sharp text and graphics for data-intensive applications. The 1000:1 contrast ratio enhances grayscale precision, ideal for medical imaging and industrial schematics. Engineered for durability, it operates reliably in -0°C to 60°C conditions and withstands storage temperatures from -20°C to 60°C, perfect for unheated warehouses or desert-edge facilities. Its ultra-slim 11.1mm profile (430.4×254.7mm outline) allows seamless integration into space-constrained IoT devices or portable diagnostic tools. The LVDS interface (5.0V power) ensures stable signal transmission in high-interference environments like factory automation systems. With an 85/85/80/80 viewing angle, it maintains color consistency for multi-user control panels. The 50,000-hour LED lifespan minimizes maintenance costs in 24/7 applications such as public transit info displays or retail kiosks.



    Applications & Performance:

    Optimized for demanding environments, the G185XW01 V1 excels in medical carts requiring precise grayscale rendering for X-ray previews and patient monitoring. Its 450nits brightness ensures readability in sunlit pharmacy inventory systems or outdoor ticket vending machines. The wide temperature range supports freezer room HMIs (-0°C) and textile factory dashboards (60°C). Transportation networks leverage its slim design for compact train seatback displays, while the IPS panel’s 85° horizontal/vertical angles enable collaborative viewing in conference room scheduling panels. In logistics, its LVDS reliability sustains performance in RFID scanner arrays and warehouse sorting terminals prone to electromagnetic noise. The anti-glare surface reduces reflections in automotive repair bay diagnostic tools, and the 5V compatibility integrates with solar-powered agricultural sensors. Educational institutions benefit from its durability in interactive whiteboard peripherals, while its 50K-hour lifespan ensures longevity in 24/7 hotel lobby info screens.

    18.5" TFT-LCD Product Specifications

    Número de modelo G185XW01 V201
    Talla 18.5
    Resolución 1366*768
    Contorno Dimensión 430.4×254.7×11.1
    Área activa 409.8×230.4
    Brillo(cd/m²) 450
    Interfaz LVDS
    Ver Dirección IPS
    Temperatura de funcionamiento -0~60
    Temperatura de almacenamiento -20~60
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 5.0V
    Tipo de pantalla LCD en color

    18.5" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G185XW01 V201 18.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G185XW01 V201?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 18.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G185XW01 V201?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G185XW01 V201?

    Use 1366 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G185XW01 V201 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G185XW01 V201

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~60℃

    Brillo (cd/m²):

    450

    Compatible con pantallas táctiles:

    Tipo de pantalla:
