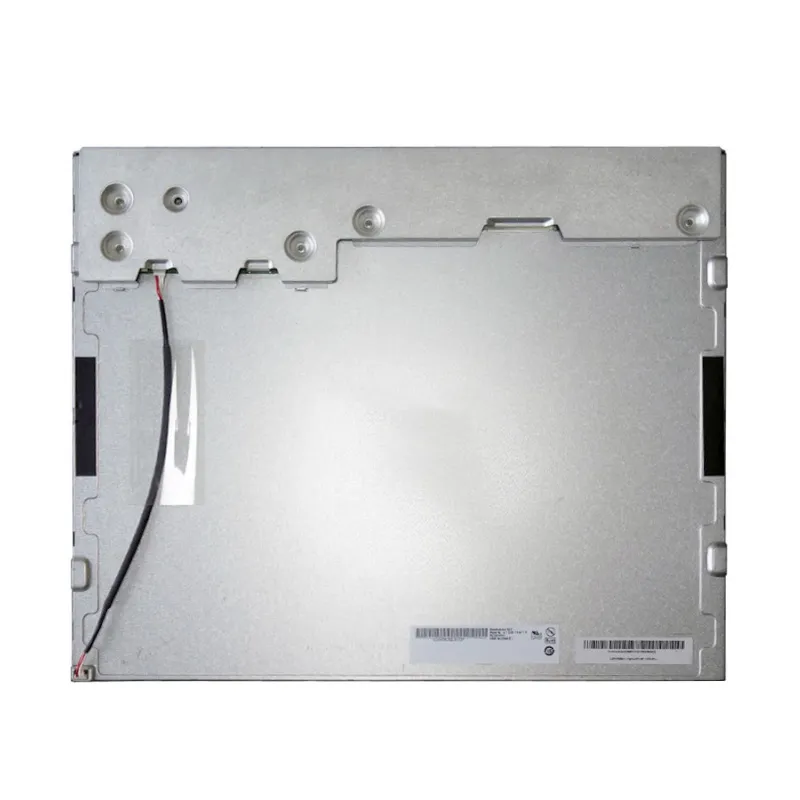

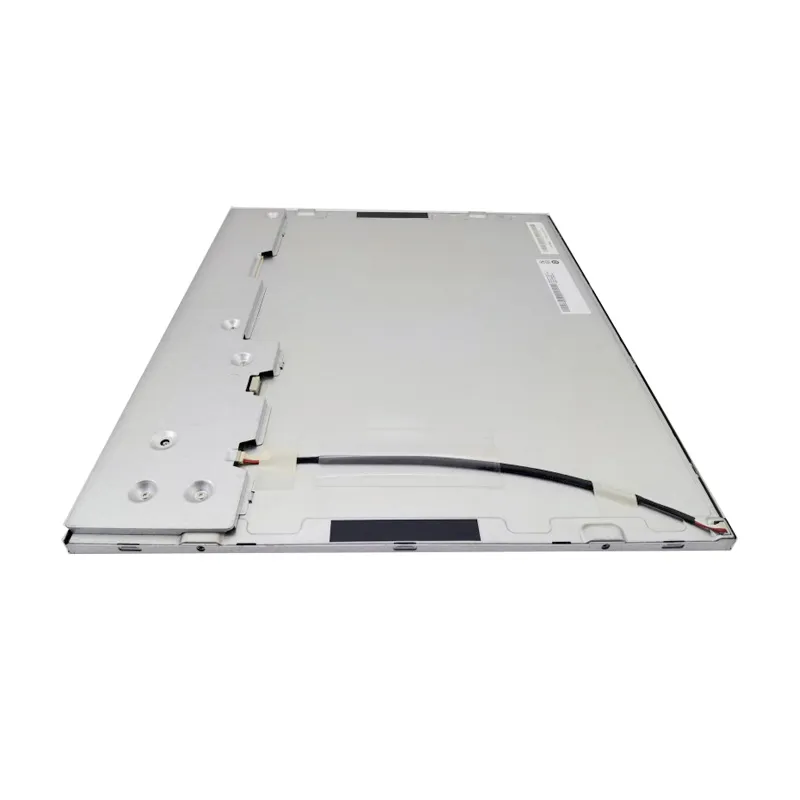

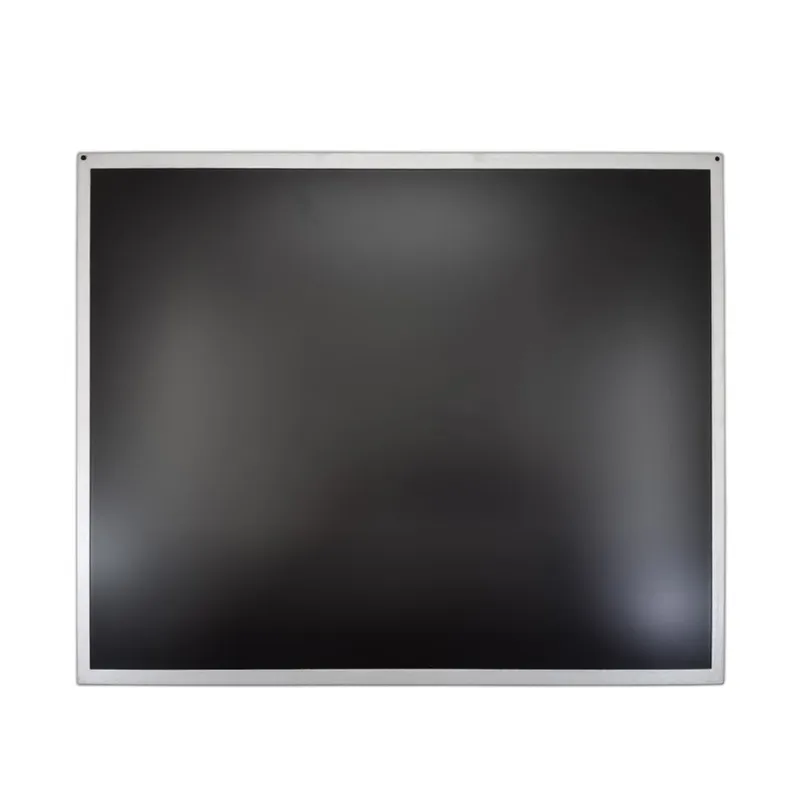

AUO G190ETN01.4 19" Rugged TN LCD Screen 450 Brightness,Wide temperature -30~85°C.

SKU: DS50055
Tamaño:

Número de modelo

G190ETN01.4

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

500

Tipo de pantalla:

Compatible con pantallas táctiles:

Recursos:

AUO 19" g190etn01.4 Rugged LCD Wide temperature -30~85°C, 1000:1 Contrast,The 1280×1024 resolution delivers precision for legacy industrial QA systems and medical imaging workstations.

Solicitar precios por volumen







    Descripción

    G190ETN01.4 Key Features:

    The AU Optronics 19-incn G190ETN01.4 delivers extreme environmental resilience with an unmatched operating range of -30°C to 85°C, engineered for Arctic logistics and desert-edge industrial systems. Its 450 cd/m² brightness and 1000:1 contrast ratio ensure crisp visibility in direct sunlight or high-glare environments like solar farms. The 1280×1024 (SXGA) resolution provides sharp detail for legacy industrial interfaces, while the ultra-slim 13.38mm profile (396×324mm outline) enables integration into space-critical military field devices. The ruggedized LVDS interface (5.0V power) guarantees EMI-resistant performance in welding robots or power substations. With 80/80/60/80 viewing angles, it maintains readability in vertical-mount applications like automated warehouse picker systems. The 50,000-hour LED lifespan ensures 24/7 reliability in harsh settings like foundry control rooms or cryogenic storage monitoring. TN panel technology offers rapid response for real-time machinery telemetry, while the -30°C cold-start capability supports oil rig operations in extreme climates.



    Applications & Performance:

    Built for the world’s harshest environments, the G190ETN01.4 excels in Arctic drilling rig HMIs requiring -30°C cold boot and steel mill dashboards enduring 85°C ambient heat. Its 450nits brightness defeats glare in desert oilfield SCADA systems and tropical port cargo displays. The SXGA resolution optimizes legacy aviation maintenance terminals and textile loom interfaces needing 5:4 aspect ratios. Transportation networks deploy it in railway switchgear control panels exposed to subzero temperatures, while the LVDS interface resists interference in mining explosion-proof equipment. Food processing plants utilize its wide temperature range for simultaneous freezer (-30°C) and sterilization zone (85°C) monitoring. The slim design integrates into military portable command units and offshore wind turbine nacelle displays. High contrast reveals fine cracks in concrete inspection systems, while 50K-hour durability sustains 24/7 border surveillance monitors. Its TN response speed enhances automated conveyor defect detection in cold storage facilities.

    19.0" TFT-LCD Product Specifications

    Número de modelo G190ETN01.4
    Talla 19.0
    Resolución 1280*1024
    Contorno Dimensión 396×324×13.38
    Área activa 376.32×301.056
    Brillo(cd/m²) 450
    Interfaz LVDS
    Ver Dirección TN
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -30~85
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 5.0V
    Tipo de pantalla LCD en color

    19.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G190ETN01.4 19-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G190ETN01.4?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 19-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G190ETN01.4?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G190ETN01.4 compare with the BOE DV190E0M-N11?

    Both catalog listings show 19 inches, 1280 × 1024 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV190E0M-N11

    Is the AUO G190ETN01.4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G190ETN01.4

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Brillo (cd/m²):

    500

    Tipo de pantalla:

    Compatible con pantallas táctiles:
