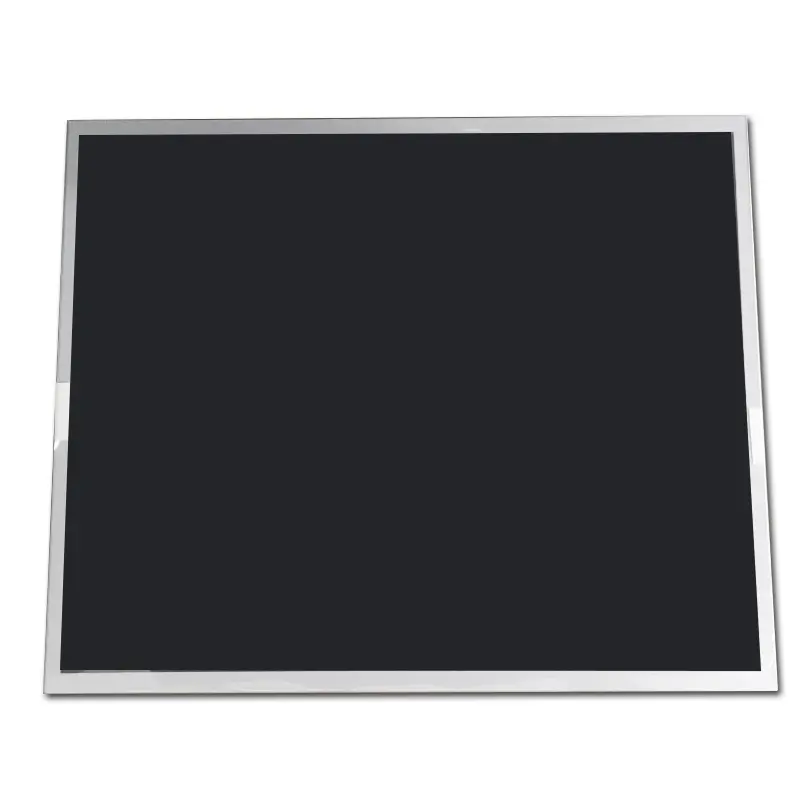

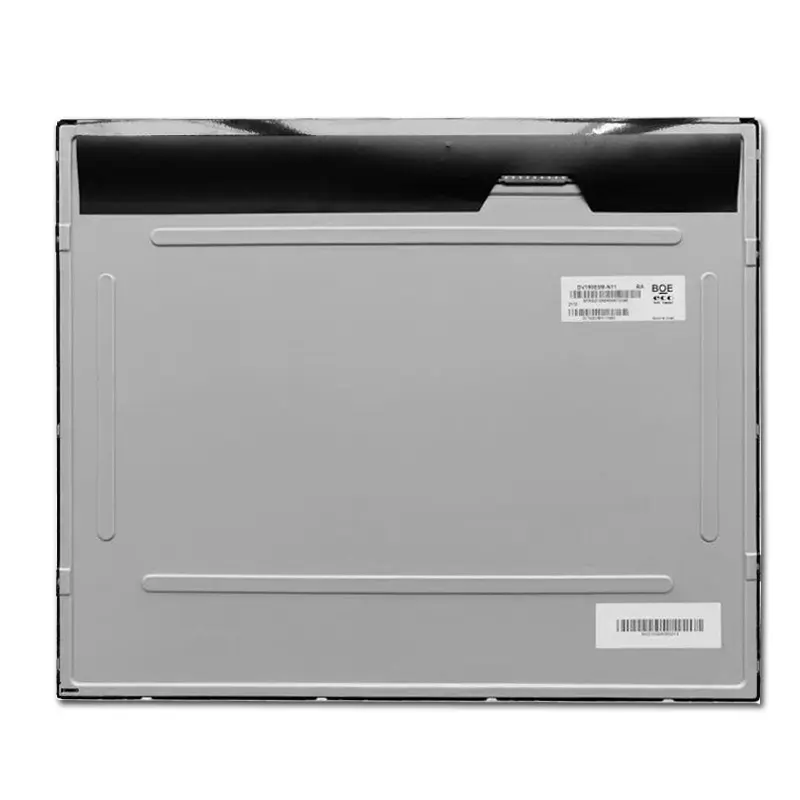

BOE DV190E0M-N11 19” LCD Screen 1280×1024 LVDS Display

SKU: DS50269-1
Tamaño:

Número de modelo

V190E0M-N11

Interfaz:

Temperatura de funcionamiento:

-0℃~50℃

Brillo (cd/m²):

250

Compatible con pantallas táctiles:

Tipo de pantalla:

BOE DV190E0M-N11, Resolution 1280×1024, LVDS interface, IPS screen, Idea for Consumer Electronics, products in stock, volume discount.

Solicitar precios por volumen







    Descripción

    BOE DV190E0M-N11 Desription

    This BOE DV190E0M-N11 module is equipped with an LVDS interface supporting 2 pixels per clock, With a 6-bit (Hi-FRC) color depth, it delivers vibrant 16.7 million colors for rich and accurate color representation. Designed with a wide viewing angle for versatile installation, it operates in DE (Data Enable) only mode to simplify signal integration. Leveraging HADS (High Advanced Hyper Driving System) technology, it enhances display quality through optimized pixel control and contrast.



    15+ Years TFT Expertise: Full-Suite Solutions & Dedicated Support

    Leverage our 15-year technical team for end-to-end TFT displays—from hardware design (custom sizes, specs) to firmware/driver development, mechanical integration, and rigorous testing. We deliver plug-and-play solutions for OS, rapid prototyping (10–15 days), and 24/7 support. Trusted in industrial, medical, and consumer sectors, our expertise ensures seamless integration, low risk, and 99.8% first-time compatibility. Your single source for reliable, tailored TFT technology

    19" Product Specifications

    Diagonal Size11.8 19 inch
    Número de píxeles 1280×1024
    Luminancia 250
    Tamaño del módulo 396×324×10.4
    Área activa 374.784×299.827
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 89/89/89/89
    Interfaz LVDS
    Relación de contraste 1000 : 1
    Temperatura de funcionamiento -0 ~ 50 °C
    Temperatura de almacenamiento -20 ~ 60 °C
    Vida útil del LED 30000
    Fuente de alimentación 5.0V
    Soporte de pantalla táctil Sin
    Tipo de pantalla TFT en color



    BOE LCD Display Soluciones a medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    BOE DV190E0M-N11 19-Inch LCD Replacement FAQ

    How do I confirm that I need the BOE DV190E0M-N11?

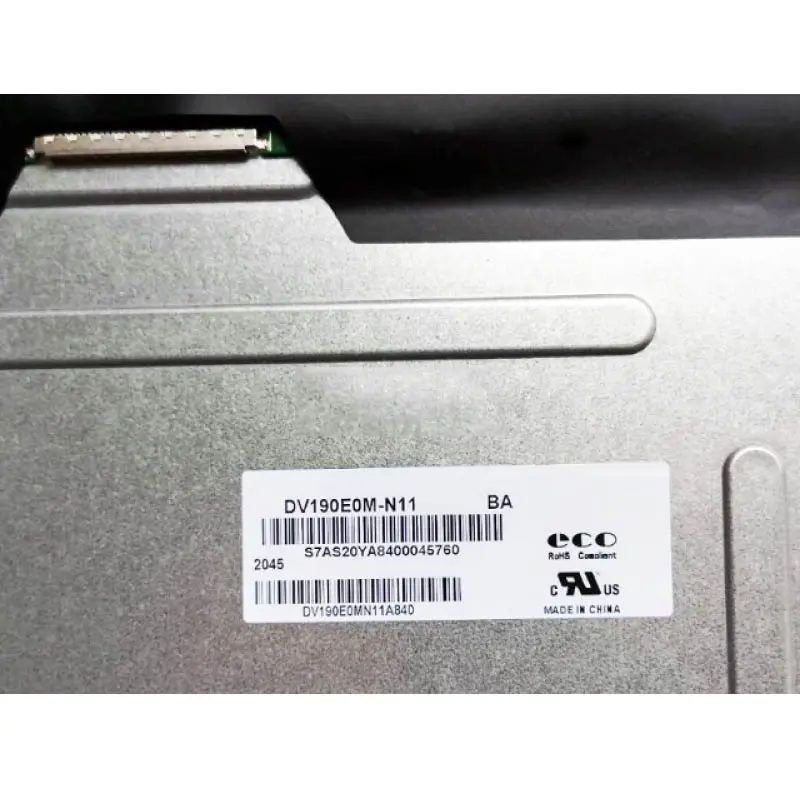

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 19-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE DV190E0M-N11?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the BOE DV190E0M-N11 compare with the AUO G190ETN01.601?

    Both catalog listings show 19 inches, 1280 × 1024 and LVDS. The catalog lists 0 °C to +50 °C for the BOE panel and −30 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G190ETN01.601

    Is the BOE DV190E0M-N11 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
