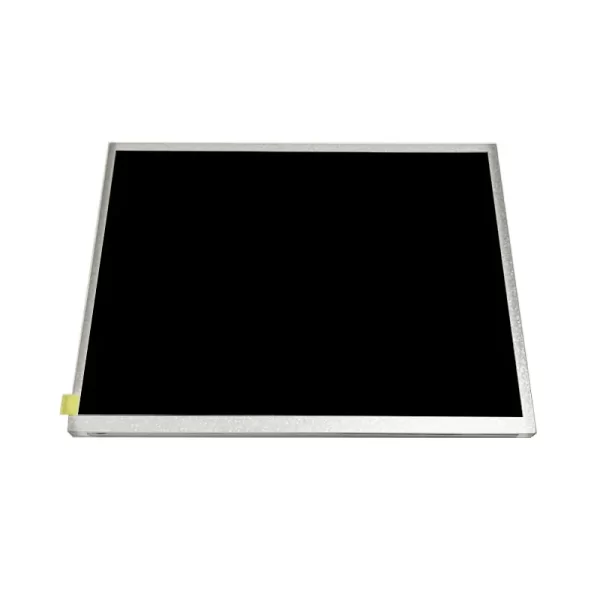

BOE EV121X0M-N10 12.1 inch LCD Industrial Panel 1024x768

SKU: DS50295
Tamaño:

Número de modelo

EV121X0M-N10

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

BOE EV121X0M-N10, 12” industrial panel, 1024x768 resolution, 88/88/88/88 IPS wide viewing angle, LVDS interface, 50k Long life span

Solicitar precios por volumen







    Descripción

    BOE EV121X0M-N10 TFT Display Description

    BOE EV121X0M-N10

    Wide-temperature design for stable operation in harsh environments
    Long-life panel suitable for medical and industrial applications
    15-year manufacturing expertise with in-house R&D team
    Customizable touch screen and driver solutions available

    Supporting retail and wholesale orders. Contact us for pricing quotes!

    12.1" TFT Display Specifications

    Número de modelo EV121X0M-N10
    Talla 12.1
    Resolución 1024*768
    Contorno Dimensión 260.5*204*8.7
    Área activa 245.76*184.32
    Brillo(cd/m²) 500
    Interfaz LVDS
    Ver Dirección ALL
    Temperatura de funcionamiento -20~70
    Temperatura de almacenamiento -30~80
    Vida útil del LED 50000
    Soporte de pantalla táctil No
    Relación de contraste 1200:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    12.1" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    BOE EV121X0M-N10 LCD Replacement FAQ

    How do I confirm that I need the BOE EV121X0M-N10?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the BOE EV121X0M-N10?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the BOE EV121X0M-N10?

    Use 1024 × 768 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the BOE EV121X0M-N10 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
