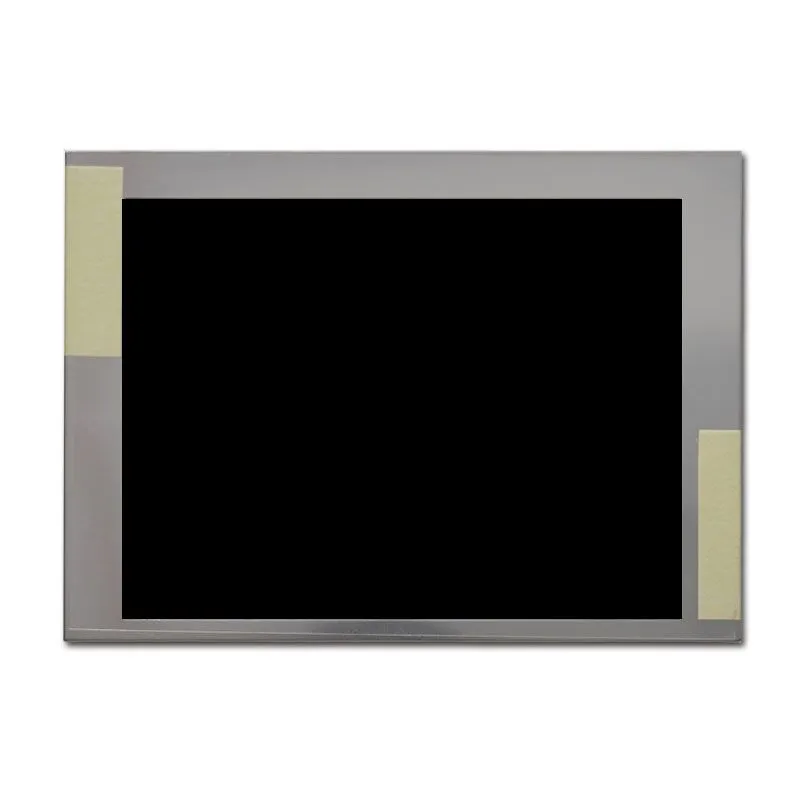

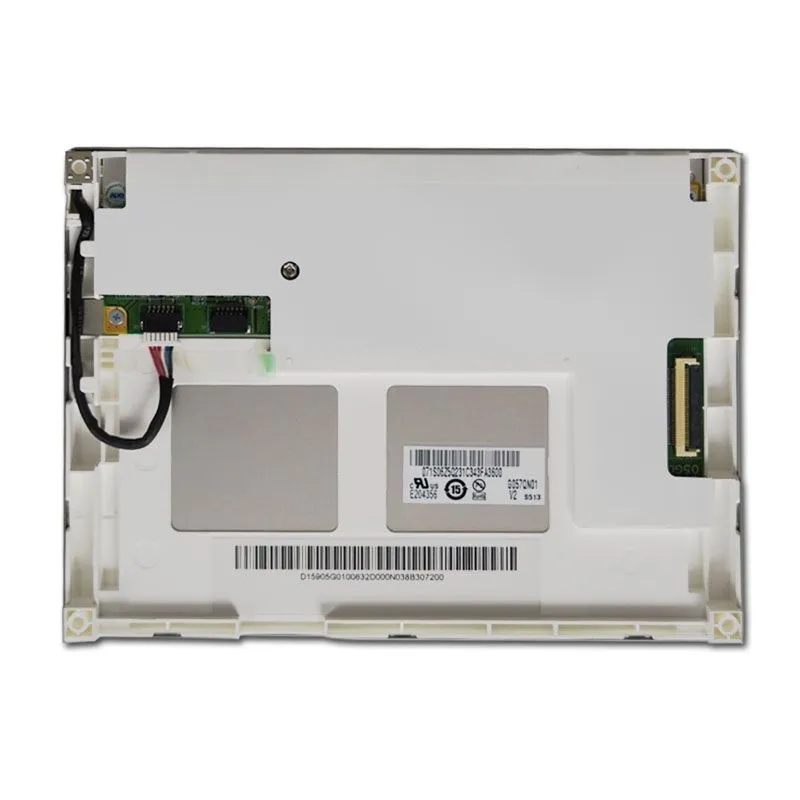

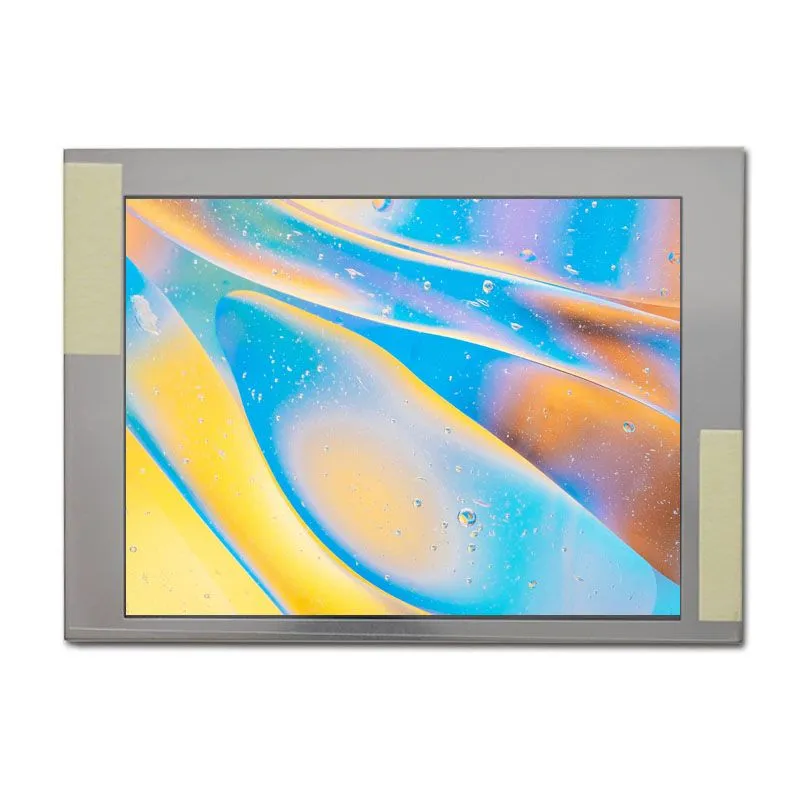

G057QN01 V2 AUO Pantalla LCD TFT de 5,7 pulgadas

SKU: DS50001
Tamaño:

Número de modelo

G057QN01V 2

Resolución:

Interfaz:

Brillo (cd/m²):

800

Temperatura de funcionamiento:

-30℃~ 85℃

Tipo de pantalla:

Compatible con pantallas táctiles:

Recursos:

G057QN01 V2 from Brand AUO, Resolution 320*240, Wide Temperature from -30~85℃, CMOS 6-bit Parallel RGB, Stable supply, Original A grade quality

Solicitar precios por volumen







    Descripción

    G057QN01 V2 General Description

    G057QN01 V2 is designed for industrial display applications with QVGA (320 x RGB x 240) resolution
    and 262k colors (RGB 6-bits). It is composed of a TFT-LCD panel, driver ICs, control and power
    supply circuits board and backlight unit including LED driver circuit. G057QN01 V2 offers CMOS
    interface for display signal input.



    G057QN01 V2 AUO Display Characteristics

    The 5.7-inch LCD Display Module features an active area of 115.2 mm (H) x 86.4 mm (V) and a resolution of 320 x 240 pixels arranged in a RGB vertical stripe pattern. With a pixel pitch of 0.36 mm and a TN (Twisted Nematic) display mode, it operates at a nominal input voltage of 3.3V and has a typical power consumption of 3.34W (comprising 0.46W for the LCD and 2.88W for the LED backlight). The display weighs approximately 150g and has physical dimensions of 144.0 mm (H) x 104.6 mm (V) x 12.3 mm (D). It features a CMOS 6-bit Parallel RGB electrical interface, an anti-glare surface treatment with 3H hardness, and supports 262K colors, offering optimal viewing at a 12 o’clock angle. The operational temperature range is from -30°C to +85°C, with the same range for storage, and the module is RoHS compliant.

    5.7" AUO LCD Display Product Specifications

    Número de modelo G057QN01V 2
    Talla 5.7
    Resolución 320*240
    Contorno Dimensión 144*104.6*12.8
    Área activa 115.2*86.4
    Brillo(cd/m²) 800
    Interfaz CMOS
    Ver Dirección TN
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -30~85
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 800:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    5.7" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G057QN01 V2 5.7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G057QN01 V2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the AUO G057QN01 V2?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G057QN01 V2?

    Use 320 × 240 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G057QN01 V2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G057QN01V 2

    Resolución:

    Interfaz:

    Brillo (cd/m²):

    800

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Tipo de pantalla:

    Compatible con pantallas táctiles:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
