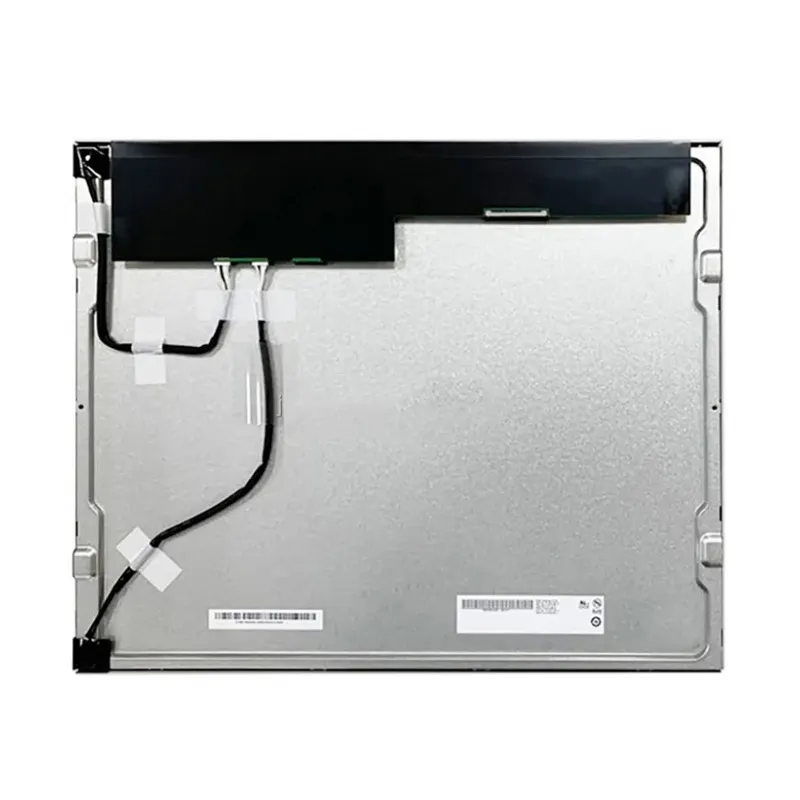

G190ETN01.601 Ultra-Bright TN LCD Display – 1280×1024, AUO 19-inch 1600cd/m²

SKU: DS50099
Tamaño:

Número de modelo

G190ETN01.601

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~70℃

Brillo (cd/m²):

1600

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

G190ETN01.601 19-inch Ultra-Bright Industrial LCD – 1600cd/m² Brightness, Wide-Temperature Display -30~70°C , LVDS Interface for Outdoor & Industrial Harsh Environments.

Solicitar precios por volumen







    Descripción

    G190ETN01.601 Key Features:

    The AU Optronics G190ETN01.601 is a high-performance 19-inch TN LCD panel engineered for extreme visibility and durability. With a remarkable 1600cd/m² brightness and 1000:1 contrast ratio, it ensures crisp readability in direct sunlight or harsh lighting. The ultra-wide operating temperature range (-30°C to 70°C) and 50,000-hour LED lifespan guarantee reliability in demanding industrial settings. The LVDS interface provides stable signal transmission in electrically noisy environments, while the 5V power supply simplifies integration with industrial systems. Featuring a slim 15.79mm profile and 85/85/80/80 viewing angles, it delivers consistent visuals for multi-user applications. Its rugged design withstands vibrations, shocks, and temperature extremes, making it ideal for 24/7 outdoor or heavy machinery use. Anti-glare coatings and high brightness ensure clarity in bright environments, from desert solar farms to Arctic logistics hubs.



    Applications & Performance:

    Designed for mission-critical environments, the 19-inch G190ETN01.601 excels in oil and gas control panels, transportation systems, and outdoor digital signage. Its 1600cd/m² brightness outperforms standard displays, enabling visibility in direct sunlight for EV charging stations, mining equipment dashboards, or maritime navigation systems. The -30°C~70°C tolerance supports deployment in freezing warehouses, desert solar farms, or unheated industrial facilities. The LVDS interface ensures EMI resistance in factories with heavy machinery, while the 1280×1024 resolution provides sharp text/graphics for SCADA systems and CNC machine interfaces. Applications include ruggedized HMIs, airport ground support equipment, and military-grade displays. The 1000:1 contrast ratio enhances grayscale accuracy for medical imaging or surveillance monitors, while the TN panel’s fast response time reduces motion blur in dynamic environments like construction vehicle dashboards.

    19.0" TFT-LCD Product Specifications

    Número de modelo G190ETN01.601
    Talla 19.0
    Resolución 1280×1024
    Contorno Dimensión 396×324.3×15.79
    Área activa 376.32×301.056
    Brillo(cd/m²) 1600
    Interfaz LVDS
    Ver Dirección TN
    Temperatura de funcionamiento -30~70
    Temperatura de almacenamiento -30~70
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 5.0V
    Tipo de pantalla LCD en color

    19.0" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    AUO G190ETN01.601 19-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G190ETN01.601?

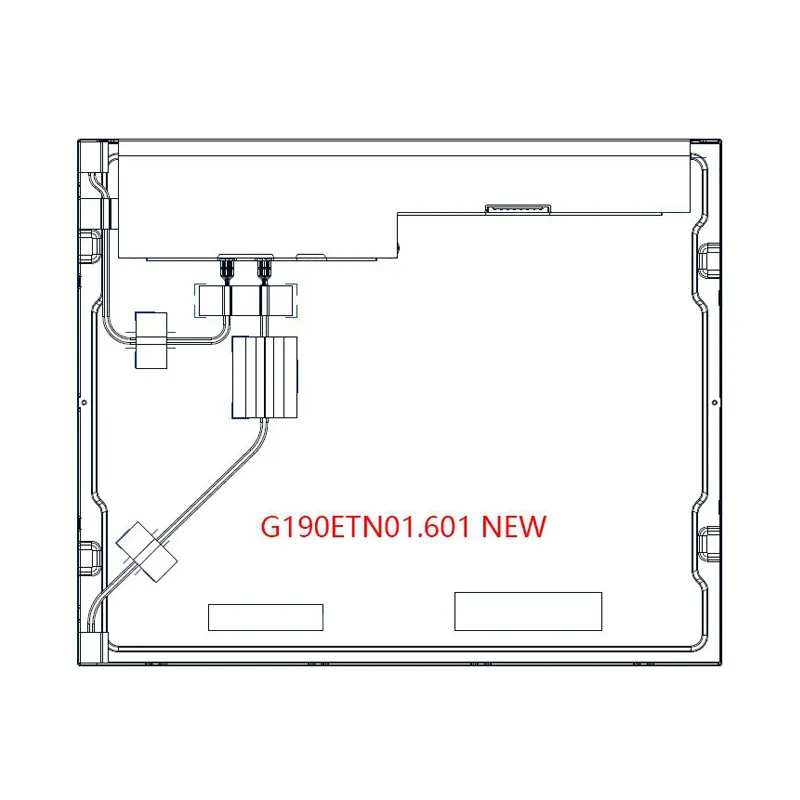

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 19-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G190ETN01.601?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G190ETN01.601 compare with the BOE DV190E0M-N11?

    Both catalog listings show 19 inches, 1280 × 1024 and LVDS. The catalog lists −30 °C to +70 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV190E0M-N11

    Is the AUO G190ETN01.601 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
