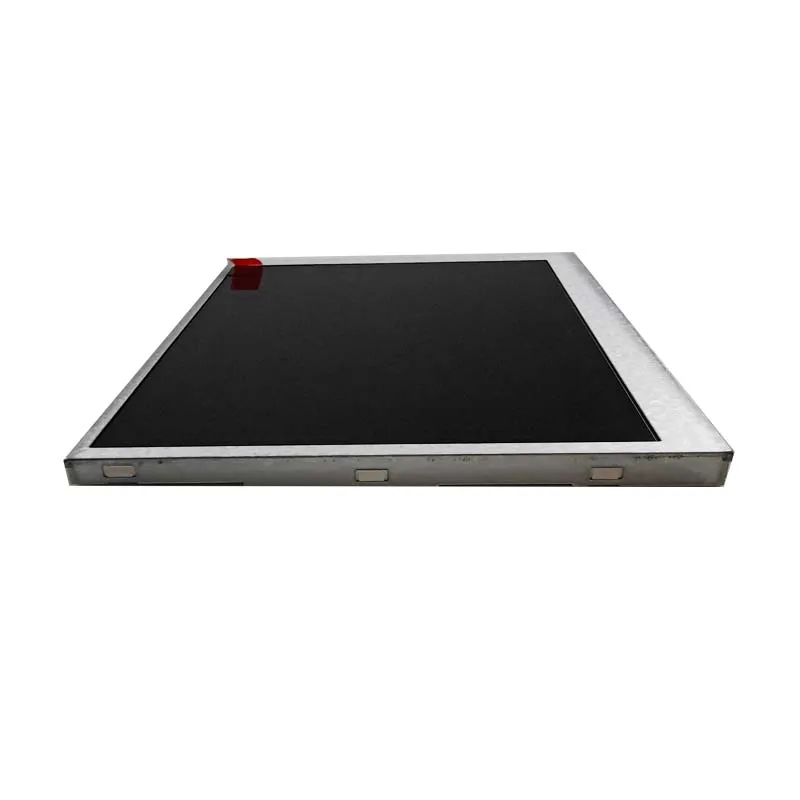

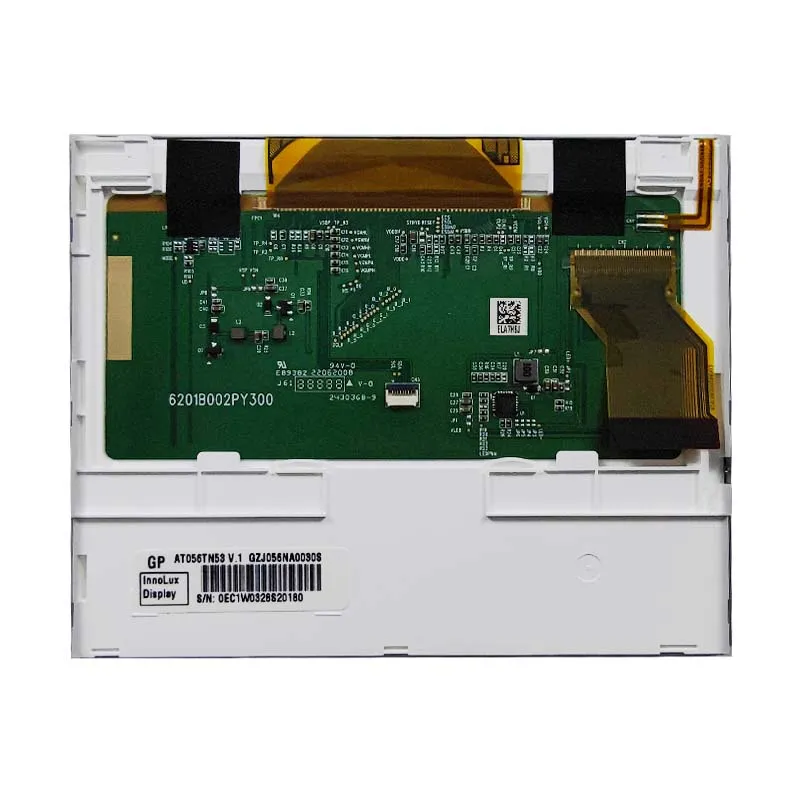

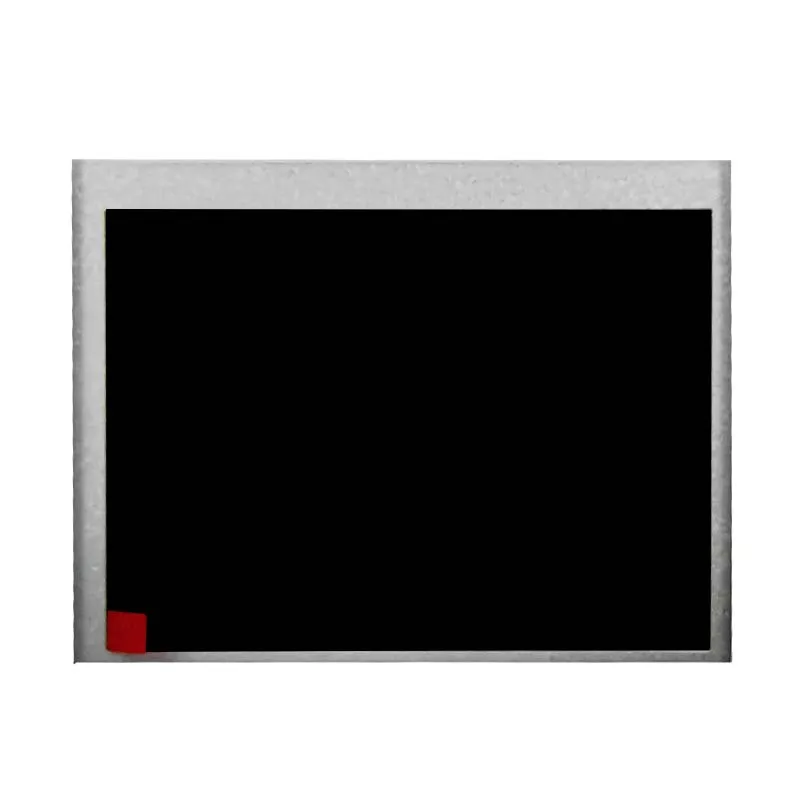

Innolux AT056TN53 V.1 5.6" 640×480 TN LCD | 500cd/m², 800:1 Contrast

SKU: DS50210
Tamaño:

Número de modelo

T056TN53 V.1

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Brillo (cd/m²):

500

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

Innolux AT056TN53 V.1 5.6" Ultra-Bright LCD: 800:1 Contrast, 500cd/m² for Sunlight Readability in Industrial & Medical Systems.

Solicitar precios por volumen







    Descripción

    AT056TN53 V.1 General Desription

    The Innolux AT056TN53 V.1 is a 5.6-inch TN color LCD engineered for high-stakes visibility. With a striking 800:1 contrast ratio and 500 cd/m² brightness, it delivers sharp, glare-resistant visuals even in direct sunlight. Built for industrial extremes, it operates flawlessly from -20°C to 70°C and features a rugged RGB interface for stable signal transmission. The 3.3V low-power design and compact outline (126.5×100×6mm) suit energy-sensitive embedded systems. Boasting a 20,000-hour LED lifespan and 70/70/50/70 viewing angles, this non-touch display excels in mission-critical applications demanding clarity, durability, and minimal maintenance.



    Aplicación y rendimiento

    Ideal for outdoor instrumentation, medical monitors, and heavy machinery interfaces, the AT056TN53 V.1 thrives under harsh conditions. Its 500 cd/m² brightness ensures readability in bright environments like solar farms or aviation dashboards, while the 800:1 contrast ratio enhances detail in low-light medical imaging or underground mining systems. The wide temperature range supports Arctic logistics displays or desert IoT terminals. With 3.3V efficiency, it powers portable diagnostic tools and battery-operated sensors. Designed without touch to avoid dust/water ingress, it’s perfect for food processing controls, maritime navigation panels, and industrial robots requiring fail-safe operation.

    5.6" Product Specifications

    Tamaño diagonal 5.6"
    Número de píxeles 640×480
    Luminancia 500
    Tamaño del módulo 126.5×100×6
    Área activa 112.896×84.672
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/50/70
    Interfaz RGB
    Relación de contraste 800:1
    Temperatura de funcionamiento -20~70℃
    Temperatura de almacenamiento -30~80℃
    Vida útil del LED 20000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3v
    Tipo de pantalla TFT en color

    Innolux LCD Display Soluciones a Medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux AT056TN53 V.1 5.6-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux AT056TN53 V.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux AT056TN53 V.1?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux AT056TN53 V.1?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux AT056TN53 V.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    T056TN53 V.1

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Brillo (cd/m²):

    500

    Compatible con pantallas táctiles:

    Tipo de pantalla:
