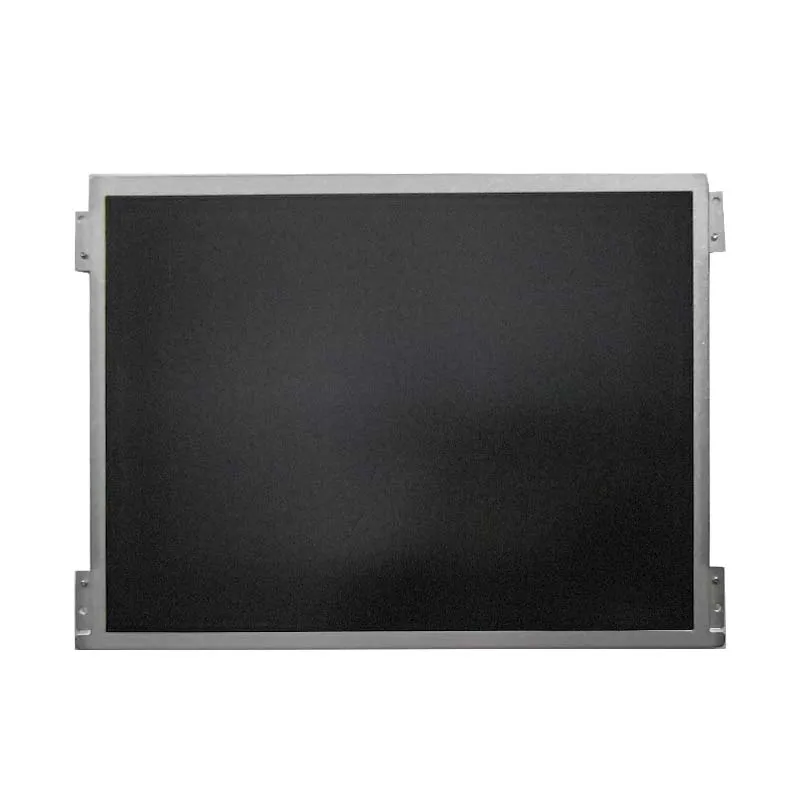

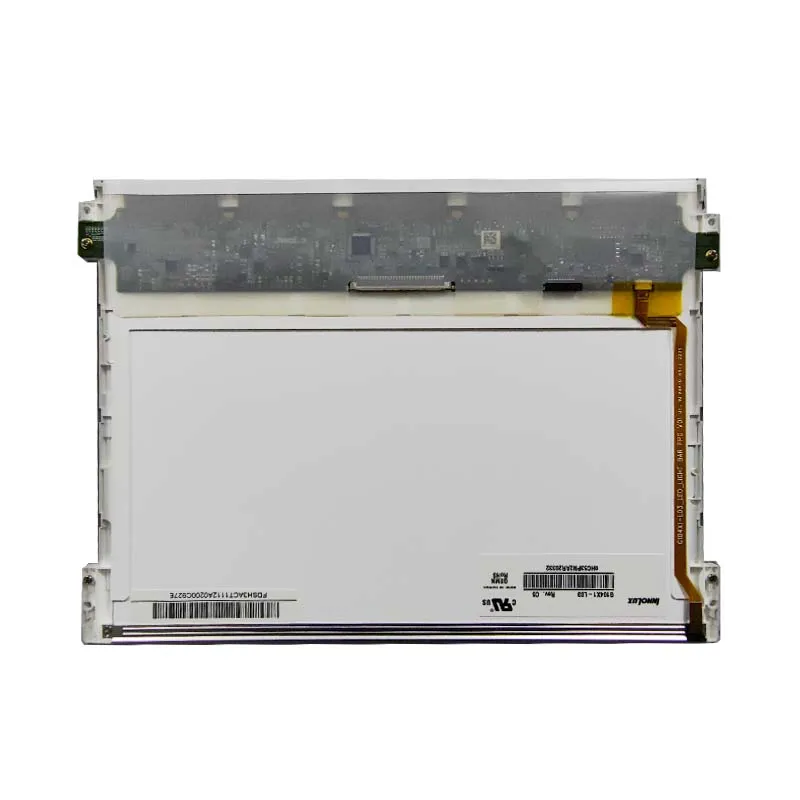

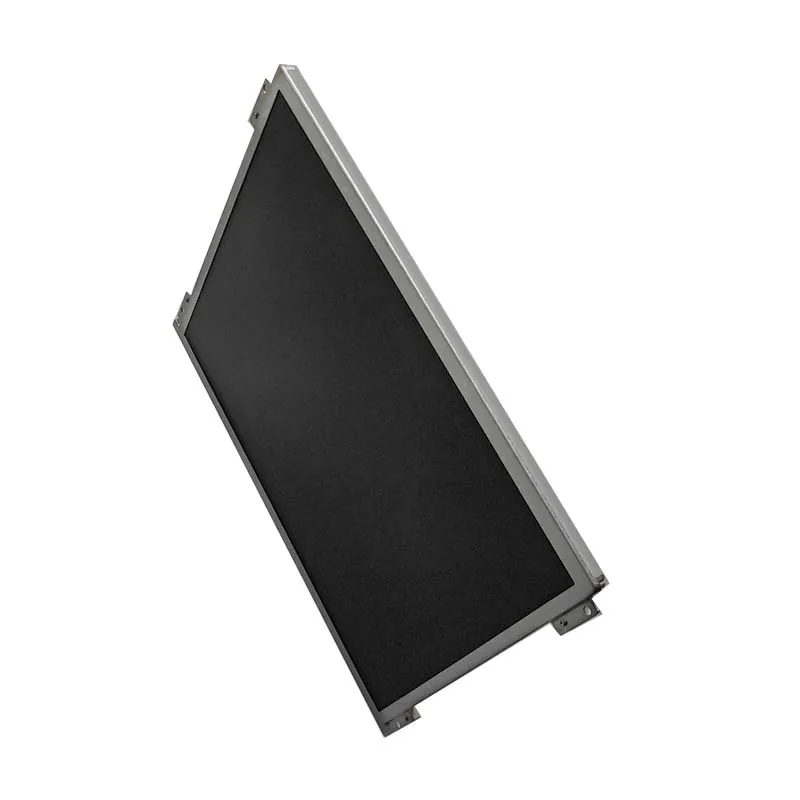

Innolux G104X1-L03 10.4 inch IPS LCD 1024×768 Resolution Industrial-Grade with LVDS Interface

SKU: DS50235
Tamaño:

Número de modelo

G104X1-L03

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

Innolux G104X1-L03 10.4 inch Ultra-Wide Angle IPS Display: 350nit Brightness, LVDS Interface | Built for Collaborative Robotics & Control Rooms.

Solicitar precios por volumen







    Descripción

    G104X1-L03 General Desription

    The Innolux G104X1-L03 10.4-inch IPS LCD delivers superior visual performance with 1024×768 resolution and 88°/88°/88°/88° ultra-wide viewing angles, ideal for multi-user environments. Boasting 1000:1 high contrast ratio and 350cd/m² brightness, it ensures color accuracy in medical imaging and control rooms. Its IPS technology maintains image consistency across extreme angles, critical for aviation dashboards and collaborative industrial robots. With ultra-thin 7.97mm profile (238.6×175.8mm) and 3.3V low-power design, it integrates seamlessly into space-constrained IoT devices. Rated for -20°C~70°C operation, this LVDS-interface display features 30,000-hour LED lifespan and anti-glare surface, perfect for 24/7 operation in high-precision manufacturing and outdoor digital signage applications.



    Aplicación y rendimiento

    Optimized for mission-critical systems, this display excels in surgical monitors, aircraft cockpit displays, and semiconductor inspection equipment. The IPS panel ensures color fidelity for color-matching in textile printing QC stations and graphic design tablets. Withstands temperature fluctuations in electric bus passenger information systems and smart grid substations. 1024×768 resolution supports detailed process visualization in pharmaceutical batch recorders and laboratory analyzers. Slim 7.97mm design enables integration into handheld logistics scanners and kiosk ticket machines. LVDS stability benefits railway traffic control panels and offshore drilling monitoring systems. IP65-rated optional version available for food processing HMIs and desert solar farm controllers.

    10.4" Product Specifications

    Tamaño diagonal 10,4 pulgadas
    Número de píxeles 1024×768
    Luminancia 400
    Tamaño del módulo 238.6×175.8×7.97
    Área activa 210.432×157.824
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 88/88/88/88
    Interfaz LVDS
    Relación de contraste 1000 : 1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -20 ~ 70 °C
    Vida útil del LED 30000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3V
    Tipo de pantalla TFT en color

    Innolux LCD Display Soluciones a Medida

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux G104X1-L03 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G104X1-L03?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G104X1-L03?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G104X1-L03 compare with the AUO G104XVN01.0?

    Both catalog listings show 10.4 inches, 1024 × 768 and LVDS. The catalog lists −20 °C to +70 °C for the Innolux panel and −30 °C to +80 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G104XVN01.0

    Is the Innolux G104X1-L03 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G104X1-L03

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
