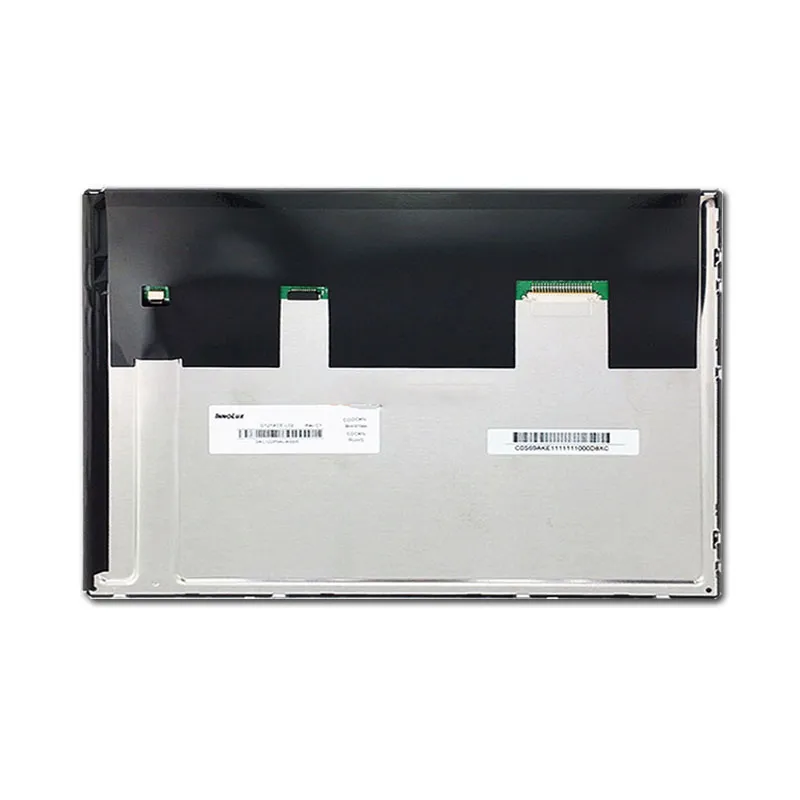

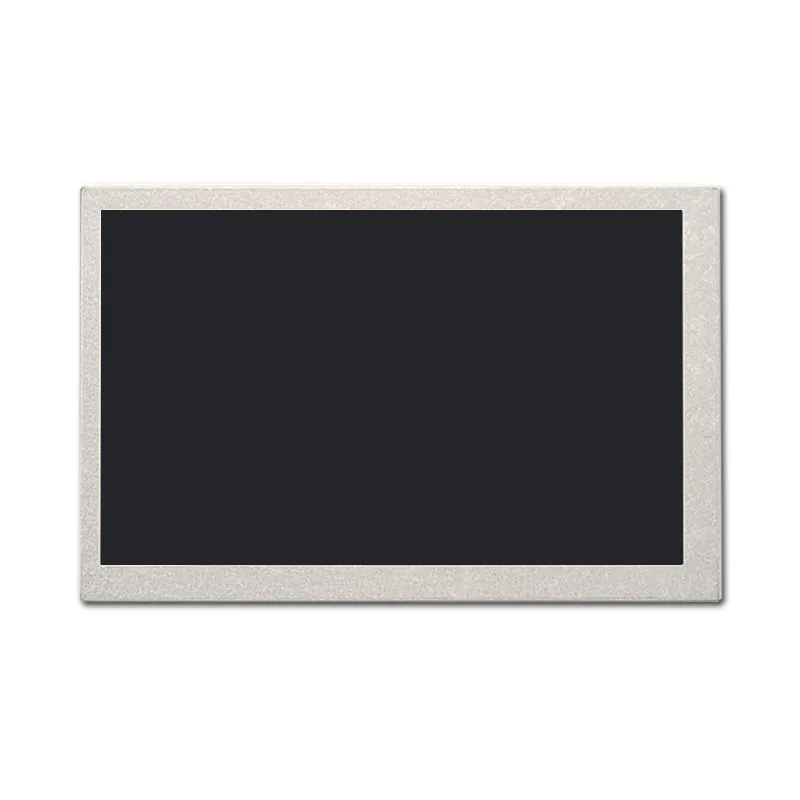

Innolux G121XCE-L01 12.1" IPS LCD Screen - 600nits, -30°C~85°C, LVDS

SKU: DS50195
Tamaño:

Número de modelo

G121XCE-L01

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~ 85℃

Brillo (cd/m²):

600

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

Innolux G121XCE-L01: 12.1" 1024x768 IPS LCD with 600nits brightness, -30°C~85°C operation, 50K-hour lifespan, LVDS interface. Ideal for industrial/outdoor displays.

Solicitar precios por volumen







    Descripción

    Innolux G121XCE-L01 General Description

    The Innolux G121XCE-L01 is a high-performance 12.1-inch industrial-grade LCD panel designed for demanding environments. Featuring a crisp 1024x768 resolution and advanced IPS technology, it delivers wide viewing angles (178° H/V) and exceptional color accuracy, ensuring clarity in diverse lighting conditions. With a remarkable 600nits brightness, this display excels in outdoor or high-ambient-light applications such as digital signage, transportation systems, and ruggedized equipment.
    Engineered for extreme reliability, the G121XCE-L01 operates seamlessly across a wide temperature range (-30°C to 85°C) and boasts a 50,000-hour lifespan, minimizing downtime and maintenance costs. Its LVDS interface ensures compatibility with industrial control systems and embedded devices, while robust construction supports resistance to vibration, shock, and moisture (optional configurations available).



    G121XCE-L01 IPS LCD Screen Application

    Factory automation, outdoor digital signage, and medical equipment.
    Customizable for OEM/ODM projects with optional anti-glare coatings or EMI shielding.

    12.1" TFT-LCD Product Specifications

    Número de modelo G121XCE-L01
    Talla 12.1
    Resolución 1024(RGB)×768
    Contorno Dimensión 260.5×204×8.4
    Área activa 245.76×184.32
    Brillo(cd/m²) 600
    Interfaz LVDS
    Ver Dirección IPS
    Temperatura de funcionamiento -30~85
    Temperatura de almacenamiento -30~85
    Vida útil del LED 50000
    Soporte de pantalla táctil Sin
    Relación de contraste 1000:1
    Fuente de alimentación 3.3V
    Tipo de pantalla LCD en color

    12.1" TFT LCD Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Personalización de la interfaz LCD

    Seleccione entre una amplia gama de opciones de interfaz o consulte a nuestros expertos para encontrar la ideal para su proyecto. Podemos integrar HDMI, USB, SPI, VGA y más en su pantalla, ayudándole a cumplir sus objetivos de diseño de forma eficiente.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Innolux G121XCE-L01 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G121XCE-L01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G121XCE-L01?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G121XCE-L01 compare with the IVO M121GNX2 R1?

    Both catalog listings show 12.1 inches, 1024 × 768 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −30 °C to +80 °C for the IVO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare IVO M121GNX2 R1

    Is the Innolux G121XCE-L01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    G121XCE-L01

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~ 85℃

    Brillo (cd/m²):

    600

    Compatible con pantallas táctiles:

    Tipo de pantalla:
