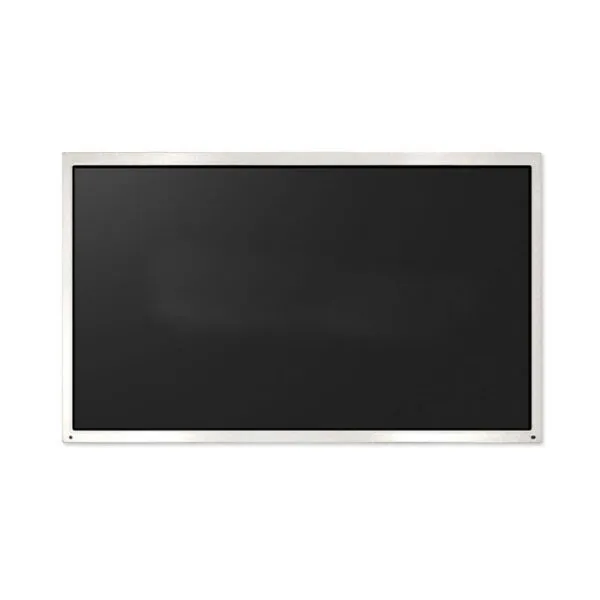

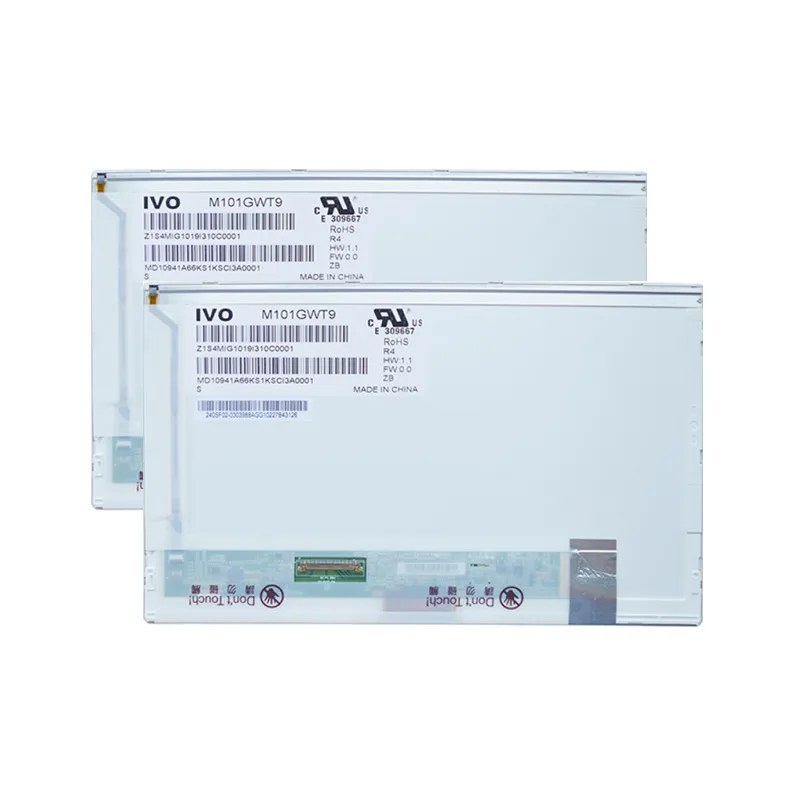

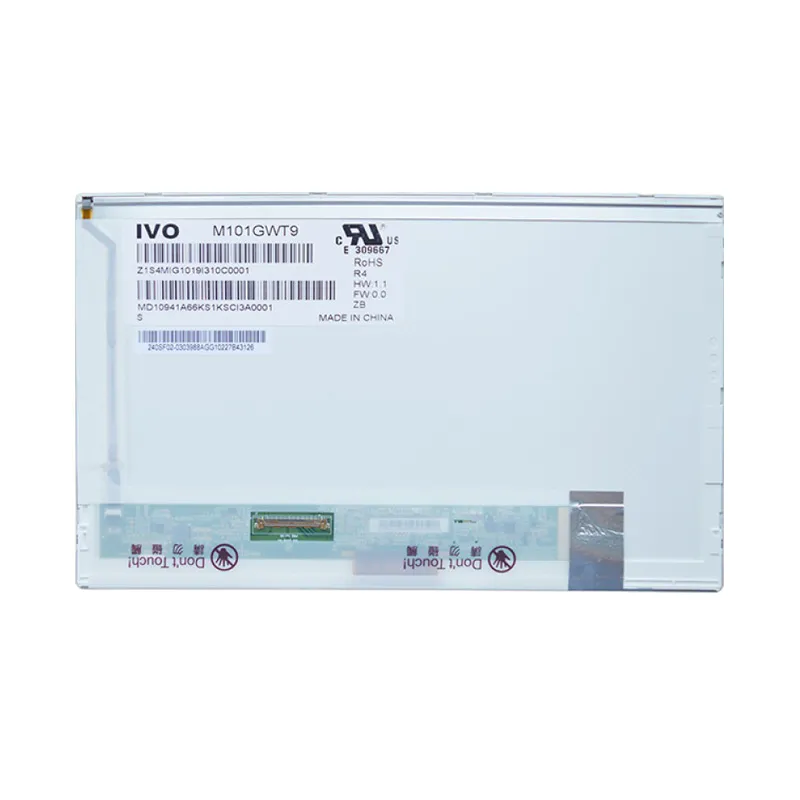

IVO M101GWT9 R4 10.1 inch High Brightness Industrial LCD Display LVDS Interface Wide Temperature Range

SKU: DS50260
Tamaño:

Número de modelo

M101GWT9

Resolución:

Interfaz:

Temperatura de funcionamiento:

-0℃~60℃

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

IVO m101gwt9 r4 Rugged 10.1 inch LVDS LCD for Industrial Harsh Environments 350cd/m² Brightness Industrial Display.

Solicitar precios por volumen







    Descripción

    M101GWT9 R4 General Desription

    The IVO M101GWT9 R4 is a 10.1-inch color LCD display engineered for demanding environments. With a resolution of 1024×600 and 350 cd/m² brightness, it ensures crisp visibility even under direct light. Its TN panel with 500:1 contrast ratio delivers reliable performance, while the LVDS interface guarantees stable signal transmission. Designed for industrial resilience, it operates seamlessly in temperatures from -0°C to 50°C and supports a 30,000-hour LED lifespan. The ultra-slim 5.2mm profile and 3.3V power supply make it ideal for space-constrained installations. Without touchscreen support, it prioritizes durability and cost-efficiency for fixed applications.



    Aplicación y rendimiento

    Perfect for industrial automation, POS systems, and embedded control panels, the M101GWT9 R4 excels in harsh conditions like factories, warehouses, and outdoor kiosks. Its wide operating temperature range ensures reliability in fluctuating climates, while the high brightness combats glare in sunlit areas. The LVDS interface minimizes electromagnetic interference, critical for precision machinery. Use it in medical devices, transportation dashboards, or IoT terminals where consistent performance and longevity are paramount.

    10.1" Product Specifications

    Tamaño diagonal 10,1 pulgadas
    Número de píxeles 1024×600
    Luminancia 350
    Tamaño del módulo 235×143×5.2
    Área activa 222.72×125.28
    Dirección de visualización TN
    Ángulo de visión (U/D/R/L) 70/70/70/70
    Interfaz LVDS
    Relación de contraste 500:1
    Temperatura de funcionamiento -0 ~ 50 °C
    Temperatura de almacenamiento -20 ~ 60 °C
    Vida útil del LED 30000
    Fuente de alimentación 3.3V
    Soporte de pantalla táctil Sin
    Tipo de pantalla TFT en color

    IVO LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    IVO M101GWT9 R4 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M101GWT9 R4?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M101GWT9 R4?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the IVO M101GWT9 R4?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the IVO M101GWT9 R4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M101GWT9

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -0℃~60℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:
