IVO M101GWWF R0 10.1 inch LVDS LCD Display 1280×800 Resolution -20°C~70°C Wide Temp Industrial Grade Durability

SKU: DS50261
Tamaño:

Número de modelo

M101GWWF

Resolución:

Interfaz:

Temperatura de funcionamiento:

-20℃~70℃

Compatible con pantallas táctiles:

Tipo de pantalla:

Recursos:

IVO m101gwwf r0 10.1 inch LVDS IPS Display with -20°C~70°C Operation for Extreme Environments Rugged 1280×800 LCD.

Solicitar precios por volumen







    Descripción

    M101GWWF R0 General Desription

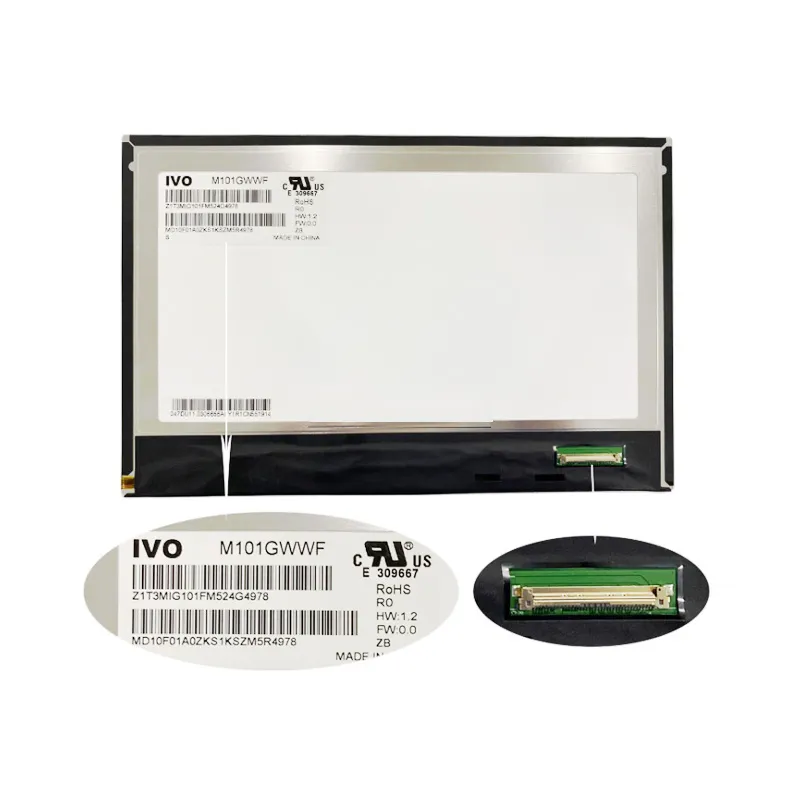

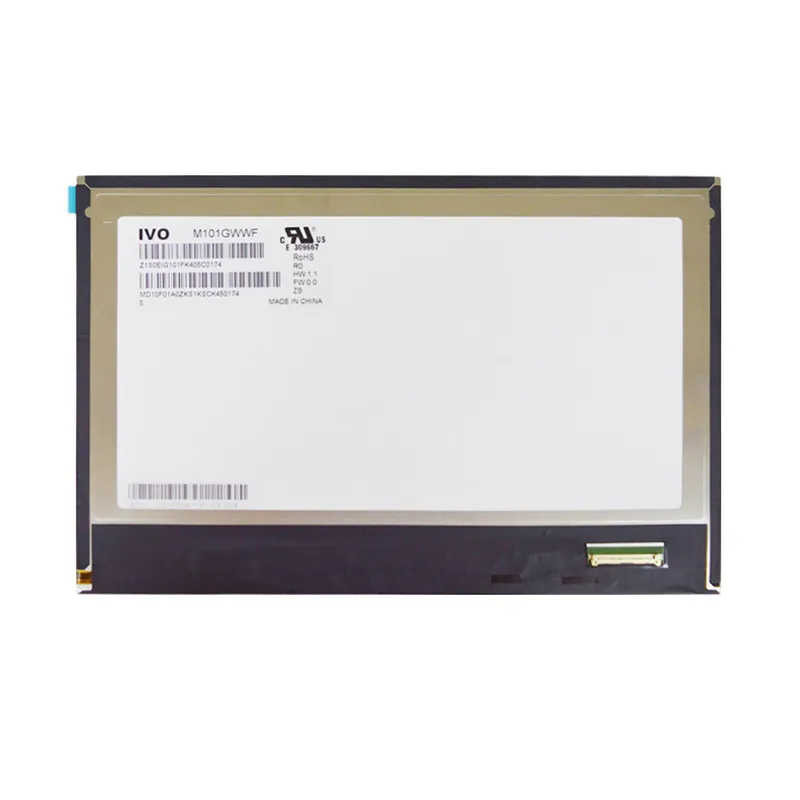

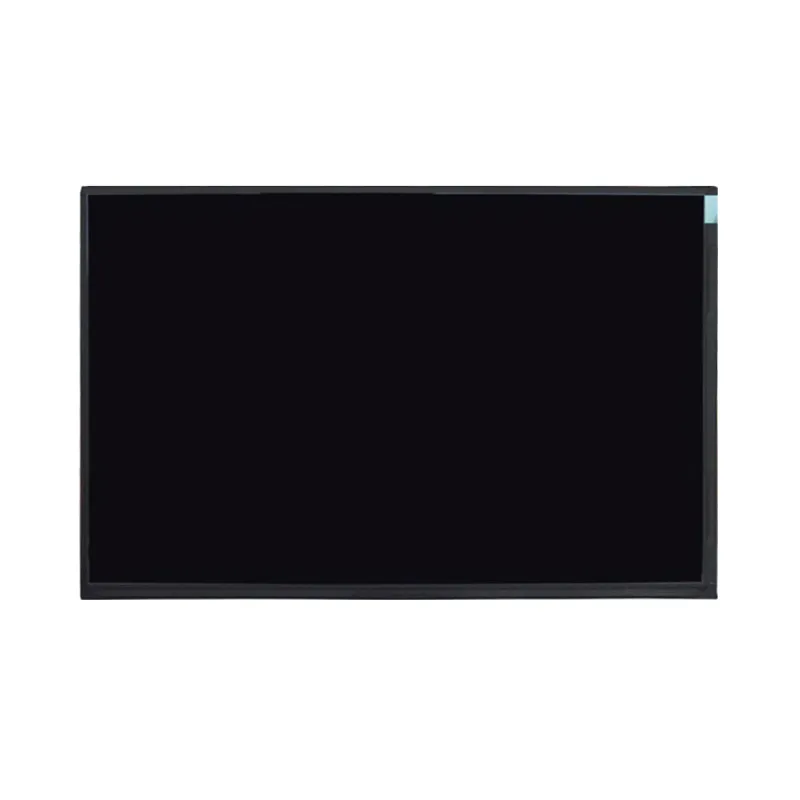

    The IVO M101GWWF R0 is a 10.1-inch color LCD screen featuring 1280×800 resolution and IPS technology for 85° wide viewing angles, ensuring uniform clarity. With 350 cd/m² brightness and an 800:1 contrast ratio, it delivers sharp visuals even in harsh lighting. Built for extreme environments, it operates reliably from -20°C to 70°C and withstands storage temperatures of -30°C~80°C. The LVDS interface ensures stable signal transmission, while the slim 4.56mm profile (229.46×149.1mm outline) suits space-limited setups. Powered by 3.3V, it offers energy efficiency and a 30,000-hour LED lifespan, minimizing downtime for 24/7 industrial applications.



    Aplicación y rendimiento

    Ideal for rugged industrial equipment, outdoor kiosks, and automotive displays, the IVO M101GWWF R0 excels in extreme conditions. Its wide temperature range supports freezer storage monitors, desert machinery, and cold-chain logistics systems. The LVDS interface ensures noise-resistant data transfer for factory automation, CNC panels, and heavy-duty HMI. The IPS panel’s anti-glare performance enhances readability under direct sunlight or bright LEDs, perfect for construction site dashboards or agricultural machinery. With a 30,000-hour lifespan and robust build, it reduces maintenance costs in mining, transportation, and energy sectors. Compact and durable, it integrates seamlessly into IoT devices, EV charging stations, and marine navigation systems.

    10.1" Product Specifications

    Tamaño diagonal 10,1 pulgadas
    Número de píxeles 1280×800
    Luminancia 350
    Tamaño del módulo 229.46×149.1×4.56
    Área activa 216.96×135.6
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 85/85/85/85
    Interfaz LVDS
    Relación de contraste 800 : 1
    Temperatura de funcionamiento -20 ~ 70 °C
    Temperatura de almacenamiento -30 ~ 80 °C
    Vida útil del LED 30000
    Fuente de alimentación 3.3V
    Soporte de pantalla táctil Sin
    Tipo de pantalla TFT en color

    IVO LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    IVO M101GWWF R0 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M101GWWF R0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M101GWWF R0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the IVO M101GWWF R0 compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −20 °C to +70 °C for the IVO panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the IVO M101GWWF R0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M101GWWF

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -20℃~70℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:

    Soluciones de exposición personalizadas

    Trabaje con nuestros expertos en ingeniería para crear la pantalla perfecta para su aplicación.
