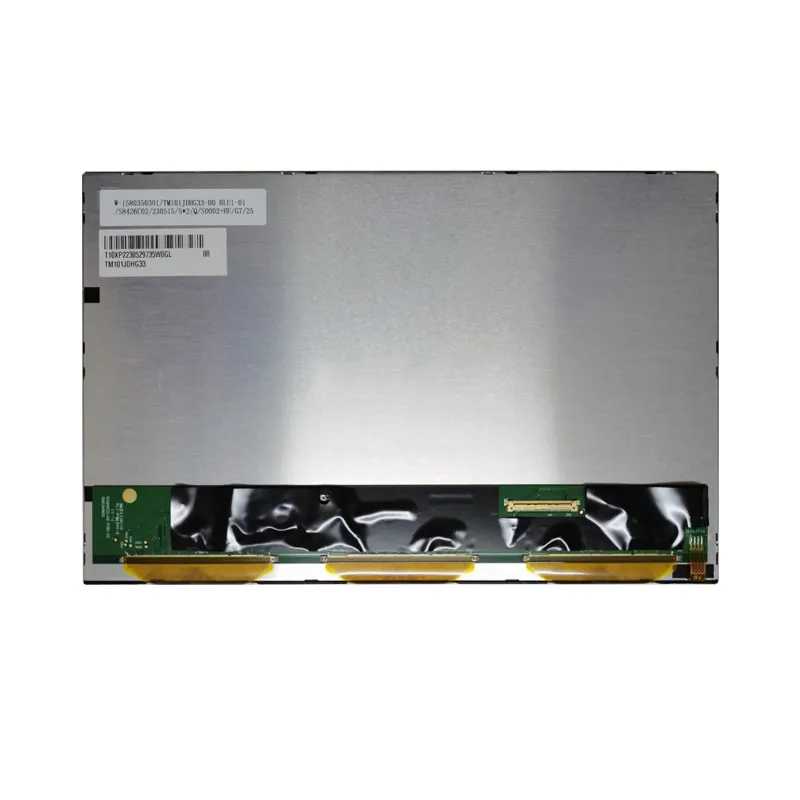

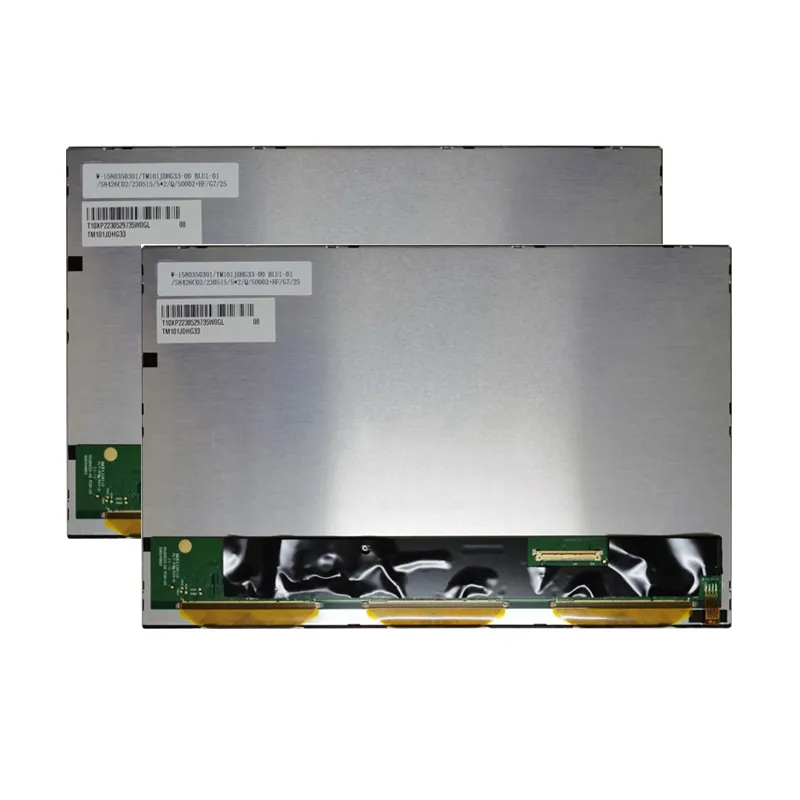

TIANMA TM101JDHG33-00 10.1 inch Ultra-Bright IPS Screen LCD with 1280×800 Resolution for Extreme Environments

SKU: DS50249
Tamaño:

Número de modelo

M101JDHG33-00

Resolución:

Interfaz:

Temperatura de funcionamiento:

-30℃~80℃

Compatible con pantallas táctiles:

Tipo de pantalla:

TIANMA tm101jdhg33-00 900cd/m² Ultra-Bright IPS LCD Display for Sunlight Use – 1280×800 & -40°C~80°C Endurance.

Solicitar precios por volumen







    Descripción

    TM101JDHG33-00 General Desription

    The TIANMA TM101JDHG33-00 is a 10.1-inch IPS LCD module featuring 1280×800 high resolution and 900 cd/m² ultra-high brightness, designed for applications demanding sunlight readability and wide viewing angles. Its IPS panel ensures consistent 85/85/85/85 viewing angles and 700:1 contrast ratio, delivering vivid visuals even in harsh lighting. Built for extreme durability, it operates in -30°C to 80°C and stores in -40°C to 80°C, supported by a 40,000-hour LED lifespan. The LVDS interface guarantees stable signal transmission for industrial systems, while the 3.3V low-power design reduces energy consumption. With a slim 229.8×149×9.6mm profile, it excels in rugged and space-sensitive installations.



    Aplicación y rendimiento

    Ideal for outdoor military displays, aviation cockpit panels, and maritime navigation systems, this display thrives in direct sunlight for solar power plant controls and desert logistics terminals. The 900 cd/m² brightness ensures clarity in airport runway signage and mining equipment HMIs, while its IPS technology suits medical imaging monitors and surgical equipment displays. The extended temperature range supports Arctic oilfield sensors and automotive test chamber dashboards. Compatible with industrial automation via LVDS, it powers smart grid control panels, robotic vision systems, and EV charging station interfaces. Perfect for public transport infotainment, emergency response vehicles, and high-altitude weather stations requiring unmatched reliability.

    10.1" Product Specifications

    Tamaño diagonal 10,1 pulgadas
    Número de píxeles 1280×800
    Luminancia 900
    Tamaño del módulo 229.8×149×9.6
    Área activa 216.96×135.6
    Dirección de visualización IPS
    Ángulo de visión (U/D/R/L) 85/85/85/85
    Interfaz LVDS
    Relación de contraste 700:1
    Temperatura de funcionamiento -30 ~ 80 °C
    Temperatura de almacenamiento -40 ~ 80 °C
    Vida útil del LED 40000
    Soporte de pantalla táctil Sin
    Fuente de alimentación 3.3V
    Tipo de pantalla TFT en color

    TIANMA LCD Display Custom Solutions

    Optimice sus soluciones de cableado

    Ajuste la longitud, la posición y el pinout de sus cables, o añada conectores adicionales para mejorar la funcionalidad. Obtenga una solución de cable personalizada diseñada para agilizar sus conexiones y garantizar un rendimiento seguro y fiable.

    Modificaciones de PCB

    Elija entre una gran variedad de variaciones en la forma de la placa de circuito impreso, el tamaño, la disposición de las patillas y los componentes para que se adapte totalmente a su aplicación.

    Mejore la experiencia del usuario con la tecnología de pantalla táctil

    Mejore su experiencia de usuario con tecnología de pantalla táctil capacitiva o resistiva. Personalizaremos el grosor del cristal y la forma del panel táctil para garantizar un ajuste perfecto a sus requisitos de diseño.

    custom touch

    Tapa de cristal a medida

    Equipe su pantalla con una cubierta de cristal cortada a medida para aumentar la durabilidad y el rendimiento. Elija entre varios grosores y opte por la adhesión óptica para protegerla de la humedad y la suciedad, garantizando una solución duradera y fiable.

    Tianma TM101JDHG33-00 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM101JDHG33-00?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Tianma TM101JDHG33-00?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Tianma TM101JDHG33-00 compare with the AUO G101EAN02.1?

    Both catalog listings show 10.1 inches, 1280 × 800 and LVDS. The catalog lists −30 °C to +80 °C for the Tianma panel and −20 °C to +60 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G101EAN02.1

    Is the Tianma TM101JDHG33-00 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Información complementaria

    Tamaño:

    Número de modelo

    M101JDHG33-00

    Resolución:

    Interfaz:

    Temperatura de funcionamiento:

    -30℃~80℃

    Compatible con pantallas táctiles:

    Tipo de pantalla:
