10.1 inch Industrial LCD Panel 1280*800 16:10 with Touch

UGS : DS30021
Taille :

Résolution :

Interface :

, , , ,

Prise en charge de l'écran tactile :

abc

10.1 inch Industrial LCD Panel, offer resolution 1280*800, with capacitive touch screen, Standard HDMI/VGA display, Other Interface can be customized.

Demande de tarification au volume







    Description

    10.1 inch Industrial LCD Panel main features:

    • Original capacitive touch screen, high resolution, fingertip light touch, 3ms can quickly respond to high-speed transmission reaction, one-time correction, strong stability, strong anti-interference.
    • HDMI+VGA standard interface, we support interface customization and expansion
    • Multi-hole heat dissipation body, the back shell adopts multi-hole heat dissipation design, which can effectively and timely dissipate heat, so that the machine can work normally and stably for a long time
    • EMC anti-interference ability, electromagnetic ring anti-interference electrical components are installed, and the whole machine meets the EMC anti-electromagnetic interference standard

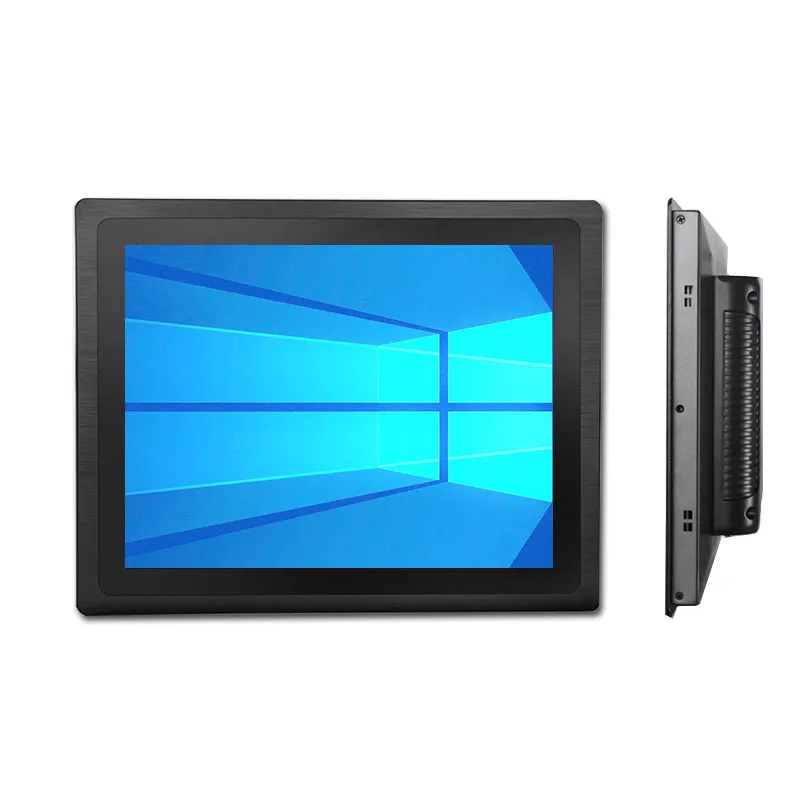

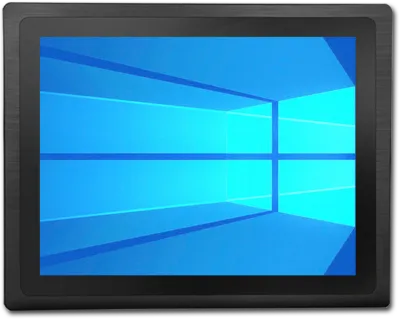

    10.1 inch industrial monitors



    10.1 inch Industrial LCD Panel Specification

    Écran LCD Taille 10.1" Display solution configuration specifications
    Display area 216.96*135.6mm Interface VGA*1
    Résolution 1280*800 HDMI*1
    Dot pitch 0.1695*0.1695mm Audio*1
    Display ratio 16:10 USB*1 for touch
    Viewing angle (L/R/U/D) 80°/80°/70°/80°(Typ.) Alimentation électrique DC 12V(optional DC 9-36V wide voltage, Phoenix terminal interface)
    Rapport de contraste 600:1 Performance Industrial-grade motherboard, solid-state capacitor, anti-interference, anti-surge
    Couleur 16.2M Packing List Monitor*1
    Response time 30ms HDMI data cable*1
    Luminosité 350cd/m2 Instruction manual*1
    Écran tactile Touch type Capacitive touch (G+G), ILITEK solution Dual male USB cable*1
    Number of supported points 10 point Adapter*1
    Touch mode Finger touch Power Consumption Rated power ≤14W
    Surface hardness ≥6H Standby power ≤0.5W
    Response time <3ms Rated voltage 100-240V (50/60Hz)
    Transmittance ≥85% Environnement Storage temperature and humidity: -20~60℃, 20~85RH, no condensation
    Service life >50 million times Working temperature and humidity: 0~50℃, 20~85RH, no condensation
    Linear error ≤2.5mm
    Haze 3%(Max)
    Châssis Appearance size 293*194*52.3mm
    Opening size 274.5*174.5mm
    Touch step thickness 3mm
    Wall mounting hole position 100*100mm
    Poids net 2.3KG
    Gross weight 3KG
    Packing size 390*330*135mm

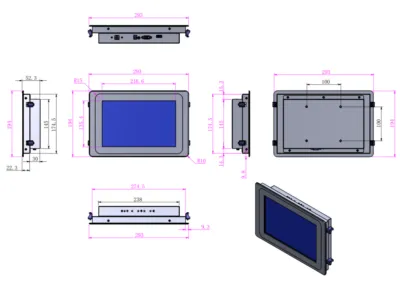

    Dimensions du produit 10.1 inch industrial HDMI display

    Télécharger

    10.1-Inch 1280 × 800 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 10.1-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed VGA interface, confirm the source timing and check the image at the mode and cable length you intend to use.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1280 × 800 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
